RIGHT HANDLE SWITCH (MODEL F/G/H)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

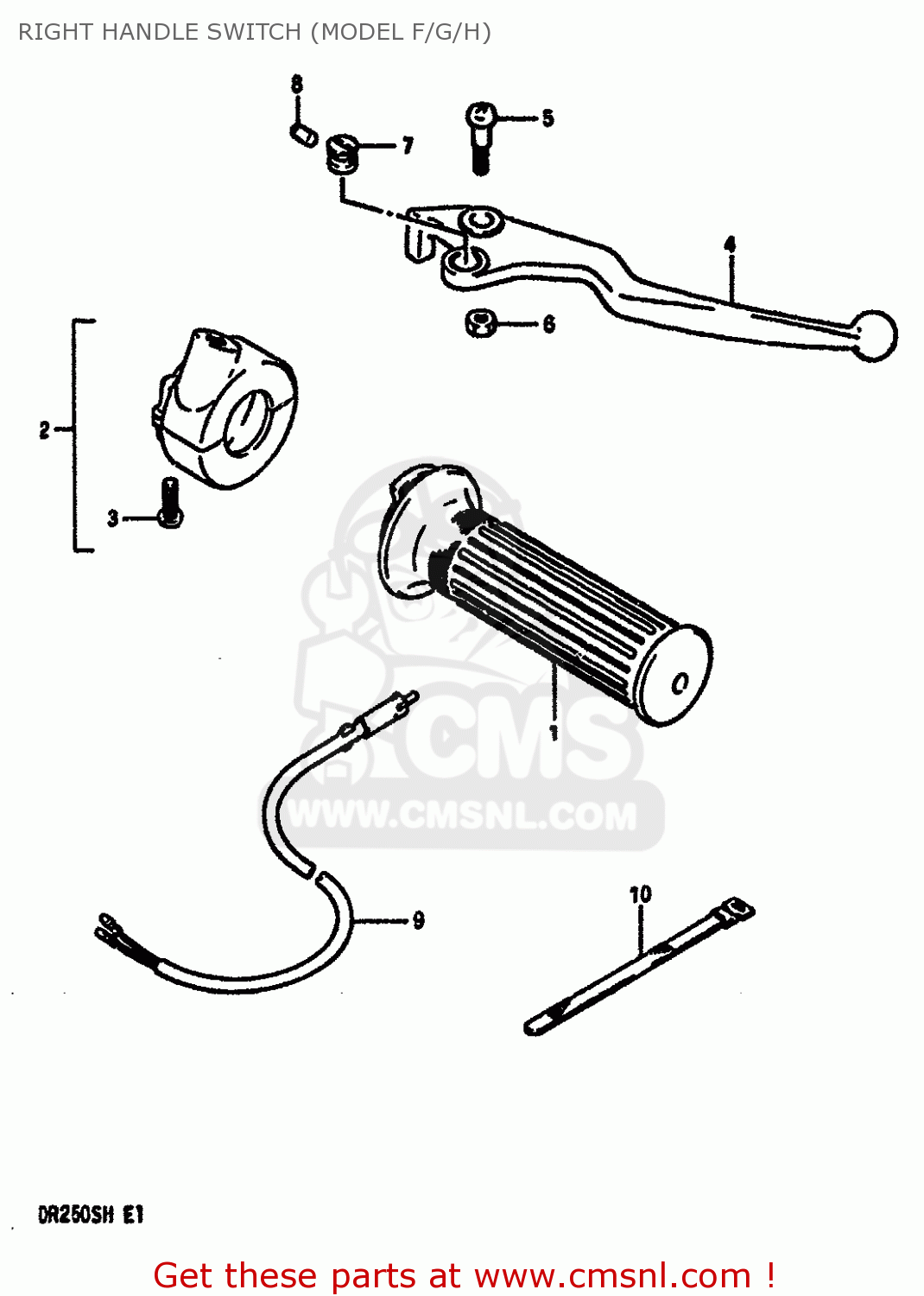

Right handle switch (model f/g/h) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

5711037200
ref: 1

GRIP,THROTTLE

€ 20.50

5710037400
ref: 2

CASE ASSY,THROTTLE

€ 52.50

0211205208
ref: 3

SCREW 5X20

€ 3.00

5742113A10
ref: 4

LEVER,BRAKE

€ 19.50

5743113010
ref: 5

SCREW

€ 5.50

0831921068
ref: 6

NUT 6MM

€ 2.00

5744313A00
ref: 7

ADJUSTER

€ 8.00

5744413A00
ref: 8

ROD,PUSH

€ 6.50

5746013000
ref: 9
E4,E15,E18,E21,E22,E

SWITCH ASSEMBLY

€ 18.00

0940712402
ref: 10

CLAMP(L:120)

€ 3.00
