REAR COMBINATION LAMP (E22)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

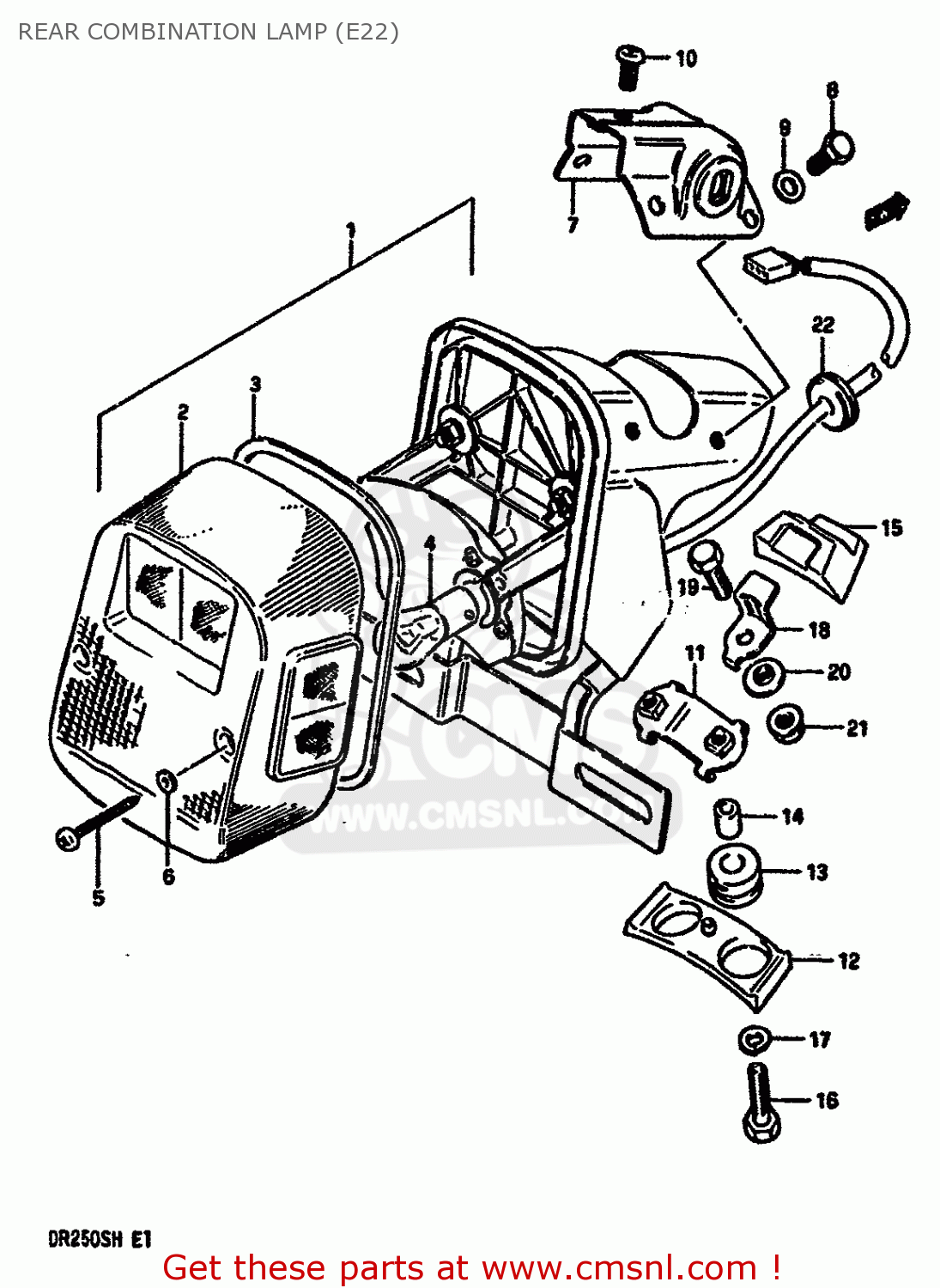

Rear combination lamp (e22) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

REAR COMBINATION LAMP (E22) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

REAR COMBINATION LAMP (E22) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3571038290
ref: 1-1
MODEL E/F

LAMP ASSY, REAR COMBINATION

€ 193.50

1-2

3571038291
ref: 1-2
MODEL G/H

LAMP ASSY,REAR COMBINATION

€ 193.50

2-1

3571238221
ref: 2-1
MODEL E/F

LENS,RR COMBI

€ 50.00

2-2

3571238282
ref: 2-2
MODEL G/H

LENS

€ 50.00

3

3571338210
ref: 3

GASKET (NAS)

€ 4.50

4

0947112046
ref: 4
EXECUTED LOCALLY

BULB(12V21/5W)

€ 1.50

5

0321104306
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3572738290
ref: 7

PLATE

€ 0.00

8

0110706125
ref: 8

BOLT

€ 2.00

9

0832221064
ref: 9

WASHER

€ 2.00

10

0214206125
ref: 10

SCREW 6X12

€ 2.00

11

3571638210
ref: 11

PLATE

€ 11.50

12

3576538210
ref: 12

CUSHION

€ 3.50

13

3576530950
ref: 13

CUSHION

€ 18.00

14

3576638210
ref: 14

SPACER

€ 3.00

15

3571738210
ref: 15

CUSHION,REAR COMBINATION LAMP

€ 6.50

16

0110706306
ref: 16

BOLT

€ 2.50

17

0832121066
ref: 17

WASHER,LOCK

€ 2.00

18

3579337201
ref: 18

PLATE,RR COMBINATION LAMP

€ 2.00

19

0110706166
ref: 19

BOLT

€ 2.00

20

0916906025
ref: 20

WASHER,LOCK

€ 3.00

21

0831626066
ref: 21

NUT

€ 2.00

22

0930809004
ref: 22

GROMMET

€ 0.00
