OIL PUMP

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

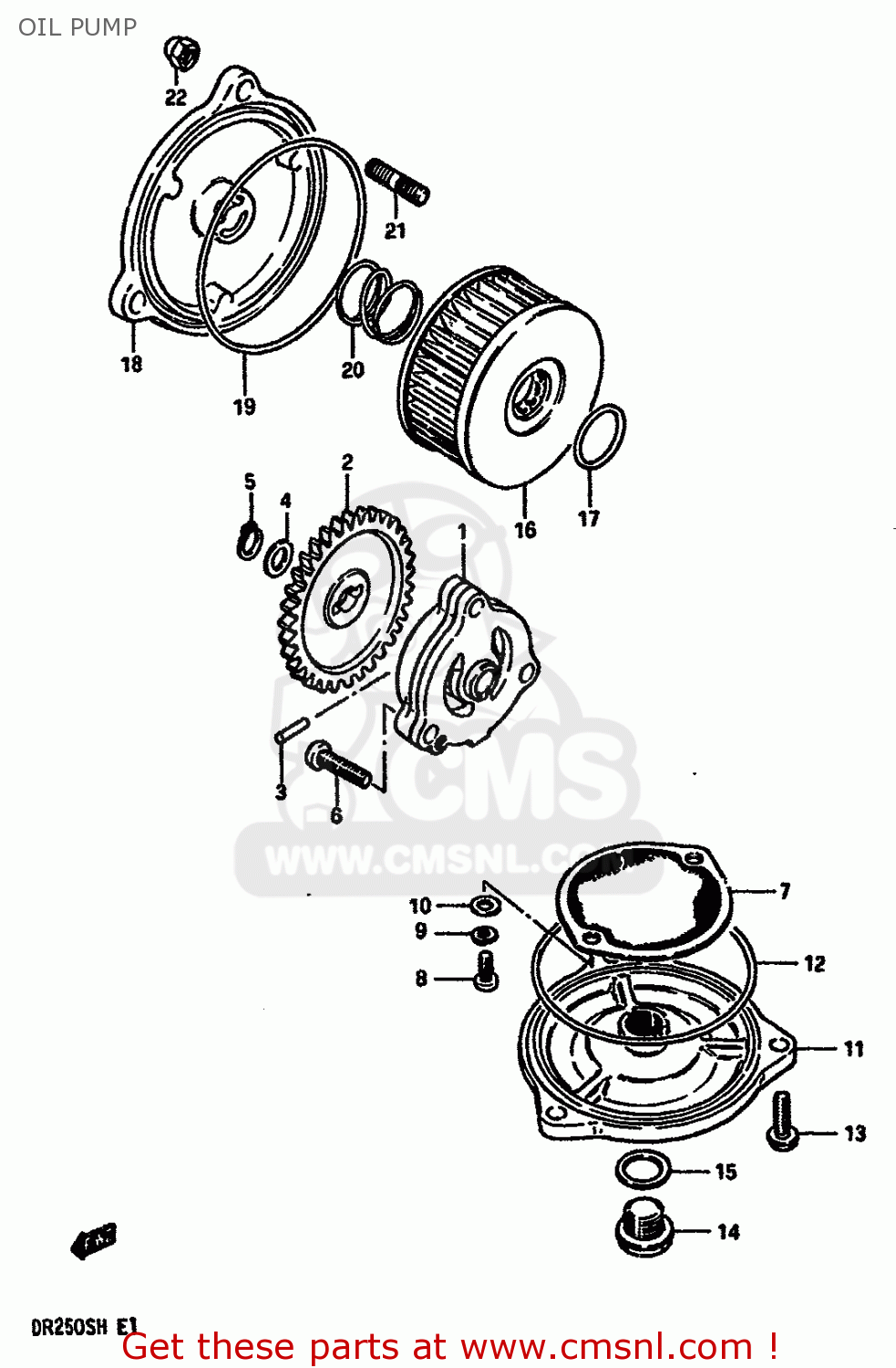

Oil pump diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

OIL PUMP DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

OIL PUMP DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1

1640038200
ref: 1

PUMP ASSY,ENGINE OIL

€ 164.50

2

1633138200
ref: 2

GEAR,OIL PUMP DRIVEN(NT:33)

€ 31.00

3

0926104009
ref: 3

PIN(4X15.8)

€ 1.50

4

0822110185
ref: 4

SHIM

€ 2.00

5

0833131109
ref: 5

CIRCLIP

€ 2.00

6

0211206256
ref: 6

SCREW

€ 1.50

7

1652037400
ref: 7

STRAINER,ENGINE OIL

€ 7.00

8

0211205126
ref: 8

SCREW 5X12

€ 1.50

9

0832121056
ref: 9

LOCK WASHER

€ 3.00

10

0832221056
ref: 10

WASHER

€ 2.50

11

1652338200
ref: 11

CAP,OIL STRAINER

€ 36.00

12

0928082001
ref: 12

O RING(D:2.4,ID:85)

€ 6.50

13

0154706208
ref: 13

BOLT (6X20)

€ 2.50

14

0924714001
ref: 14

PLUG

€ 5.00

15

0916814004
ref: 15

GASKET(14X19.2X2) (NAS)

€ 2.50

16

1651038240
ref: 16

FILTER ASSY,ENGINE OIL

€ 7.50

17

0928016005
ref: 17

O RING(D:2.4,ID:15.8)

€ 1.50

18-1

1651238200
ref: 18-1
MODEL E

CAP,OIL FILTER

€ 23.50

18-2

1651238230
ref: 18-2
MODEL F/G/H

CAP,OIL FILTER

€ 23.50

19

0928072001
ref: 19

O RING(D:2.4,ID:73)

€ 5.00

20

0944021004
ref: 20

SPRING

€ 13.00

21

0142106128
ref: 21

STUD 6X12

€ 1.50

22

0831311065
ref: 22

NUT 6MM

€ 2.00
