REAR COMBINATION LAMP (E39)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

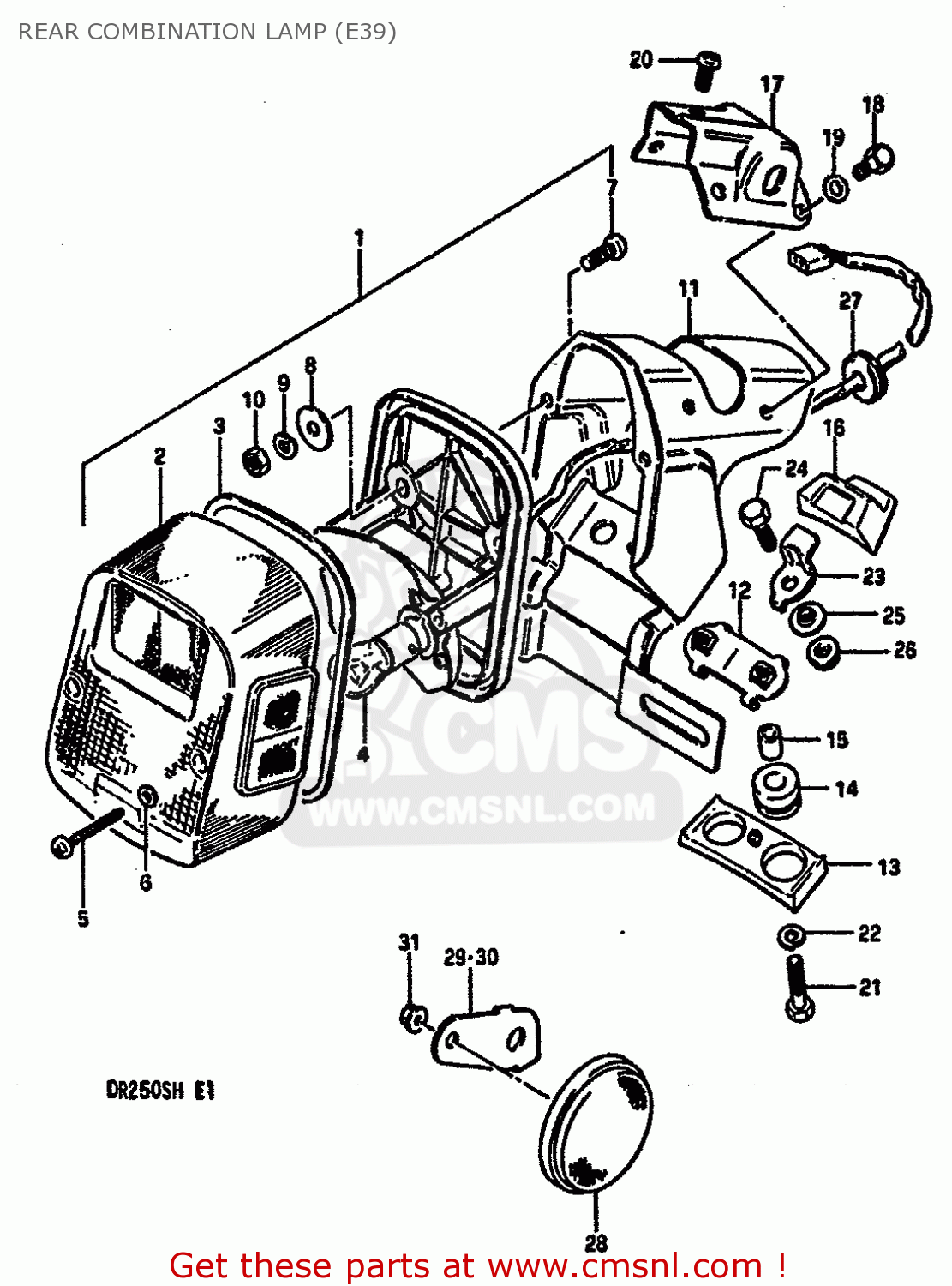

Rear combination lamp (e39) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

REAR COMBINATION LAMP (E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
REAR COMBINATION LAMP (E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
REAR COMBINATION LAMP (E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3572038251
ref: 1-1
MODEL E
LAMP UNIT,REAR COMBUSTION
€ 0.00
1-2
3572038281
ref: 1-2
MODEL F
LAMP UNIT, REAR COMBINATION
3572038281
€ 97.50
1-3
3572038282
ref: 1-3
MODEL G/H
LAMP UNIT,RR COMBNATION
€ 97.50
2-1
3571238251
ref: 2-1
MODEL E
LENS
€ 0.00
2-2
3571238221
ref: 2-2
MODEL F
LENS,RR COMBI
3571238221
€ 50.00
2-3
3571238282
ref: 2-3
MODEL G/H
LENS
3571238282
€ 50.00
3
3571338210
ref: 3
GASKET (NAS)
3571338210
€ 4.50
4
0947112057
ref: 4
BULB 12V21/5W
0947112057
€ 6.00
5
0321104308
ref: 5
SCREW
0321104308
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0211205165
ref: 7
SCREW
0211205165
€ 2.00
8
3572736510
ref: 8
WASHER,REAR COMBINATION LAMP
3572736510
€ 2.00
9
0832121057
ref: 9
LOCK WASHER
0832121057
€ 2.00
10
0831011058
ref: 10
NUT
0831011058
€ 2.50
11
3573038280
ref: 11
BRACKET UNIT
€ 0.00
12
3571638210
ref: 12
PLATE
3571638210
€ 11.50
13
3576538210
ref: 13
CUSHION
3576538210
€ 3.50
14
3576530950
ref: 14
CUSHION
3576530950
€ 18.00
15
3576638210
ref: 15
SPACER
3576638210
€ 3.00
16
3571738210
ref: 16
CUSHION,REAR COMBINATION LAMP
3571738210
€ 6.50
17
3572738280
ref: 17
PLATE
€ 0.00
18
0110706125
ref: 18
BOLT
€ 2.00
19
0832221064
ref: 19
WASHER
0832221064
€ 2.00
20
0214206125
ref: 20
SCREW 6X12
0214206125
€ 2.00
21
0110706306
ref: 21
BOLT
0110706306
€ 2.50
22
0832121066
ref: 22
WASHER,LOCK
0832121066
€ 2.00
23
3579337201
ref: 23
PLATE,RR COMBINATION LAMP
3579337201
€ 2.00
24
0110706166
ref: 24
BOLT
€ 2.00
25
0916906025
ref: 25
WASHER,LOCK
€ 3.00
26
0831626066
ref: 26
NUT
€ 2.00
27
0930809004
ref: 27
GROMMET
€ 0.00
28
3595014A00
ref: 28
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
29
3597538200
ref: 29
BRACKET,RH
€ 0.00
30
3597638200
ref: 30
BRACKET,LH
€ 0.00
31
0831616055
ref: 31
NUT ,5MM
€ 2.00
