HEADLAMP (E4,E15,E18,E21,E22,E25,E39)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

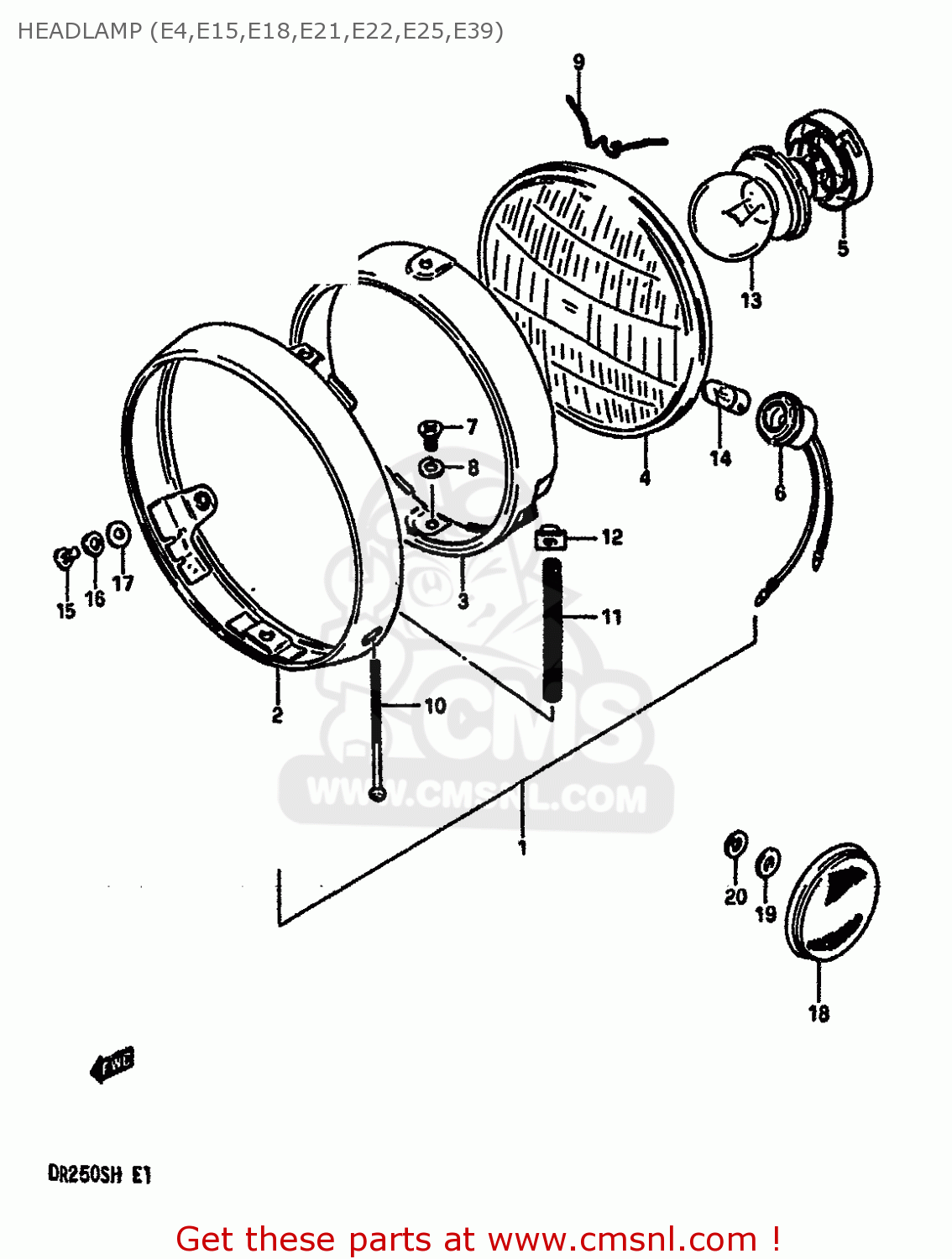

Headlamp (e4,e15,e18,e21,e22,e25,e39) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

HEADLAMP (E4,E15,E18,E21,E22,E25,E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
HEADLAMP (E4,E15,E18,E21,E22,E25,E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
HEADLAMP (E4,E15,E18,E21,E22,E25,E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3510038240999
ref: 1-1
E4
HEADLAMP ASSY
€ 0.00
1-2
3510038250999
ref: 1-2
E15,E18,E21,E22,E25,
HEADLAMP ASSY
€ 192.00
2
3511137130
ref: 2
RIM,HEADLAMP
3511137130
€ 23.00
3
3512729610
ref: 3
RETAINER
3512729610
€ 15.50
4
3512144260
ref: 4
LAMP UNIT
3512144260
€ 67.00
5
3513634670
ref: 5
SETTER,BULB
3513634670
€ 4.00
6
3611830500
ref: 6
SOCKET
3611830500
€ 10.00
7
3513629610
ref: 7
SCREW
3513629610
€ 3.00
8
0832121057
ref: 8
LOCK WASHER
0832121057
€ 2.00
9
3512846720
ref: 9
SPRING
3512846720
€ 4.50
10-1
3515131610
ref: 10-1
E4
SCREW
3515131610
€ 4.00
10-2
3515144260
ref: 10-2
E15,E18,E21,E22,E25,
SCREW
3515144260
€ 4.00
11
3515433630
ref: 11
SPRING
3515433630
€ 2.50
12
3515215611
ref: 12
NUT
3515215611
€ 3.50
13-1
0947112049
ref: 13-1
E4,EXECUTED LOCALLY
BULB (12V, 45/40W)
€ 0.00
13-2
0947112048
ref: 13-2
E15,E18,E21,E22,E25,
BULB(12V45/40W)
0947112048
€ 7.50
14
0947112063
ref: 14
EXECUTED LOCALLY
BULB(12V4W)
0947112063
€ 6.00
15
0211204124
ref: 15
SCREW
€ 1.50
16
0832121045
ref: 16
LOCK WASHER
€ 2.00
17
0832221045
ref: 17
WASHER
€ 5.00
18-1
3595030910
ref: 18-1
MODEL E E39
REFLEX REFLECTOR,FR
3595030910
€ 43.50
18-2
3595014A00
ref: 18-2
MODEL F/G/H E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
19
0832121057
ref: 19
E39
LOCK WASHER
0832121057
€ 2.00
20
0832221057
ref: 20
E39
WASHER
0832221057
€ 2.50
