FRONT MASTER CYLINDER (MODEL F/G/H)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

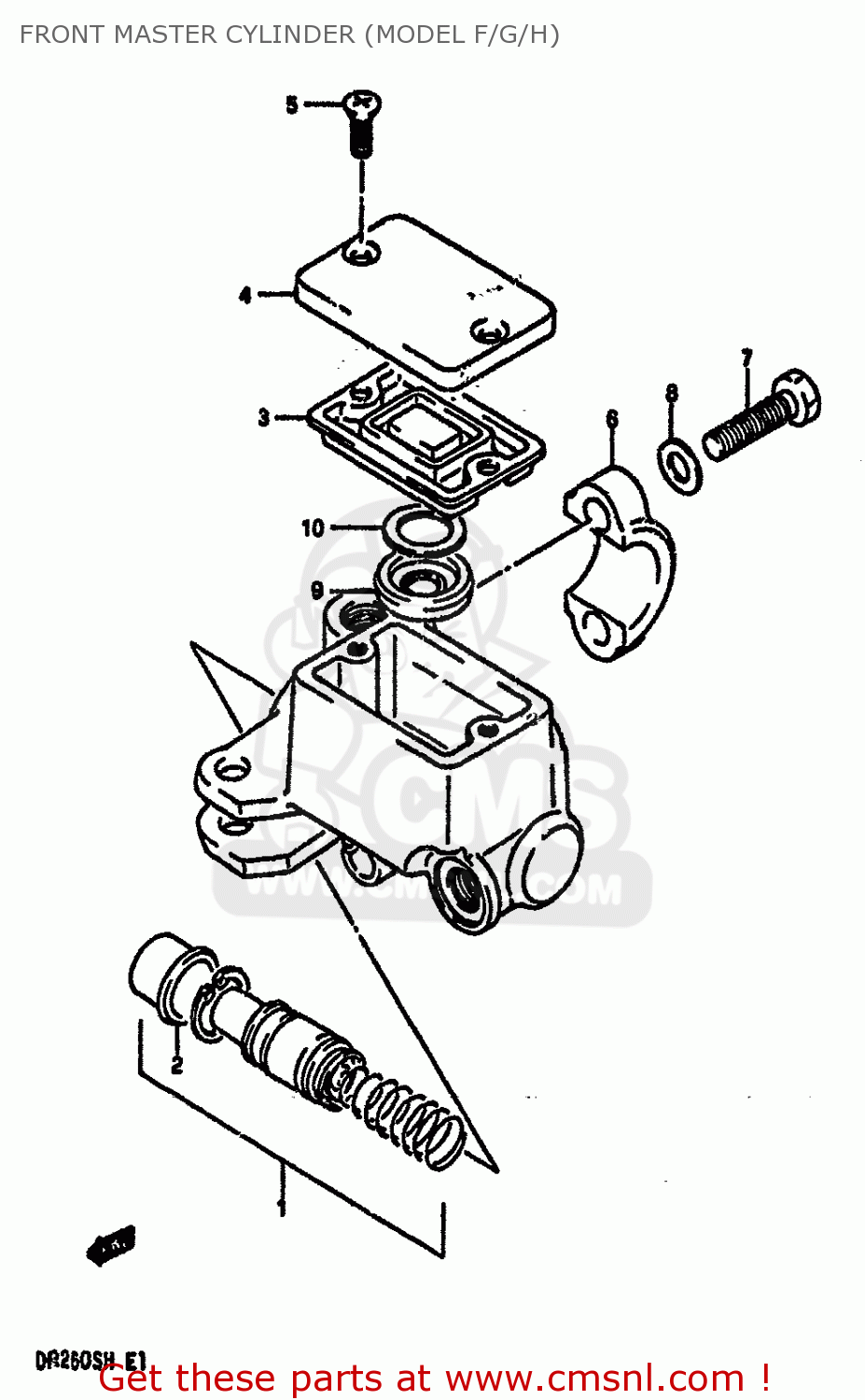

Front master cylinder (model f/g/h) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

FRONT MASTER CYLINDER (MODEL F/G/H) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
FRONT MASTER CYLINDER (MODEL F/G/H) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
FRONT MASTER CYLINDER (MODEL F/G/H) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
0
5960013A20
ref: 0
CYLINDER ASSEMBLY,FRONT MASTER
5960013A20
€ 191.50
1
5960013820
ref: 1
PISTON/CUP SET
5960013820
€ 40.50
2
5966644300
ref: 2
BOOT
5966644300
€ 6.00
3
5966704700
ref: 3
DIAPHRAGM
5966704700
€ 8.00
4
5966904710
ref: 4
CAP
5966904710
€ 12.00
5
6968949300
ref: 5
SCREW
6968949300
€ 1.50
6
5967136500
ref: 6
HOLDER
5967136500
€ 10.00
7
0110706255
ref: 7
BOLT
0110706255
€ 2.50
8
0832221064
ref: 8
WASHER
0832221064
€ 2.00
9
5974815400
ref: 9
SEPERATOR
5974815400
€ 7.50
10
5974915400
ref: 10
PLATE
5974915400
€ 2.00
