TRANSMISSION

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

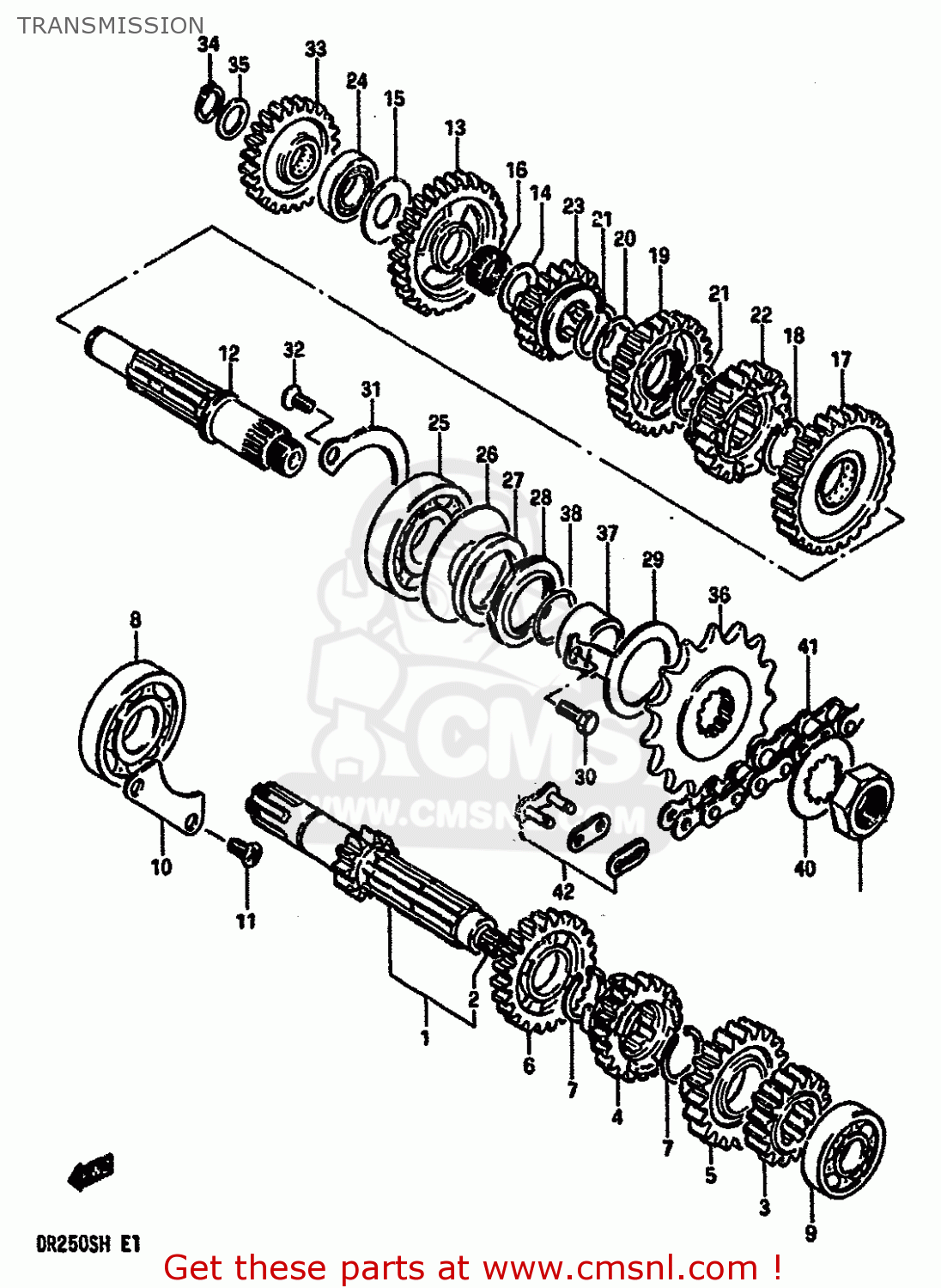

Transmission diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

TRANSMISSION DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
TRANSMISSION DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
TRANSMISSION DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
2412038201
ref: 1
SHAFT,COUNTER
€ 105.00
2
2412538201
ref: 2
BUSH
2412538201
€ 3.50
3
2422132412
ref: 3
GEAR,2ND DRIVE(NT:16)
2422132412
€ 89.50
4
2423138200
ref: 4
GEAR,THIRD DRIVE (NT:19)
€ 95.50
5
2424132400
ref: 5
GEAR,FOURTH DRIVE
2424132400
€ 57.00
6
2425132401
ref: 6
GEAR,FIFTH DRIVE
€ 82.50
7
0938022006
ref: 7
CIRCLIP
0938022006
€ 3.00
8
0926222014
ref: 8
BEARING
0926222014
€ 59.50
9
0926217018
ref: 9
BEARING
0926217018
€ 25.00
10
2474138200
ref: 10
RETAINER,CNTR SHAFT BEARING
2474138200
€ 4.50
11
0211206128
ref: 11
SCREW 6X12
0211206128
€ 2.00
12
2413038201
ref: 12
SHAFT,DRIVE
2413038201
€ 102.50
13
2431132401
ref: 13
GEAR,1ST DRIVEN(NT:29)
2431132401
€ 89.50
14
0821117281
ref: 14
WASHER
0821117281
€ 3.00
15
0821117363
ref: 15
WASHER
0821117363
€ 2.00
16
0926317004
ref: 16
BEARING(17X21X9.8)
0926317004
€ 7.00
17
2432032411
ref: 17
GEAR,2ND DRIVEN(NT:27)
€ 87.50
18
0938022006
ref: 18
CIRCLIP
0938022006
€ 3.00
19
2433038200
ref: 19
GEAR,THIRD DRIVEN
€ 74.00
20
0916722011
ref: 20
WASHER,LOCK
0916722011
€ 3.00
21
0938022006
ref: 21
CIRCLIP
0938022006
€ 3.00
22
2434138200
ref: 22
GEAR,FOURTH DRIVEN
€ 92.50
23
2435138200
ref: 23
GEAR,FIFTH DRIVEN
€ 84.50
24
0926417001
ref: 24
BEARING(17X36X12)
0926417001
€ 27.00
25
0926222013
ref: 25
BEARING(22X56X16)
0926222013
€ 58.00
26
0916035007
ref: 26
WASHER(35X55X1)
0916035007
€ 2.50
27
0928230003
ref: 27
OIL SEAL (30X43X5)
0928230003
€ 9.00
28
0928330040
ref: 28
OIL SEAL (30X43X7)
0928330040
€ 10.50
29
2475138201
ref: 29
RETAINER,DRIVE SHAFT OIL SEAL
2475138201
€ 8.00
30
0110706126
ref: 30
BOLT
€ 2.00
31
2475232400
ref: 31
RETAINER,DRIVE SHAFT BEARING
2475232400
€ 3.50
32
0212206128
ref: 32
SCREW
0212206128
€ 3.00
33
2626038200
ref: 33
GEAR,KICK STARTER IDLE(NT:24)
2626038200
€ 46.00
34
0938017001
ref: 34
CIRCLIP
0938017001
€ 2.00
35
0821117241
ref: 35
WASHER
0821117241
€ 2.00
36-1
2751132401
ref: 36-1
SPROCKET,ENGINE(NT:15)
2751132401
€ 19.00
36-2
2751137400
ref: 36-2
E2,E4,E15,E21,E22,E2
SPROCKET,ENGINE (NT:14)
2751137400
€ 26.00
37
2753132400
ref: 37
SPACER,ENGINE SPROCKET
2753132400
€ 14.50
38
0928021008
ref: 38
O RING(D:2.5,ID:21)
0928021008
€ 2.00
39
0914018008
ref: 39
NUT
0914018008
€ 4.50
40
0916722012
ref: 40
WASHER,LOCK
0916722012
€ 1.50
41-1
2760038230
ref: 41-1
CHAIN ASSEMBLY,DRIVE
€ 80.00
41-2
2760038230
ref: 41-2
E2,E4,E15,E18,E21,E2
CHAIN ASSEMBLY,DRIVE
€ 80.00
42
2762036111
ref: 42
JOINT ASSEMBLY,CHAIN
€ 8.50
