REAR WHEEL (E2,E4,E6,E15,E18,E21,E22,E25,E39)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

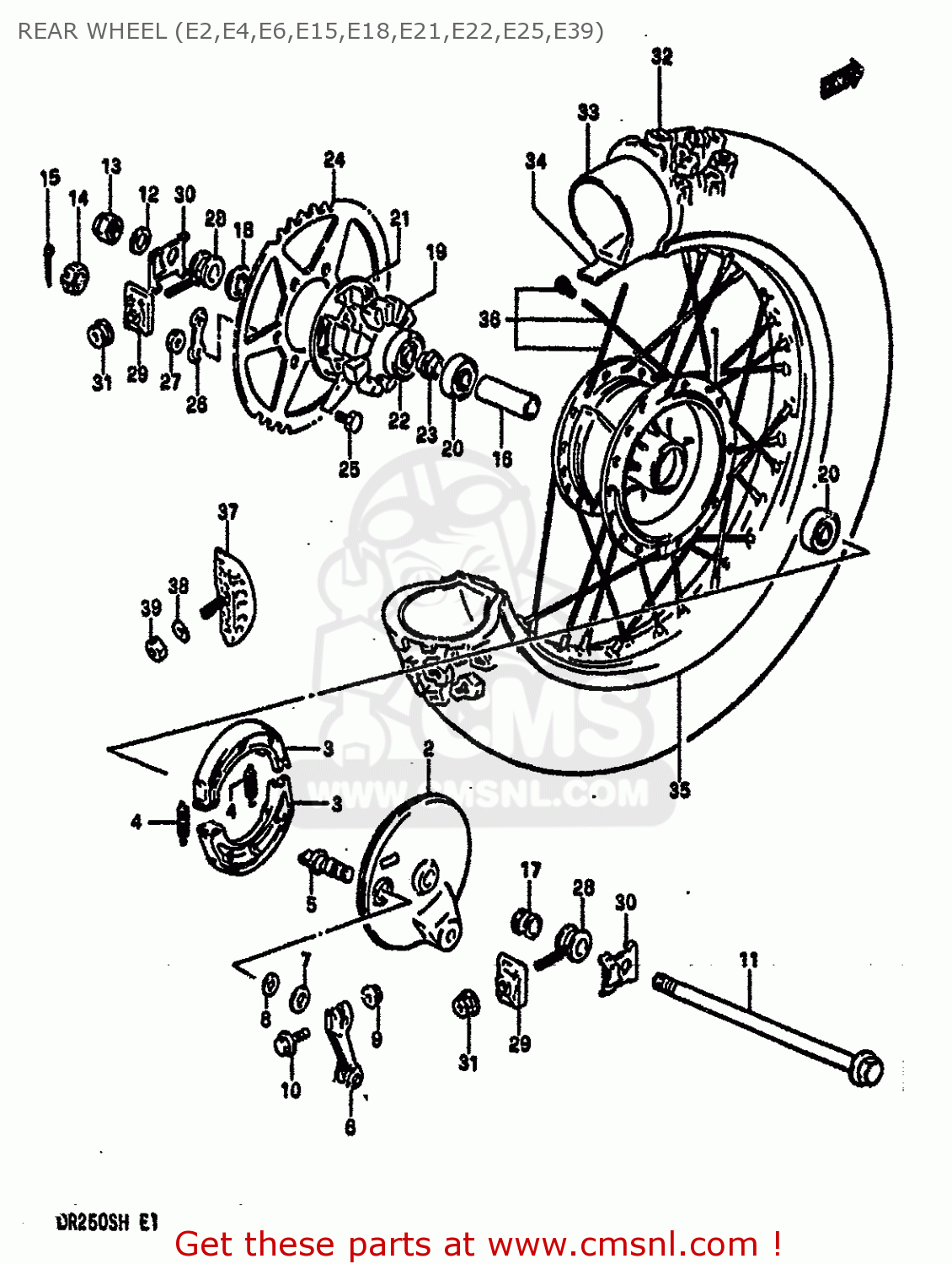

Rear wheel (e2,e4,e6,e15,e18,e21,e22,e25,e39) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

REAR WHEEL (E2,E4,E6,E15,E18,E21,E22,E25,E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
REAR WHEEL (E2,E4,E6,E15,E18,E21,E22,E25,E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
REAR WHEEL (E2,E4,E6,E15,E18,E21,E22,E25,E39) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
6411038200
ref: 1
DRUM,REAR HUB
€ 268.00
2
6421038200
ref: 2
PANEL,REAR HUB
€ 139.00
3
5441007003
ref: 3
SHOE,BRAKE
5441007003
€ 35.00
4
0944307001
ref: 4
SPRING(L:34)
0944307001
€ 2.50
5
5444129304
ref: 5
CAM,FRONT BRAKE
5444129304
€ 13.00
6
6445129900
ref: 6
LEVER,REAR BRAKE CAM
€ 32.50
7
0916014001
ref: 7
WASHER (14.5X22X1.6)
0916014001
€ 2.50
8
0928014003
ref: 8
O-RING (D:2.4 ID:13.8)
0928014003
€ 3.50
9
0915906017
ref: 9
NUT
0915906017
€ 2.50
10
0151706358
ref: 10
BOLT 6X35
0151706358
€ 2.50
11-1
6471138200
ref: 11-1
MODEL E
AXLE,REAR
€ 51.00
11-2
6471138220
ref: 11-2
MODEL F/G/H
AXLE,REAR
€ 51.00
12
0832221168
ref: 12
WASHER
€ 2.00
13
0915916002
ref: 13
MODEL F/G/H,MODEL E
NUT
0915916002
€ 5.00
14
0914116001
ref: 14
MODEL E E2,E4,E6,E15
NUT
0914116001
€ 6.50
15
0411140308
ref: 15
MODEL E E2,E4,E6,E15
PIN,COTTER
0411140308
€ 1.50
16
6473140600
ref: 16
SPACER,REAR HUB BEARING
€ 0.00
17
6474138200
ref: 17
SPACER,REAR AXLE,RIGHT
€ 7.50
18
6475038201
ref: 18
SPACER,REAR AXLE,LEFT
€ 9.00
19
6465138201
ref: 19
ABSORBER,RR SHOCK
6465138201
€ 5.50
20
0814362037
ref: 20
BEARING
0814362037
€ 18.50
21
6461138200
ref: 21
DRUM,REAR SPROCKET MOUNT
€ 111.00
22
0812362047
ref: 22
BEARING
0812362047
€ 17.00
23
6473338200
ref: 23
SPACER,REAR HUB BEARING
€ 10.50
24
6451138200
ref: 24
SPROCKET,RR(NT:42)
6451138200
€ 39.50
25
0911908036
ref: 25
BOLT
0911908036
€ 5.00
26
0916908011
ref: 26
WASHER
0916908011
€ 2.50
27
0831012088
ref: 27
NUT
0831012088
€ 2.00
28
6141038200
ref: 28
ADJUSTER,CHAIN
6141038200
€ 17.50
29
6142138200
ref: 29
PLATE,CHAIN ADJUSTER
6142138200
€ 3.50
30
6471238200
ref: 30
WASHER,CHAIN ADJUSTER GUIDE
6471238200
€ 3.50
31
0831931087
ref: 31
NUT
0831931087
€ 2.50
32-1
6510032470
ref: 32-1
TIRE, REAR (4.00X18)
€ 0.00
32-2
6510032490
ref: 32-2
TIRE, REAR (4.00X18)
€ 0.00
33
6520049015
ref: 33
TUBE,INNER
€ 39.00
34
6526115010
ref: 34
PROTECTOR,WHEEL,INNER
€ 3.50
35-1
6531138230
ref: 35-1
MODEL E
RIM, WHEEL (215X18AL) (GOLD)
€ 248.50
35-2
6531138260
ref: 35-2
MODEL F/G/H
RIM,WHEEL (215X18AL) (GOLD)
6531138260
€ 248.50
36
6532038210
ref: 36
SPOKE ASSY, REAR
6532038210
€ 35.50
37
6527046910
ref: 37
STOPPER,BEAD
€ 30.50
38
0832211088
ref: 38
WASHER
0832211088
€ 2.00
39
0831012088
ref: 39
NUT
0831012088
€ 2.00
