FRONT FORK (MODEL F/G/H)

DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

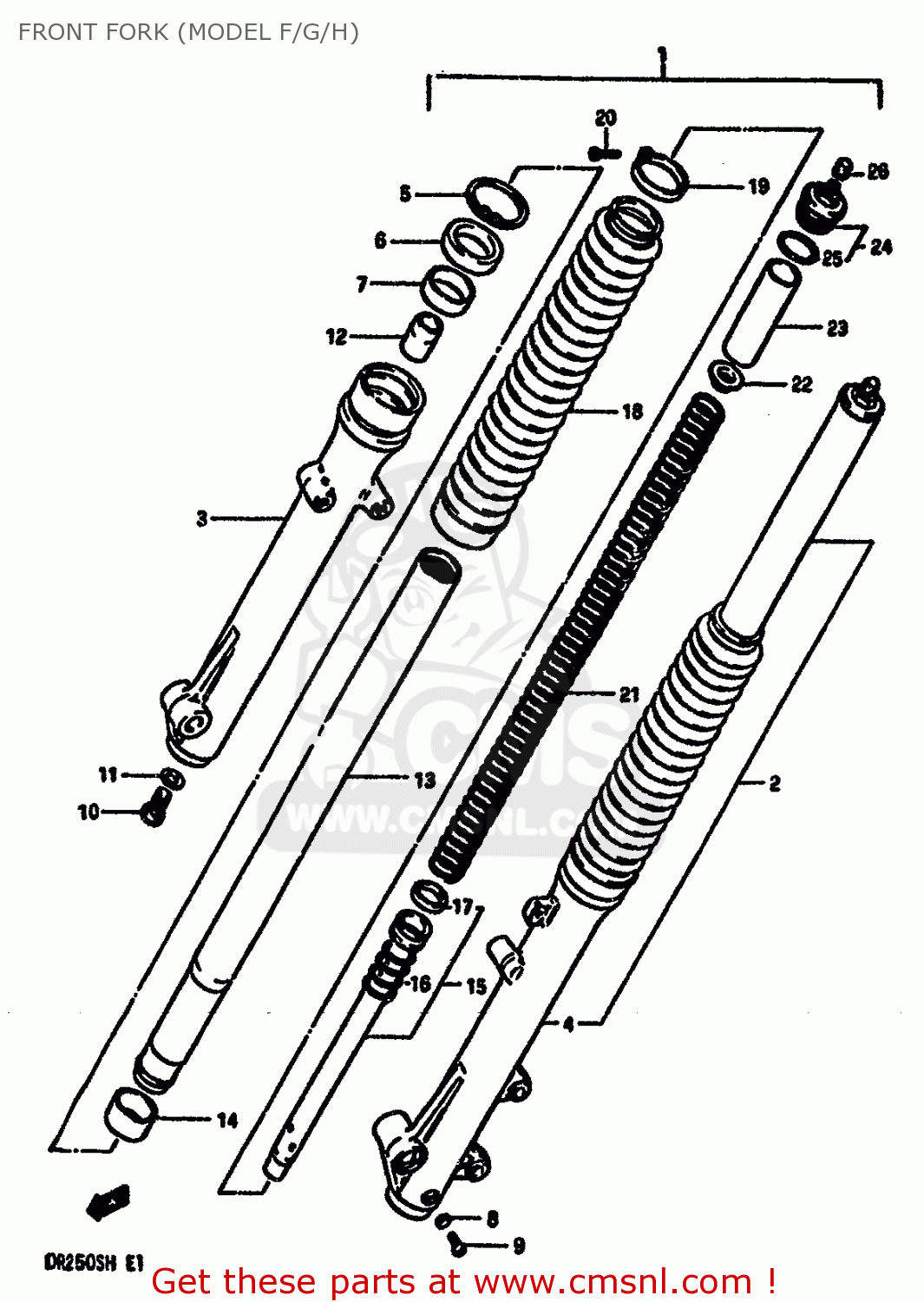

Front fork (model f/g/h) diagram DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)

FRONT FORK (MODEL F/G/H) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
FRONT FORK (MODEL F/G/H) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
FRONT FORK (MODEL F/G/H) DR250S 1986 (G) (E01 E04 E15 E18 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5110338215019
ref: 1-1
MODEL F/G
DAMPER ASSY,RH (BLACK)
€ 4.50
1-2
511033821519F
ref: 1-2
MODEL F/G
DAMPER ASSY,RH (BLUE)
€ 4.50
1-3
511033821534S
ref: 1-3
MODEL H
DAMPER ASSY,RH (BLUE)
€ 4.50
2-1
5110438270019
ref: 2-1
MODEL F/G
DAMPER ASSY,LH (BLACK)
€ 4.50
2-2
511043827019F
ref: 2-2
MODEL F/G
DAMPER ASSY, LH (BLUE)
€ 4.50
2-3
511013827034S
ref: 2-3
MODEL H
DAMPER ASSY,LH (BLUE)
€ 0.00
3
5113038210
ref: 3
TUBE,FORK,OUTER,RIGHT
5113038210
€ 166.00
4
5114038270
ref: 4
OUTER TUBE,LH
€ 0.00
5
5115630400
ref: 5
5115630400
6
5115334010
ref: 6
SEAL,OIL
5115334010
€ 15.00
7
5116738210
ref: 7
SLIDE METAL
€ 7.50
8
5118303010
ref: 8
GASKET,DRAIN,PLUG (NAS)
5118303010
€ 3.00
9
0211204087
ref: 9
SCREW
0211204087
€ 1.50
10
5114716510
ref: 10
BOLT,FORK CYLINDER(10X25)
5114716510
€ 3.50
11
5114841310
ref: 11
GASKET (NAS)
5114841310
€ 2.50
12
5119541210
ref: 12
PIECE,OIL LOCK
5119541210
€ 12.00
13
5111038215
ref: 13
INNER TUBE
5111038215
€ 155.50
14
5112145420
ref: 14
PISTON
€ 0.00
15
5114630400
ref: 15
CYLINDER,FRONT FORK
€ 0.00
16
5117737446
ref: 16
SPRING
5117737446
€ 6.50
17
5119637446
ref: 17
RING,FRONT FORK PISTON
€ 0.00
18-1
5157138215019
ref: 18-1
MODEL F/G
BOOT (BLACK)
€ 45.00
18-2
515713821519F
ref: 18-2
MODEL F/G
BOOT (BLUE)
€ 45.00
18-3
515713821534S
ref: 18-3
MODEL H
BOOT
515713821534S
€ 45.00
19
5157541410
ref: 19
BAND,BOOT
5157541410
€ 8.00
20
0211204167
ref: 20
SCREW
0211204167
€ 1.00
21
5117138210
ref: 21
SPRING
€ 30.50
22
5117238010
ref: 22
GUIDE,FRONT FORK SPRING C
5117238010
€ 9.50
23
5117638215
ref: 23
COLLAR,SPRING
€ 0.00
24
5135138265
ref: 24
CAP,FR FORK INNER TUBE
€ 0.00
25
5111716310
ref: 25
O RING
5111716310
€ 4.50
26
5129420400
ref: 26
CAP
5129420400
€ 3.50
