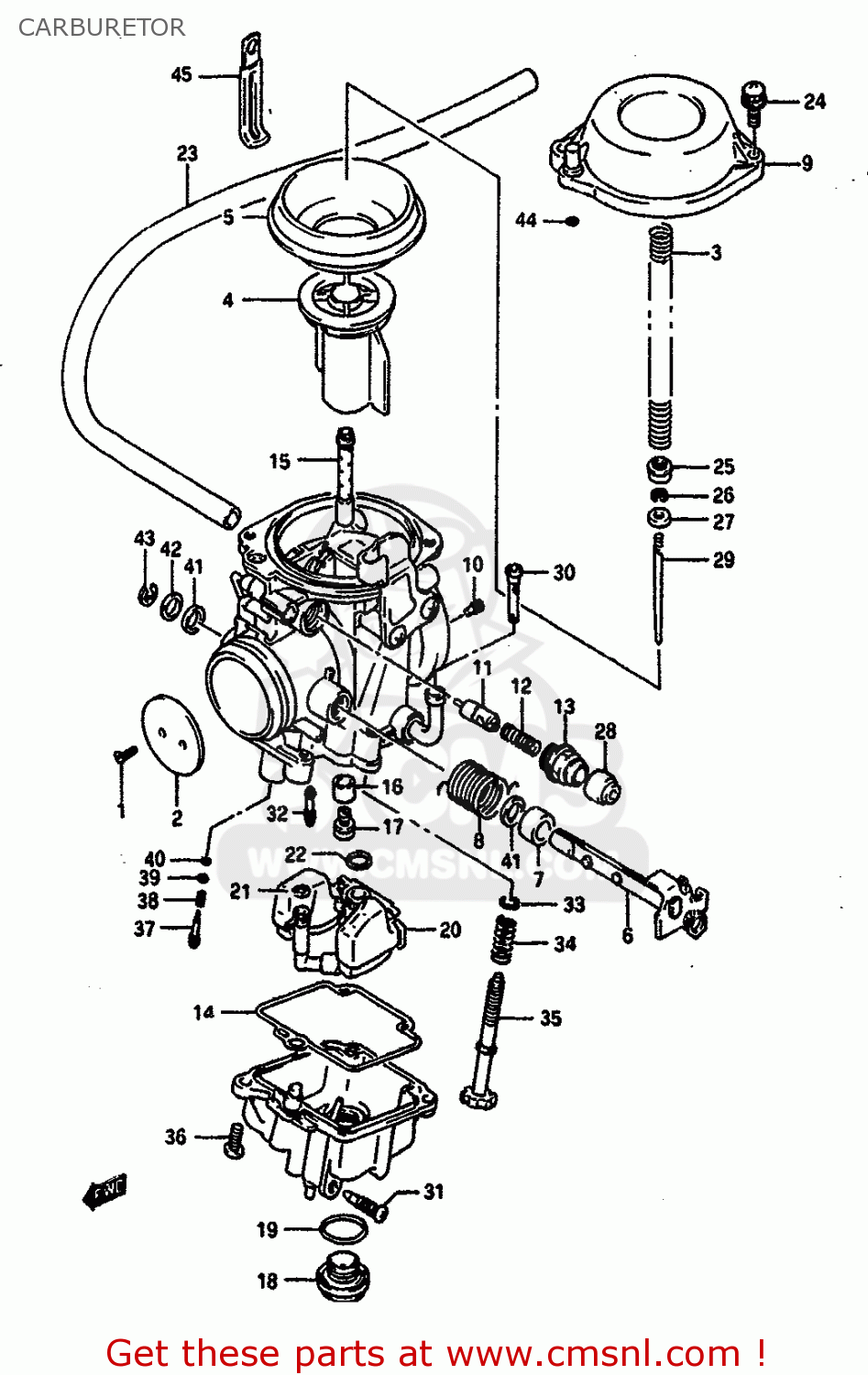

CARBURETOR

ref

part #

description

quantity

0

1320012D50
ref: 0

CARBURETOR ASSY

€ 429.00

0

1320012D00
ref: 0
E16,E17

CARBURETOR ASSY

€ 429.00

0

1320012D20
ref: 0
E18

CARBURETOR ASSY

€ 0.00

0

1320012D10
ref: 0
E22,MODEL M E15

CARBURETOR ASSY

€ 429.00

0

1320012D30
ref: 0
E24,E39

CARBURETOR ASSY

€ 0.00

0

1320012D40
ref: 0
DR650RSUL E22

CARBURETOR ASSY

€ 0.00

1

1360407D00
ref: 1

SCREW

€ 3.50

2

1355112D00
ref: 2

VALVE,THROTTLE

€ 21.00

3

1341712D00
ref: 3

SPRING

€ 6.50

4

1350112D00
ref: 4

VALVE,PISTON

€ 71.50

5

1350707D00
ref: 5

DIAPHRAGM

€ 24.50

6

1355012D00
ref: 6

SHAFT ASSEMBLY,THROTTLE

€ 31.00

7

1355705A20
ref: 7

RING

€ 3.00

8

1357312D00
ref: 8

SPRING

€ 6.00

9-1

1350212D00
ref: 9-1

COVER,DIAPHRAGM

€ 38.50

9-2

1350212D10
ref: 9-2
E18,DR650RSUL E22

COVER,DIAPHRAGM

€ 29.00

10

0949326004
ref: 10

JET,AIR(1.3)

€ 14.50

11

1341112D00
ref: 11

PLUNGER

€ 18.00

12

1341722010
ref: 12

SPRING

€ 3.00

13

1341843410
ref: 13

HOLDER,GUIDE

€ 6.50

14

1325844B00
ref: 14

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

15-1

0949400678
ref: 15-1

JET,NEEDLE

€ 33.00

15-2

0949400706
ref: 15-2
E18

JET,NEEDLE (X-9)

€ 0.00

16

1333107D00
ref: 16

RING

€ 4.50

17-1

0949130004
ref: 17-1

JET

€ 14.00

17-2

0949130016
ref: 17-2
E18

JET,MAIN(150)

€ 14.00

18

1324732210
ref: 18

SCREW,GUIDE

€ 13.00

19

1324941310
ref: 19

O RING,DRAIN PLUG

€ 5.00

20

1325044C00
ref: 20

FLOAT/NEEDLE VALVE ASSEMBLY

€ 124.50

21

1337446710
ref: 21

O RING

€ 4.50

22

1337444080
ref: 22

O-RING,NEEDLE VALVE

€ 6.00

23

1368312D00
ref: 23

HOSE (6.5X10.5X475)

€ 26.00

24

1360234390
ref: 24

SCREW

€ 2.50

25

1333112D00
ref: 25

RING

€ 4.50

26

1339431210
ref: 26

CLIP,NEEDLE

€ 3.50

27

1338707D00
ref: 27

RING

€ 4.50

28

1368104010
ref: 28

CAP

€ 3.00

29-1

1338312D00
ref: 29-1

NEEDLE JET

€ 15.00

29-2

1338312D10
ref: 29-2
DR650RSUL E22

NEEDLE,JET (6I04-3)

€ 15.50

29-3

1338312D20
ref: 29-3
E18

NEEDLE,JET

€ 15.00

30

1323612C00
ref: 30

FILTER

€ 5.00

31

1324702340
ref: 31

PLUG,DRAIN

€ 5.50

32-1

0949247013
ref: 32-1

JET,PILOT(47.5)

€ 12.50

32-2

0949245016
ref: 32-2
E18

JET,PILOT(45)

€ 12.00

33

1342738300
ref: 33

WASHER

€ 1.50

34

1337560A00
ref: 34

SPRING

€ 4.00

35

1326728A00
ref: 35

SCREW

€ 22.50

36

1360205129
ref: 36

SCREW

€ 2.50

37-1

1327947070
ref: 37-1

SCREW,PILOT

€ 11.50

37-2

1327947070
ref: 37-2
E22,E24,E39,MODEL M

SCREW,PILOT

€ 11.50

37-3

1327947070
ref: 37-3
DR650RSUL E22

SCREW,PILOT

€ 11.50

38

1326847070
ref: 38

SPRING

€ 5.00

39

1329129900
ref: 39

WASHER

€ 2.00

40

1329529900
ref: 40

O RING,PILOT AIR SCREW

€ 4.00

41

1355644B00
ref: 41

SEAL

€ 3.50

42

1355747070
ref: 42

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

43

1361744080
ref: 43

E RING

€ 3.50

44

1327802340
ref: 44
E18

O RING

€ 1.50

45

0940406402
ref: 45

CLAMP

€ 2.50
