Buy Suzuki DR Parts Online
home
FUEL COCK
DR650RSU 1990 (L) GERMANY (E22)

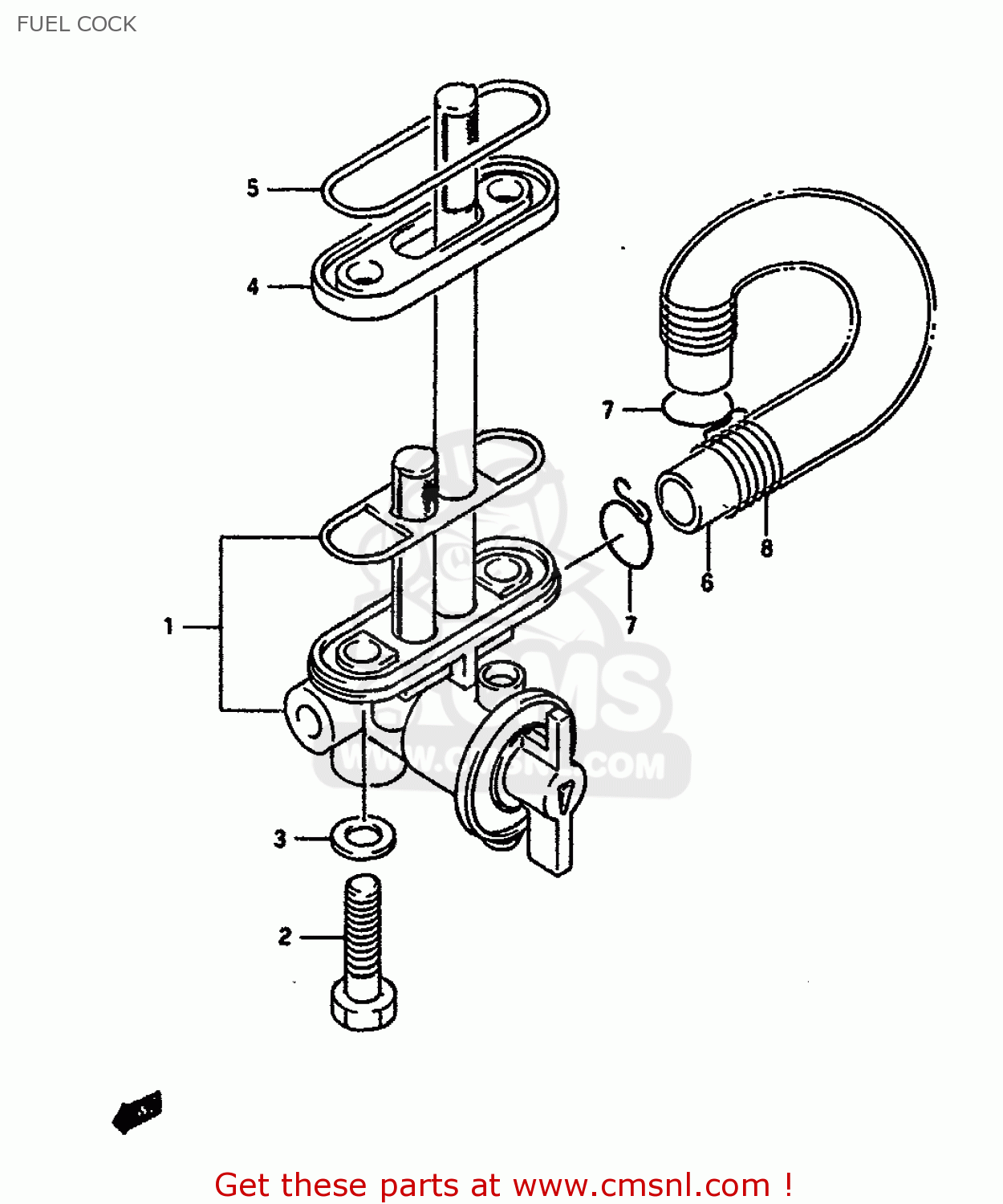

Fuel cock diagram DR650RSU 1990 (L) GERMANY (E22)
FUEL COCK DR650RSU 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4430012D00
ref: 1
COCK ASSY,FUEL
€ 83.50
2
0912806006
ref: 2
BOLT(6X20)
€ 2.00
3
0916806026
ref: 3
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
4
4436514A00
ref: 4
SPACER,FUEL COCK
€ 12.00
5
4436614A00
ref: 5
GASKET,FUEL COCK (NAS)
€ 2.50
6
0935270103300
ref: 6
HOSE
€ 8.00
7
0940110401
ref: 7
CLIP
€ 1.50
8
0944013036
ref: 8
(CA) SPRING
€ 2.50
