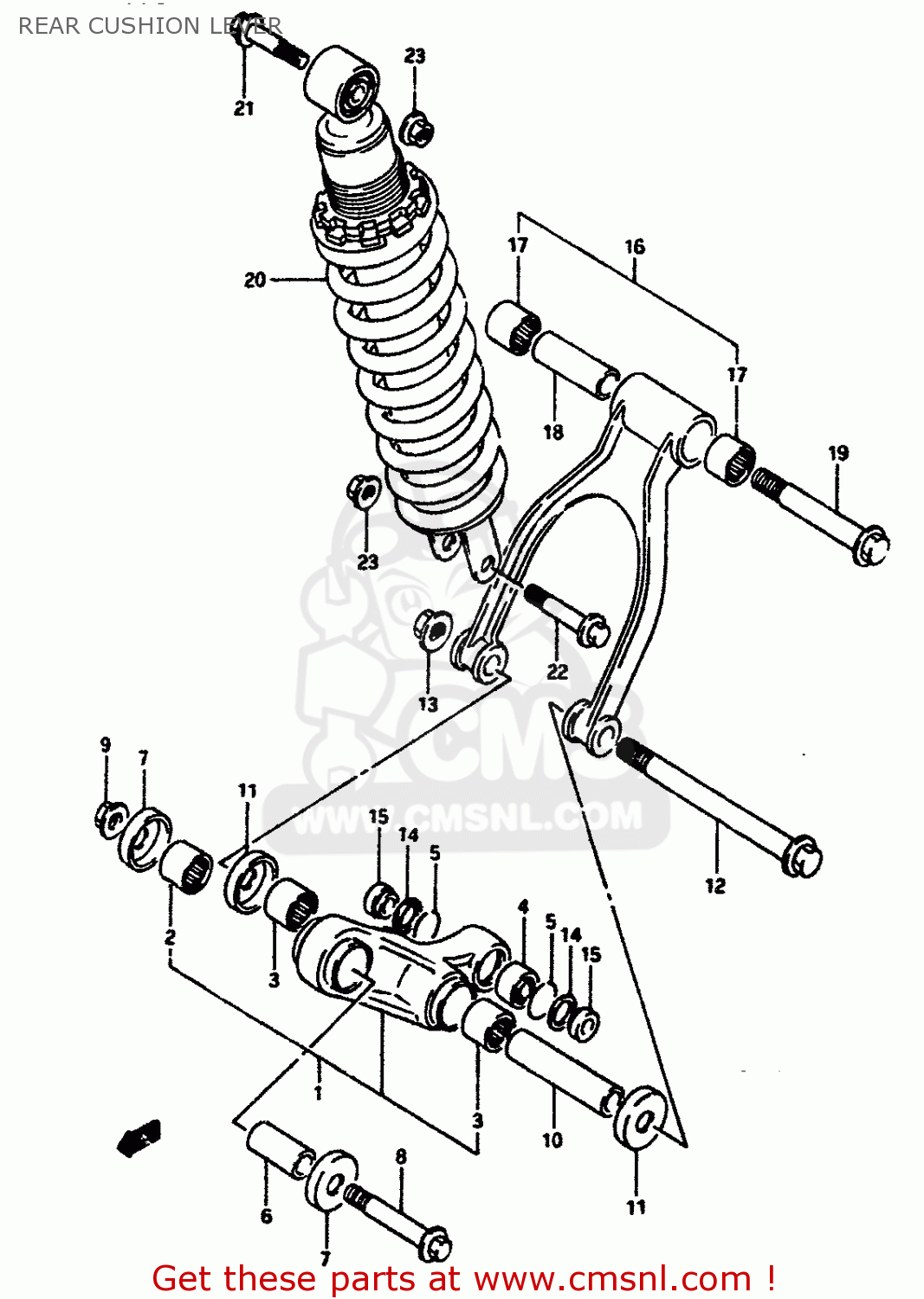

REAR CUSHION LEVER

ref

part #

description

quantity

1

6260012870
ref: 1

LEVER SET,REAR CUSHION

€ 219.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

6217527C00
ref: 4

BEARING,REAR SHOCK ABSORBER

€ 66.00

5

6227714200
ref: 5

RING

€ 1.50

6

6231744B00
ref: 6

SPACER,RR CUSHION LEVER FR

€ 14.00

7

6262408D00
ref: 7

SEAL,RR CUSHION LEVER FR DUST

€ 13.50

8

6265800B20
ref: 8

BOLT,RR CUSHION LEVER FR

€ 8.50

9

0831931128
ref: 9

NUT 12MM

€ 4.00

10

0918014013
ref: 10

SPACER (14X20X78)

€ 20.00

11

6262408D10
ref: 11

SEAL,RR CUSHION LEVER CTR DUST

€ 19.50

12

6262244B00
ref: 12

BOLT,RR CUSHION ROD LWR

€ 17.00

13

0831931148
ref: 13

NUT

€ 9.00

14

6222614520
ref: 14

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

15

6268414520
ref: 15

COLLAR

€ 7.00

16

6260044820
ref: 16

LEVER SET,REAR CUSHION

€ 211.50

17

0926320071
ref: 17

BEARING(20X27X23.5)

€ 21.50

18

0918014015
ref: 18

SPACER (14X20X63)

€ 14.50

19

6262144B00
ref: 19

BOLT,RR CUSHION ROD UPR

€ 14.00

20-1

6210012D000NF
ref: 20-1
MODEL L,FOR 0JW

ABSORBER,SHOCK

€ 773.00

20-2

6210012D0028W
ref: 20-2
MODEL L,FOR 0NF,28V

ABSORBER,SHOCK

€ 773.00

20-3

6210012D200NF
ref: 20-3
MODEL M,FOR 0JW

ABSORBER ASSY,REAR SHOCK (BLUE)

€ 773.00

20-4

6210012D2028W
ref: 20-4
MODEL M,FOR 12F,22P

ABSORBER ASSY,REAR SHOCK (WHITE)

€ 773.00

21

0910310064
ref: 21

BOLT(10X50)

€ 4.50

22

0910310213
ref: 22

BOLT(10X52)

€ 4.00

23

0915910058
ref: 23

NUT

€ 4.00

all assemblies
