DR650RSU 1990 (L) GERMANY (E22)

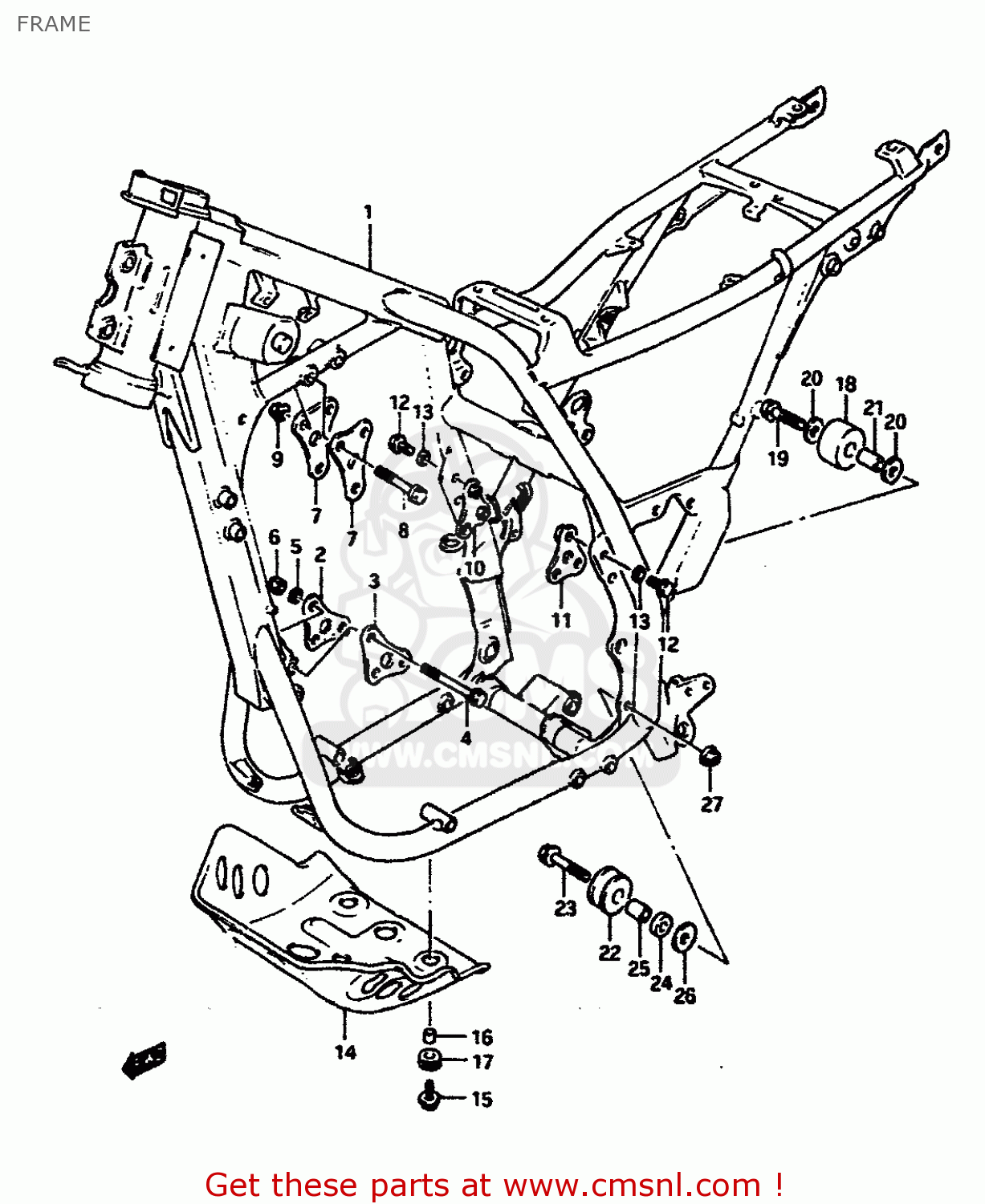

Frame diagram DR650RSU 1990 (L) GERMANY (E22)
FRAME DR650RSU 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110012D000NF
ref: 1-1
MODEL L
FRAME (BLUE)
€ 1,165.50
1-2
4110012D100NF
ref: 1-2
MODEL M
FRAME (BLUE)
€ 0.00
1-3
4110012D0028W
ref: 1-3
MODEL L
FRAME (WHITE)
€ 1,375.50
1-4
4110012D1028W
ref: 1-4
MODEL M
FRAME (WHITE)
€ 1,504.50
2-1
4191112D000NF
ref: 2-1
MODEL L
PLATE,ENGINE MOUNTING
€ 9.50
2-2
4191112D0028W
ref: 2-2
MODEL L
PLATE,FRONT RH (WHITE)
€ 9.50
2-3
4191112D00019
ref: 2-3
MODEL M
PLATE,ENG MTG FR,R
€ 9.50
3-1
4192112D000NF
ref: 3-1
MODEL L
PLATE,ENGINE MOUNTING
€ 9.00
3-2
4192112D0028W
ref: 3-2
MODEL L
PLATE,FRONT LH (WHITE)
€ 9.00
3-3
4192112D00019
ref: 3-3
MODEL M
PLATE,ENG MTG FR,L
€ 9.00
4
0910308279
ref: 4
BOLT(8X72)
€ 4.50
5
0832131084
ref: 5
LOCK WASHER
€ 2.50
6
0831921085
ref: 6
NUT
€ 1.50
7-1
4199112D000NF
ref: 7-1
MODEL L
PLATE,ENGINE MOUNTING
€ 15.50
7-2
4199112D0028W
ref: 7-2
MODEL L
PLATE,UPPER (WHITE)
€ 15.50
7-3
4199112D00019
ref: 7-3
MODEL M
PLATE,ENGINE MOUNTING
€ 15.50
8
0910308289
ref: 8
BOLT(8X50)
€ 5.00
9
0831931085
ref: 9
NUT
€ 2.50
10-1
4194012D000NF
ref: 10-1
MODEL L
PLATE,ENGINE MOUNTING
€ 12.00
10-2
4194012D0028W
ref: 10-2
MODEL L
PLATE,REAR RH (WHITE)
€ 12.00
10-3
4194012D00019
ref: 10-3
MODEL M
PLATE,ENG MTG RR,R
€ 12.00
11-1
4195012D010NF
ref: 11-1
MODEL L
PLATE,ENGINE MOUNTING
€ 10.50
11-2
4195012D100NF
ref: 11-2
MODEL L E18
PLATE,REAR LH (BLUE)
€ 0.00
11-3
4195012D0128W
ref: 11-3
MODEL L
PLATE,REAR LH (WHITE)
€ 10.50
11-4
4195012D1028W
ref: 11-4
MODEL L E18
PLATE,REAR LH (WHITE)
€ 0.00
11-5
4195012D01019
ref: 11-5
MODEL M
PLATE,ENG MTG RR,L
€ 10.50
11-6
4195012D10019
ref: 11-6
MODEL M E18
PLATE,REAR LH (BLACK)
€ 0.00
12
0910308266
ref: 12
BOLT(8X20)
€ 2.50
13
0832131084
ref: 13
LOCK WASHER
€ 2.50
14
4251114A01
ref: 14
PROTECTOR,ENGINE
€ 279.00
15
0911806087
ref: 15
BOLT 6X20
€ 3.00
16
0918007005
ref: 16
SPACER (7X9X7)
€ 2.50
17
0932008021
ref: 17
CUSHION
€ 4.00
18
4391101B10
ref: 18
ROLLER,CHAIN CONTROL
€ 14.50
19
0910308083
ref: 19
BOLT(8X41)
€ 3.50
20
0916008021
ref: 20
WASHER (8.2X24X1.6)
€ 2.00
21
0918008136
ref: 21
SPACER (8.6X13.8X28)
€ 9.00
22
4391135B00
ref: 22
ROLLER,CHAIN CONTROL
€ 14.50
23
0910308082
ref: 23
BOLT 8X50
€ 7.00
24
4391412D00
ref: 24
SPACER,LOWER
€ 3.50
25
0918008119
ref: 25
SPACER(8.6X12X25.5)
€ 6.50
26
0821108201
ref: 26
WASHER
€ 2.00
27
0831931085
ref: 27
NUT
€ 2.50
