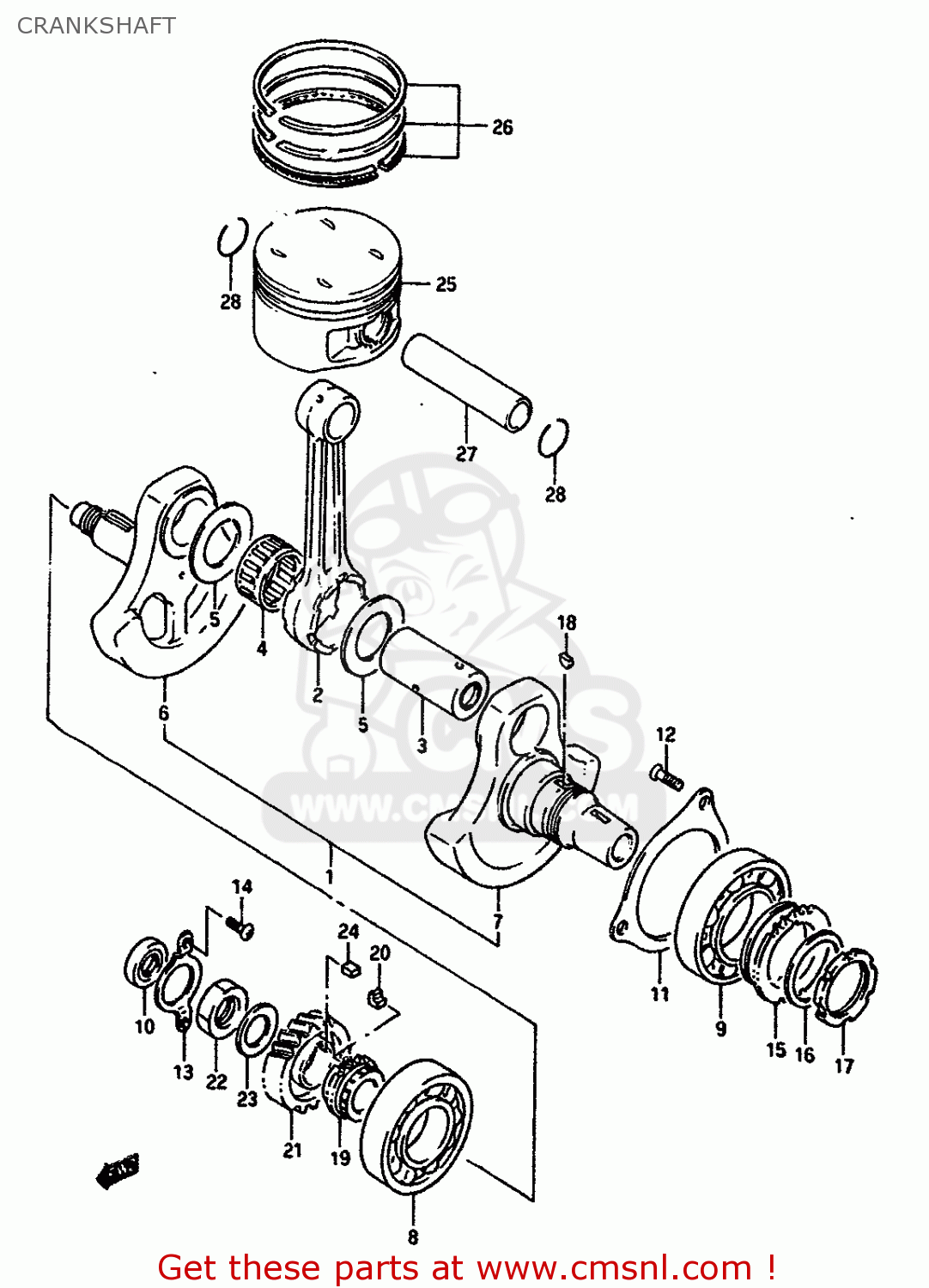

CRANKSHAFT

ref

part #

description

quantity

1

1220012D00
ref: 1

CRANKSHAFT ASSY

€ 899.00

2

1216112D00
ref: 2

ROD,CONNECTING

€ 129.00

3

1221012D00
ref: 3

PIN,CRANK

€ 82.50

4

0926335029
ref: 4

BEARING

€ 70.50

5

0916035005
ref: 5

WASHER(35X55X1)

€ 8.00

6

1222112D01
ref: 6

CRANKSHAFT,RIGHT

€ 222.00

7

1226112D01
ref: 7

CRANKSHAFT,LEFT

€ 187.00

8

0926235009
ref: 8

BEARING(35X80X21)

€ 68.50

9

0926245003
ref: 9

BEARING

€ 50.00

10

0928216002
ref: 10

SEAL,OIL(16X30X6)

€ 8.50

11

1254137400
ref: 11

RETAINER,CRANKSHAFT BEARING,L

€ 13.50

12

0212206167
ref: 12

SCREW

€ 2.00

13

1254837400
ref: 13

RETAINER,CRANKSHAFT BEARING,R

€ 6.50

14

0211205087
ref: 14

SCREW

€ 2.00

15

1266237401
ref: 15
NT:25

SPROCKET,BALANCER DRIVE

€ 161.00

16

0916440003
ref: 16

WASHER

€ 3.50

17-1

1266437401
ref: 17-1
MODEL L

NUT,FLYWHEEL

€ 26.00

17-2

1266444B00
ref: 17-2
MODEL M

NUT,BAL DRIVE SPRKT

€ 26.00

18

0834131039
ref: 18

KEY

€ 2.00

19

1273137400
ref: 19

SPROCKET,CAM CHAIN DRIVE

€ 91.00

20

1274932400
ref: 20

KEY,SPROCKET

€ 13.50

21

2111112D00
ref: 21

GEAR,PRIMARY DRIVE

€ 28.50

22

0914020008
ref: 22

NUT (20MM)

€ 4.00

23

0916420003
ref: 23

WASHER

€ 2.50

24

0942107002
ref: 24

KEY

€ 4.00

25-1

1211112D020E0
ref: 25-1
-12111-12D03-0E0

PISTON

€ 111.50

25-2

1211112D02050
ref: 25-2
OPT -12111-12D03-050

PISTON (OS:0.5)

€ 152.00

25-3

1211112D02100
ref: 25-3
OPT

PISTON

€ 149.50

26-1

1214012D30
ref: 26-1

RING SET,PISTON

€ 68.50

26-2

1214012D30050
ref: 26-2
OPT

RING SET,PISTON (OS:0.5)

€ 54.00

26-3

1214012D30100
ref: 26-3
OPT

RING SET,PISTON (OS:1.0)

€ 41.50

27

1215114A01
ref: 27

PIN,PISTON

€ 18.00

28

0938123003
ref: 28

CIRCLIP

€ 1.50
