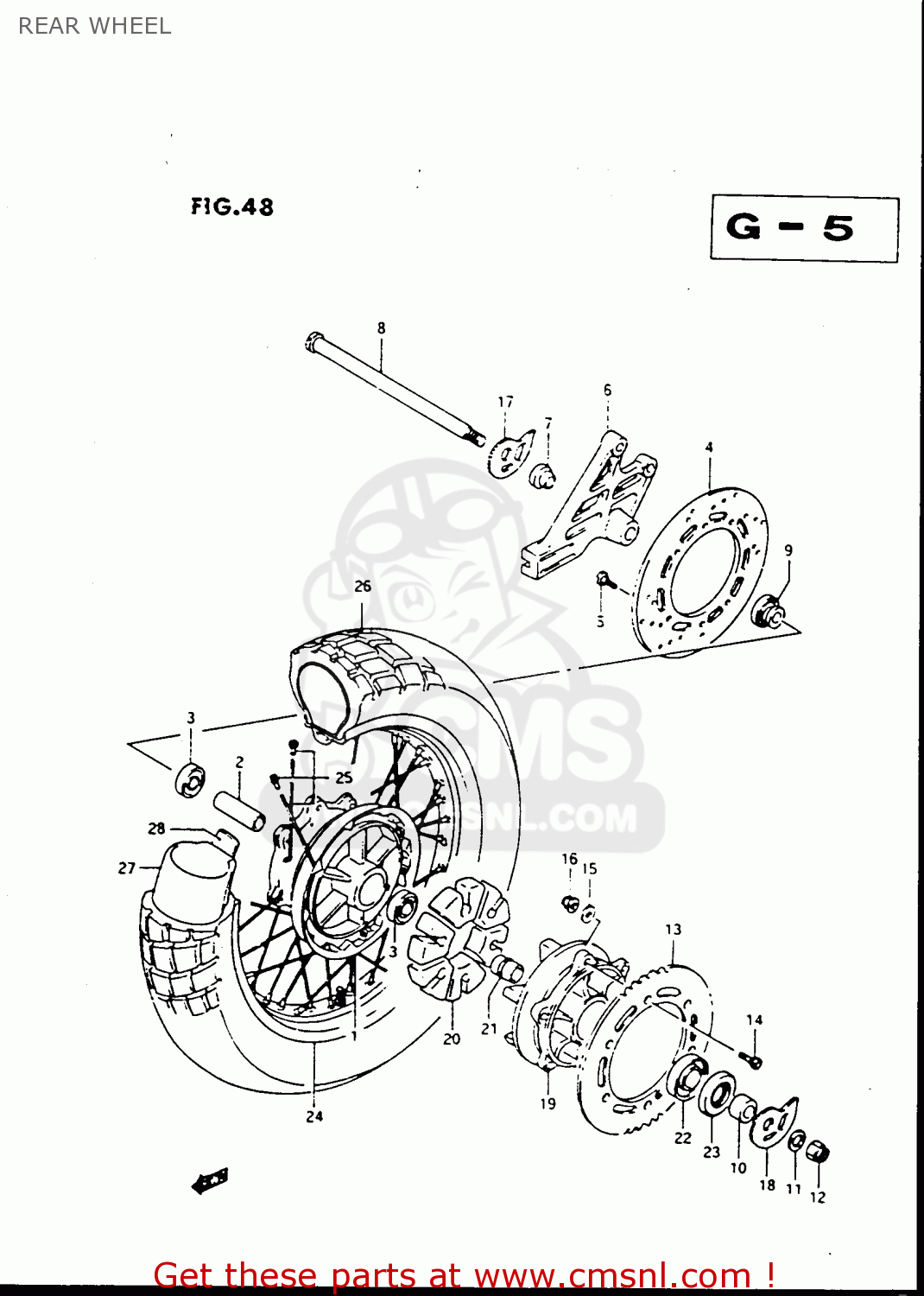

REAR WHEEL

ref

part #

description

quantity

1

6411044B10
ref: 1

HUB COMP,REAR WHEEL

€ 358.00

2

0918017071
ref: 2

SPACER(17.5X25X78)

€ 20.00

3

0812463037
ref: 3

BEARING

€ 18.50

4

6921144B00
ref: 4

DISC,RR BRAKE

€ 370.00

5

5942103A01
ref: 5

BOLT,BRAKE DISC

€ 4.00

6

6972144B00
ref: 6

BRACKET,RR CALIPER

€ 103.00

7

0918017096
ref: 7

SPACER (17X21X10)

€ 14.00

8

6471144B10
ref: 8

AXLE,RR

€ 55.00

9

6475038211
ref: 9

SPACER,RR AXLE,L

€ 12.00

10

0918017090
ref: 10

SPACER(17X33X22.4)

€ 14.50

11

0916017013
ref: 11

WASHER (17X30X3.2)

€ 2.00

12

0915916002
ref: 12

NUT

€ 5.00

13

6451114A00
ref: 13

SPROCKET,REAR

€ 99.00

14

0912008010
ref: 14

BOLT(8X30.5)

€ 2.50

15

0832211088
ref: 15

WASHER

€ 2.00

16

0831931087
ref: 16

NUT

€ 2.50

17

6141112D00
ref: 17

ADJUSTER,CHAIN

€ 15.00

18

6142112D00
ref: 18

PLATE,CHAIN ADJUSTER

€ 13.50

19

6461144B10
ref: 19

DRUM,REAR SPROCKET

€ 127.50

20

6465144B01
ref: 20

ABSORBER,RR HUB SHOCK

€ 10.50

21

6473331300
ref: 21

RETAINER,RR SPROCKET DRUM

€ 16.50

22

0926225073
ref: 22

BEARING(25X62X17)

€ 21.50

23

0928533001
ref: 23

SEAL,OIL(33X62X7)

€ 20.00

24

6531144B10
ref: 24

RIM,REAR WHEEL (17XMT2)

€ 377.50

25

6532044B10
ref: 25

SPOKE SET,RR

€ 79.00

26

6510012D00
ref: 26
DUNLOP

TIRE,REAR (120/90-17 64S)

€ 220.50

27

6520013A40
ref: 27

TUBE ASSEMBLY,WHEEL,INNER

€ 43.50

28

6526113A40
ref: 28

PROTECTOR

€ 4.50

all assemblies
