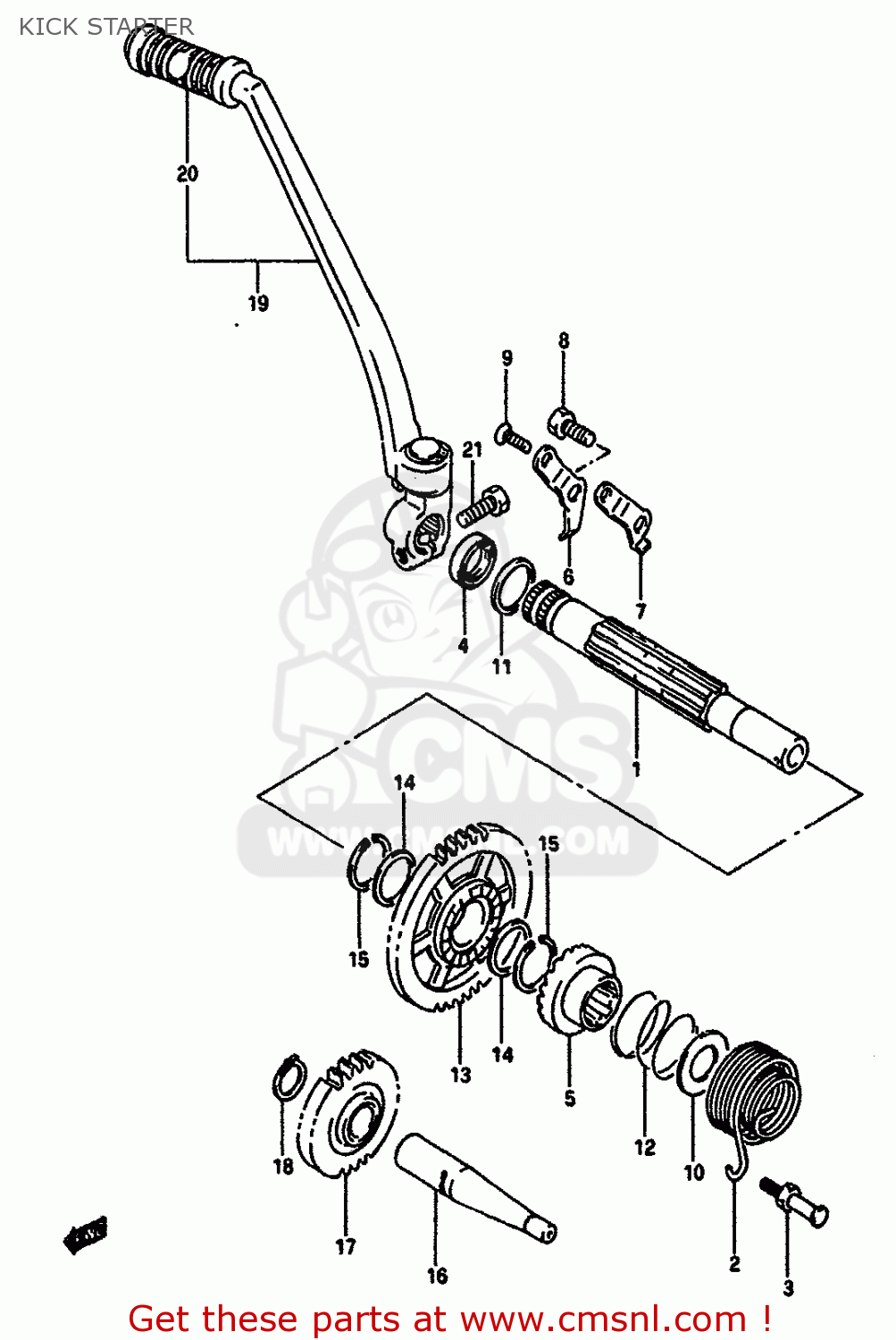

KICK STARTER

ref

part #

description

quantity

1

2621114A02
ref: 1

SHAFT,KICK STARTER

€ 63.00

2

0944841003
ref: 2

SPRING

€ 17.00

3

2623714500
ref: 3

BOLT,KICK SHAFT SPRING

€ 3.50

4

0928320044
ref: 4

SEAL,OIL(20X27X6)

€ 8.00

5

2623138201
ref: 5

STARTER,KICK

€ 25.50

6

2623214A00
ref: 6

GUIDE,KICK STARTER

€ 8.00

7

2623314A01
ref: 7

STOPPER,KICK STARTER

€ 6.00

8

0110708206
ref: 8

BOLT,8X1.25X2

€ 2.00

9

0212206167
ref: 9

SCREW

€ 2.00

10

0821117341
ref: 10

WASHER

€ 2.00

11

0821120281
ref: 11

WASHER,THRUST

€ 2.50

12

0944032006
ref: 12

SPRING

€ 1.50

13

2624014A00
ref: 13

GEAR,KICK STARTER DRIVE

€ 52.50

14

0821122281
ref: 14

SHIM

€ 4.00

15

0938022006
ref: 15

CIRCLIP

€ 3.00

16-1

2622314A00
ref: 16-1
MODEL L

SHAFT,KICK STARTER IDLE

€ 16.50

16-2

2622314A01
ref: 16-2
MODEL M

SHAFT,KICK STARTER IDLE

€ 16.50

17

2626037400
ref: 17

GEAR,KICK STARTER IDLE

€ 36.00

18

0938017001
ref: 18

CIRCLIP

€ 2.00

19-1

2630014A00
ref: 19-1
MODEL L

LEVER ASSEMBLY,KICK STARTER

€ 282.00

19-2

2630014A02
ref: 19-2
MODEL M

LEVER ASSEMBLY,KICK STARTER

€ 282.00

20

2635216401
ref: 20

RUBBER,KICK STARTER PEDAL

€ 4.00

21

0910008194
ref: 21

BOLT 8X25

€ 2.00
