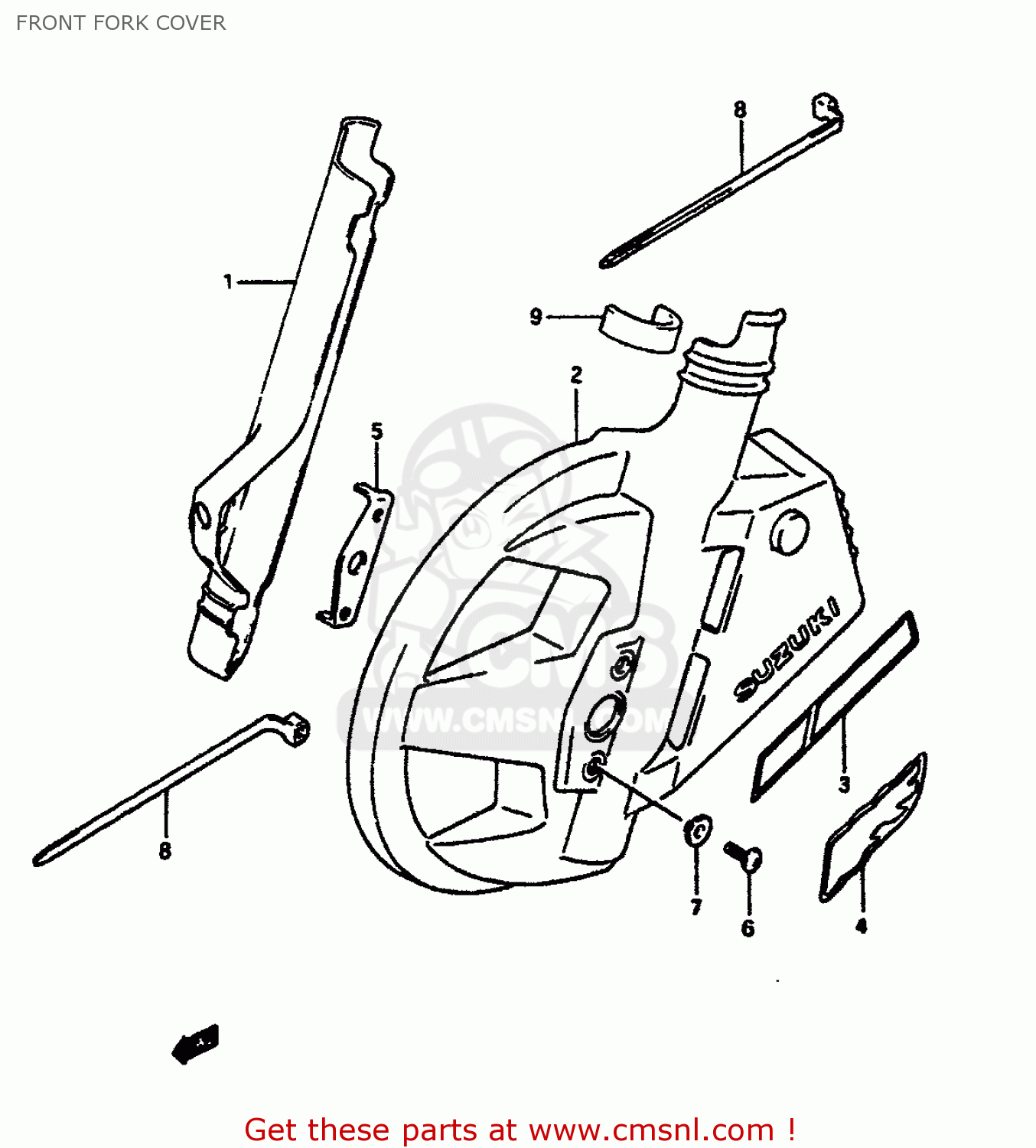

FRONT FORK COVER

ref

part #

description

quantity

1-1

5120144B100JW
ref: 1-1

PROTECTOR,FR FORK,R

€ 60.50

1-2

5120144B1028V
ref: 1-2
MODEL L

PROTECTOR,FR FORK,R

€ 73.50

1-3

5120144B1022P
ref: 1-3
MODEL M

PROTECTOR,FORK RH (RED)

€ 60.50

1-4

5120144B100NF
ref: 1-4
MODEL L

PROTECTOR,FORK RH (BLUE)

€ 74.50

1-5

5120144B1012F
ref: 1-5
MODEL M

PROTECTOR,FORK RH (BLUE)

€ 60.50

2-1

5120244B110JW
ref: 2-1

PROTECTOR,FORK LH (WHITE)

€ 176.00

2-2

5120244B1128V
ref: 2-2
MODEL L

PROTECTOR,FR FORK,L

€ 243.00

2-3

5120244B1122P
ref: 2-3
MODEL M

PROTECTOR,FORK LH (RED)

€ 176.00

2-4

5120244B110NF
ref: 2-4
MODEL L

PROTECTOR,FORK LH (BLUE)

€ 227.50

2-5

5120244B1112F
ref: 2-5
MODEL M

PROTECTOR,FORK LH (BLUE)

€ 176.00

3-1

6825044B00B21
ref: 3-1
MODEL L FOR 0JW

TAPE,PROTECTOR LH

€ 7.50

3-2

6825044B003US
ref: 3-2
MODEL L FOR 28V

TAPE,PROTECTOR LH

€ 6.00

3-3

6825044B00B19
ref: 3-3
MODEL L FOR 0NF

TAPE,PROTECTOR LH

€ 0.00

4-1

6825012D001BM
ref: 4-1
MODEL M FOR 0JW

TAPE,PROTECTOR LH

€ 0.00

4-2

6825012D001BL
ref: 4-2
MODEL M FOR 22P

TAPE,PROTECTOR LH

€ 0.00

4-3

6825012D001BK
ref: 4-3
MODEL M FOR 12F

TAPE,PROTECTOR LH

€ 0.00

5

5477044B10
ref: 5

PLATE,PROTECTOR SET

€ 13.00

6

0214206125
ref: 6

SCREW 6X12

€ 2.00

7

0916906041
ref: 7

WASHER

€ 2.00

8

0940725403
ref: 8

CLAMP

€ 4.00

9

5120412D00
ref: 9

CUSHION

€ 5.50

all assemblies
