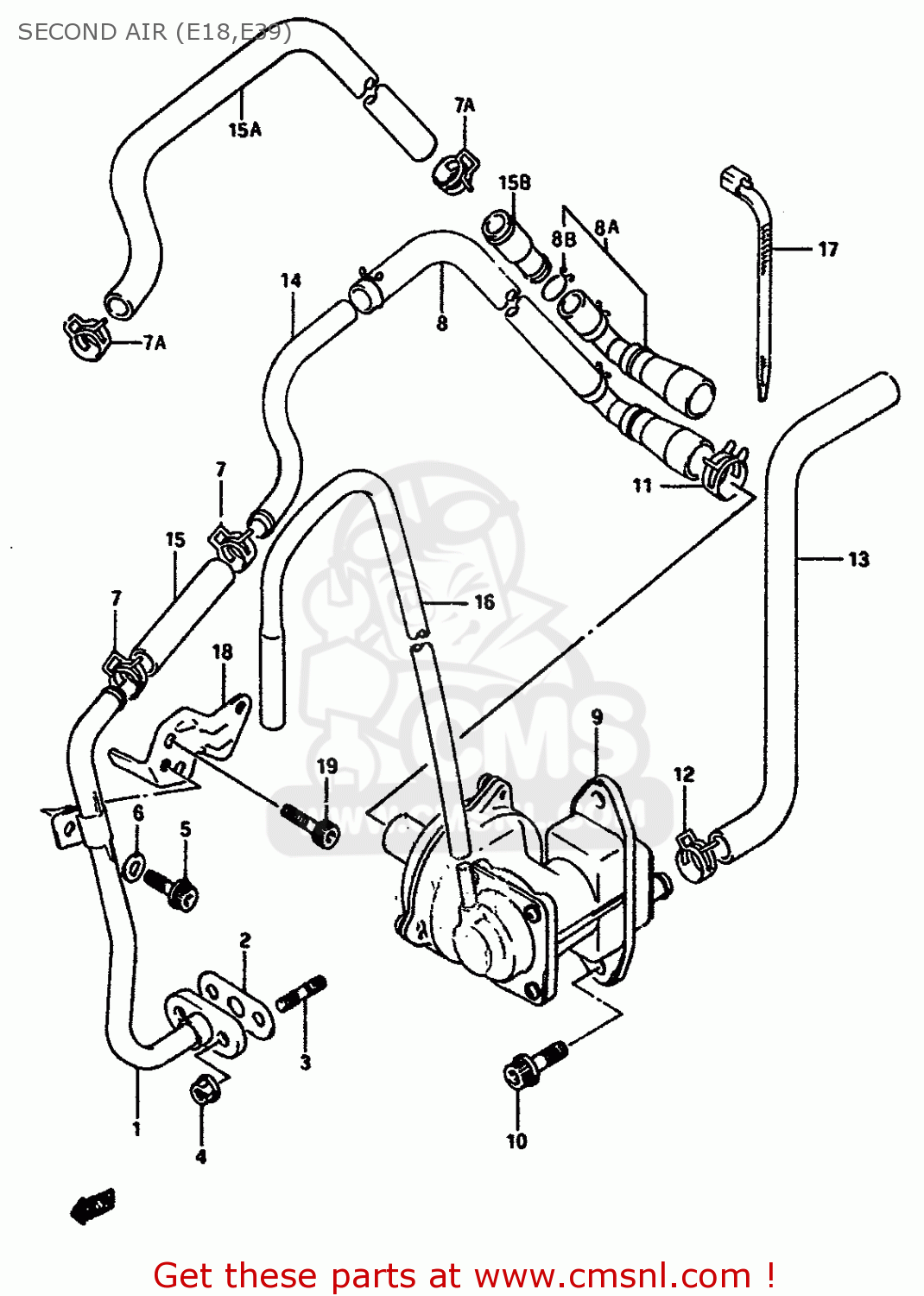

SECOND AIR (E18,E39)

ref

part #

description

quantity

1

1842012D00
ref: 1

PIPE,2ND AIR

€ 0.00

2-1

1844112D00
ref: 2-1
MODEL L

GASKET

€ 6.00

2-2

1844112D10
ref: 2-2
E18,MODEL M

GASKET,2ND AIR (NAS)

€ 6.00

3

0142106165
ref: 3

STUD 6X16

€ 2.00

4

0831616064
ref: 4

NUT 6MM

€ 2.50

5

0712006125
ref: 5

BOLT

€ 3.50

6

0916006069
ref: 6

WASHER

€ 2.00

7

0940113408
ref: 7
MODEL L

CLIP

€ 2.50

7A

0940116402
ref: 7A
MODEL M

CLIP

€ 2.00

8

1844012D00
ref: 8
MODEL L

HOSE ASSY

€ 0.00

8A

1844014D00
ref: 8A
MODEL M

HOSE ASSY

€ 19.50

8B

1382800020
ref: 8B
MODEL M

CLIP,BREATHER TUBE

€ 2.00

9

1845012D00
ref: 9

VALVE ASSY,2ND AIR REED

€ 114.00

10

0712006205
ref: 10

PLUG ,6X20

€ 3.50

11

0940123403
ref: 11

CLIP

€ 4.50

12

0940115404
ref: 12

CLIP

€ 2.50

13

1843214A10
ref: 13

HOSE,2ND AIR NO.4

€ 0.00

14

1843112D00
ref: 14
MODEL L

PIPE,2ND AIR NO.2

€ 0.00

15

1843212D00
ref: 15
MODEL L

HOSE,2ND AIR NO.2

€ 0.00

15A

1843112D10
ref: 15A
MODEL M

HOSE,2ND AIR NO.2

€ 0.00

15B

1843214D00
ref: 15B
MODEL M

UNION, 2ND AIR HOSE

€ 14.50

16

0935940701250
ref: 16

HOSE,2ND AIR NO.3

€ 9.00

17-1

0940718402
ref: 17-1
MODEL L

CLAMP(L:165)

€ 2.50

17-2

0940718402
ref: 17-2
MODEL M

CLAMP(L:165)

€ 2.50

17-3

0940714403
ref: 17-3
MODEL M

CLAMP(L:125)

€ 2.50

18

1662012D10
ref: 18

BRACKET,OIL COOLER UPR

€ 14.50

19

0711008125
ref: 19

PLUG, HEAD COVER

€ 2.50
