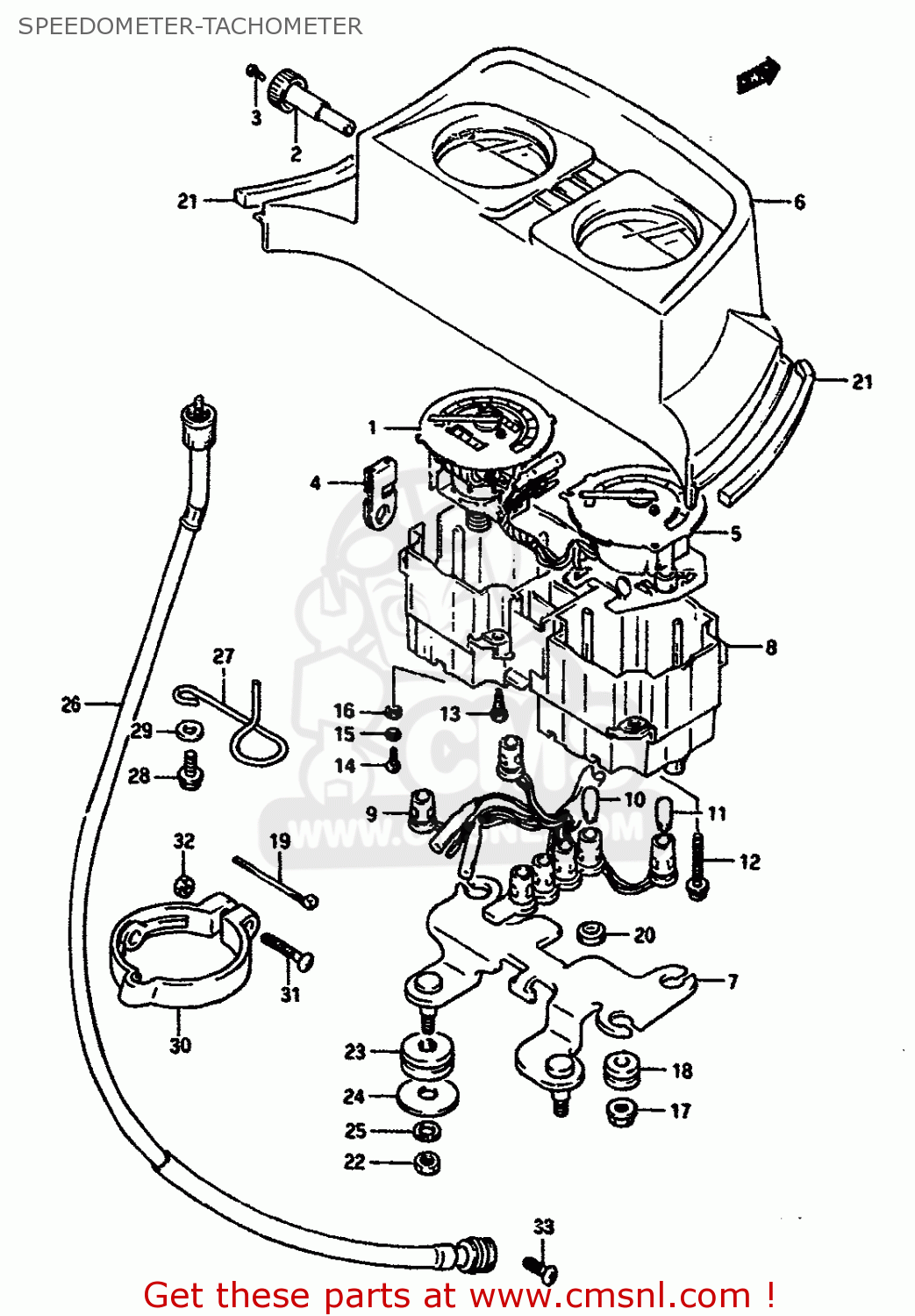

SPEEDOMETER-TACHOMETER

ref

part #

description

quantity

1-1

3412012D10
ref: 1-1

SPEEDOMETER (KILO)

€ 349.00

1-2

3412012D00
ref: 1-2

SPEEDOMETER (MILE/KILO)

€ 0.00

2

3412412D00
ref: 2

KNOB

€ 11.50

3

3418414A00
ref: 3

SCREW,TRIP KNOB

€ 2.00

4

3419614A00
ref: 4

CUSHION,METER

€ 11.50

5

3422012D00
ref: 5

TACHOMETER

€ 225.50

6-1

3415012D00
ref: 6-1

HOOD,METER

€ 60.50

6-2

3415012D10
ref: 6-2
E4,E15,E16,E17,E18,E

HOOD,METER

€ 60.50

7

3495012D00
ref: 7

BRACKET

€ 36.00

8

3411144B10
ref: 8

CASE,METER

€ 54.00

9

3417012D00
ref: 9

SOCKET

€ 74.50

10

0947112100
ref: 10

BULB(12V1.7W,WB372,T7)

€ 2.00

11

0947112085
ref: 11

BULB(12V3W,WB371,T7)

€ 3.00

12

3428314A00
ref: 12

SCREW

€ 2.00

13

0311205129
ref: 13

SCREW

€ 1.50

14

0211203106
ref: 14

SCREW

€ 1.50

15

0832121036
ref: 15

LOCK WASHER

€ 1.50

16

0832221036
ref: 16

WASHER 3.3X8X0

€ 1.50

17

3418514A00
ref: 17

NUT

€ 5.50

18

3499643410
ref: 18

CUSHION,METER

€ 3.00

19

3495416730
ref: 19

CLAMP

€ 2.50

20

3419414A00
ref: 20

CAP

€ 8.00

21

3499712D00
ref: 21

CUSHION

€ 3.50

22

0831011065
ref: 22

NUT

€ 2.00

23

0932008053
ref: 23

CUSHION

€ 5.00

24

0916006074
ref: 24

WASHER (6.5X24X1.6)

€ 2.00

25

0832121064
ref: 25

WASHER,LOCK

€ 2.00

26-1

3491012D00
ref: 26-1
MODEL L

CABLE ASSY,SPEEDOMETER

€ 60.50

26-2

3491012D01
ref: 26-2
MODEL M

CABLE ASSY,SPEEDOMETER

€ 60.50

27

3493812D00
ref: 27

GUIDE,CABLE

€ 3.00

28

0151706108
ref: 28

BOLT

€ 2.50

29

0832221064
ref: 29

WASHER

€ 2.00

30-1

3493844B010JW
ref: 30-1
MODEL L

CLAMP,METER CABLE (WHITE)

€ 8.00

30-2

3493844B010NF
ref: 30-2
MODEL L

CLAMP,CABLE (BLUE)

€ 8.00

30-3

3493844B0128V
ref: 30-3

CLAMP,SPEEDOMETER CABLE

€ 5.50

30-4

3493844B011AY
ref: 30-4
MODEL M

CLAMP,METER CABLE (BLUE)

€ 8.00

30-5

3493844B0130H
ref: 30-5
MODEL M

CLAMP,SPEEDOMETER CABLE

€ 8.00

31

0211205257
ref: 31

SCREW

€ 2.00

32

0831011057
ref: 32

NUT 5MM

€ 2.50

33

0211205168
ref: 33

SCREW

€ 2.50

all assemblies
