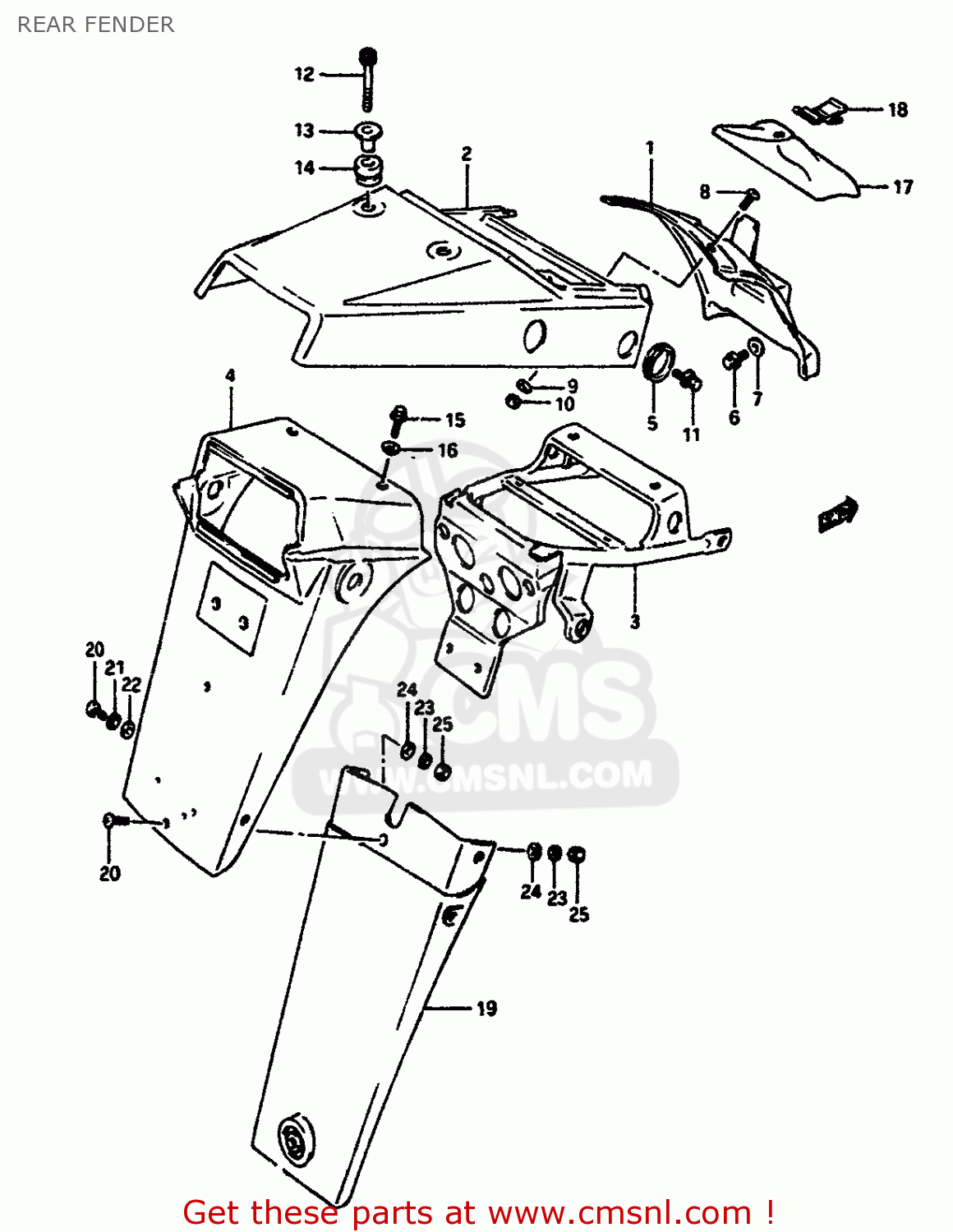

REAR FENDER

ref

part #

description

quantity

1

6311012D00
ref: 1

BODY,REAR FENDER FRONT

€ 157.00

2-1

6311312D100JW
ref: 2-1
MODEL L/M,FOR 0JW

BODY,REAR FENDER REAR (WHITE)

€ 143.50

2-2

6311312D100NF
ref: 2-2
MODEL L,FOR 0NF

BODY,REAR FENDER REAR (BLUE)

€ 143.50

2-3

6311312D1028V
ref: 2-3
MODEL L,FOR 28V

BODY,REAR FENDER REAR (RED)

€ 143.50

2-4

6311312D1012F
ref: 2-4
MODEL M,FOR 12F

BODY,REAR FENDER REAR (BLUE)

€ 143.50

2-5

6311312D1022P
ref: 2-5
MODEL M,FOR 22P

BODY,REAR FENDER REAR (RED)

€ 143.50

3

6312012D00
ref: 3

REINFORCEMENT,FENDER

€ 98.00

4-1

6331112D00
ref: 4-1

EXTENSION,RR FENDER

€ 34.00

4-2

6331112D10
ref: 4-2
E15,E16,E17,E18,E25,

EXTENSION,REAR FENDER

€ 34.50

4-3

6331112D20
ref: 4-3
E22

EXTENSION,REAR FENDER

€ 34.50

5

0930830006
ref: 5

GROMMET

€ 3.50

6

0113706165
ref: 6

BOLT

€ 2.50

7

0916906026
ref: 7

WASHER

€ 2.00

8

0913605047
ref: 8

SCREW

€ 1.50

9

0916005031
ref: 9

WASHER

€ 1.50

10

0831921055
ref: 10

NUT 8MM

€ 1.50

11

0117406165
ref: 11

BOLT

€ 2.50

12

0711008508
ref: 12

BOLT ,8X50

€ 3.50

13

0918008157
ref: 13

SPACER(8.6X12X18.5)

€ 5.50

14

0932012003
ref: 14

CUSHION

€ 6.00

15

0151706164
ref: 15

BOLT

€ 2.50

16

0916906016
ref: 16

WASHER

€ 1.50

17

0980020027
ref: 17

TOOL SET

€ 55.00

18

0946200091
ref: 18

BAND

€ 7.50

19-1

6333144B00
ref: 19-1
E15,E16,E17,E18,E25

MUD GUARD,REAR FENDER

€ 29.00

19-2

6333144B20
ref: 19-2
E22

MUD GUARD,REAR FENDER

€ 22.00

19-3

6333144B30
ref: 19-3
E39

MUD GUARD,REAR FENDER

€ 29.00

20

0214206164
ref: 20
E15,E16,E17,E18,E22,

SCREW

€ 2.50

21

0916006020
ref: 21
E15,E16,E17,E18,E22,

WASHER

€ 2.00

22

0916906055
ref: 22
E15,E16,E17,E18,E22,

WASHER

€ 2.00

23

0832121066
ref: 23
E15,E16,E17,E18,E22,

WASHER,LOCK

€ 2.00

24

0916006019
ref: 24
E15,E16,E17,E18,E22,

WASHER(6.5X16X1.2)

€ 1.50

25

0831022066
ref: 25
E15,E16,E17,E18,E22,

NUT

€ 2.00
