STAND-REAR BRAKE
DR650RSU 1990 (L) GERMANY (E22)

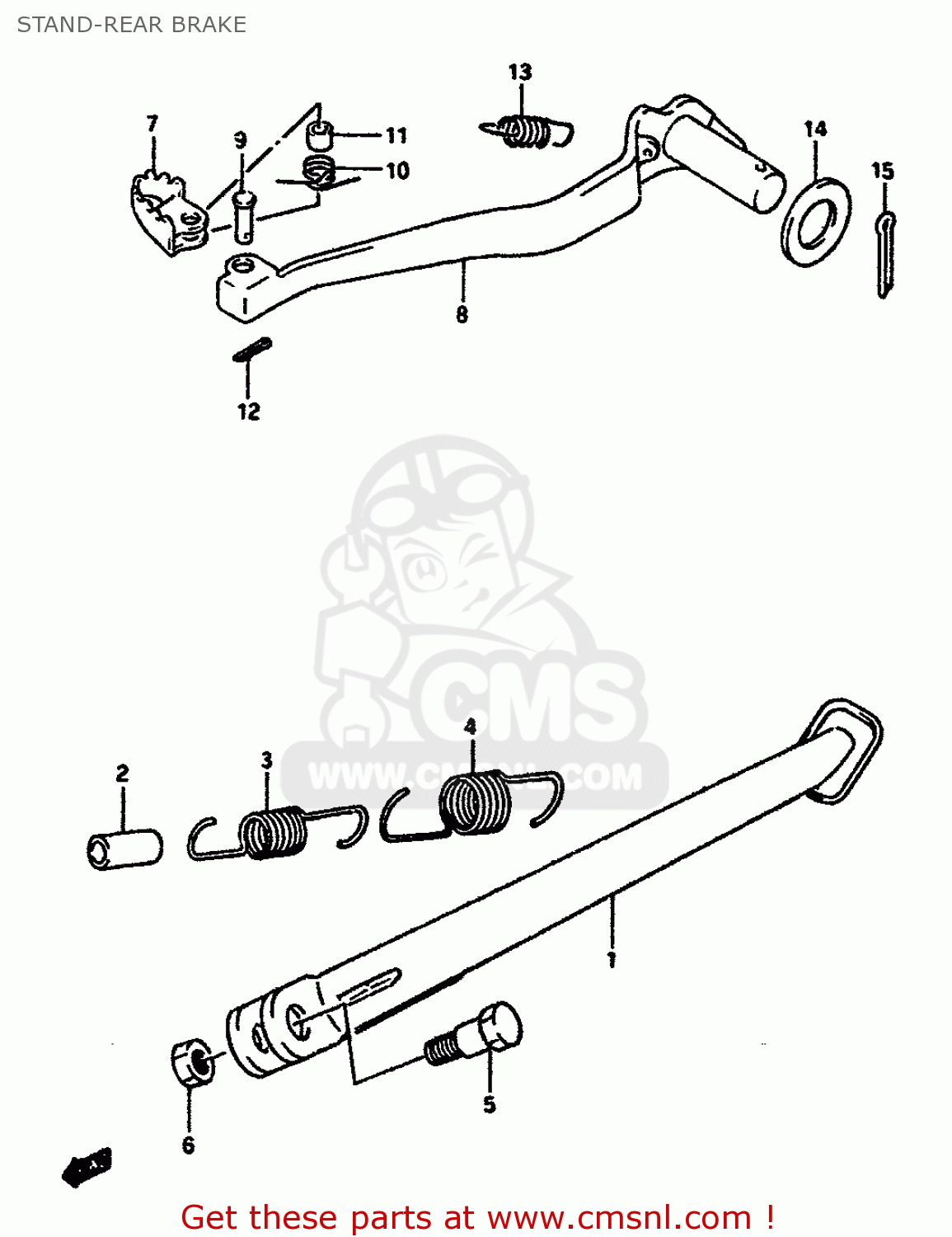

Stand-rear brake diagram DR650RSU 1990 (L) GERMANY (E22)
STAND-REAR BRAKE DR650RSU 1990 (L) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4231014A20019
ref: 1-1
MODEL L
STAND,SIDE
€ 662.50
1-2
4231014A21019
ref: 1-2
MODEL M
STAND,PROP
€ 662.50
2
0935270103300
ref: 2
HOSE
€ 8.00
3
0944314030
ref: 3
SPRING
€ 6.00
4
0944322003
ref: 4
SPRING
€ 7.00
5
0911110047
ref: 5
BOLT(10X30)
€ 4.50
6
0831022107
ref: 6
NUT
€ 2.50
7
4311014130
ref: 7
PEDAL,BRAKE
€ 6.00
8
4312012D00
ref: 8
ARM,BRAKE PEDAL
€ 51.50
9
0920006038
ref: 9
PIN
€ 2.00
10
0944411004
ref: 10
SPRING
€ 3.00
11
0918006137
ref: 11
SPACER(9.2X9X6.5)
€ 2.50
12
0411120158
ref: 12
PIN
€ 1.50
13
0944310033
ref: 13
SPRING
€ 3.50
14
0916017021
ref: 14
WASHER (17.6X34X2)
€ 2.00
15
0411130308
ref: 15
COTTER PIN
€ 1.50
