BATTERY

GN250E 1999 (X) GENERAL (E01)

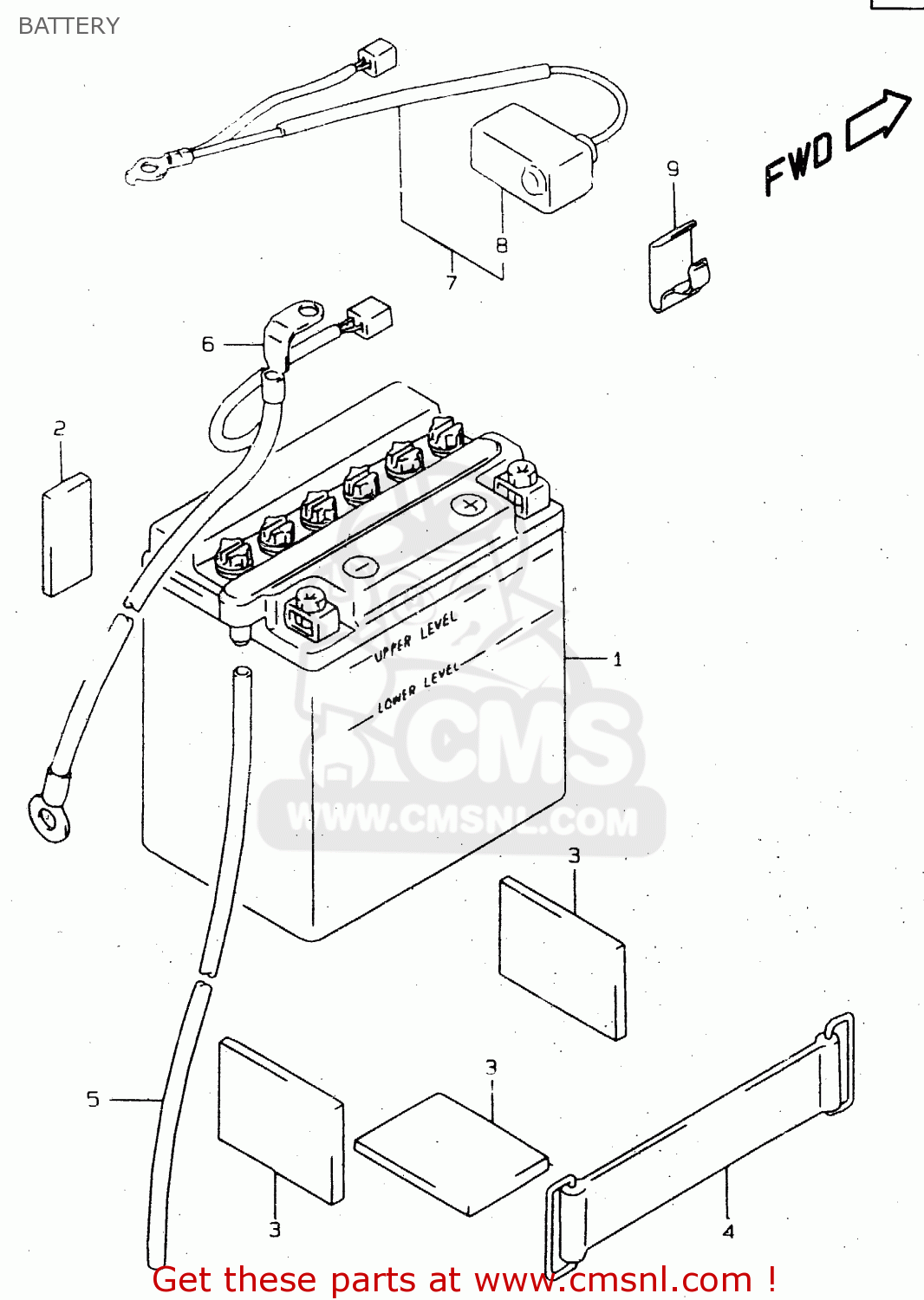

Battery diagram GN250E 1999 (X) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

3361044010
ref: 1

BATTERY ASSY (12V)

€ 74.50

3365228000
ref: 2

CUSHION 20X45X6

€ 6.00

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

0946200009
ref: 4

BAND

€ 6.50

3368016A10
ref: 5
L:780->500

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3386006B12
ref: 6

WIRE,BATTERY MINUS LEAD

€ 17.00

3382038360
ref: 7

WIRE, BATTERY (+) LEAD

€ 17.50

3362438310
ref: 8

CAP,BATTERY PLUS TERMINAL

€ 5.00

3679146700
ref: 9
E2,E4,E22,E24,E25,E3

HOLDER,FUSE CASE

€ 9.00
