TRANSMISSION
GN250E 1999 (X) GENERAL (E01)

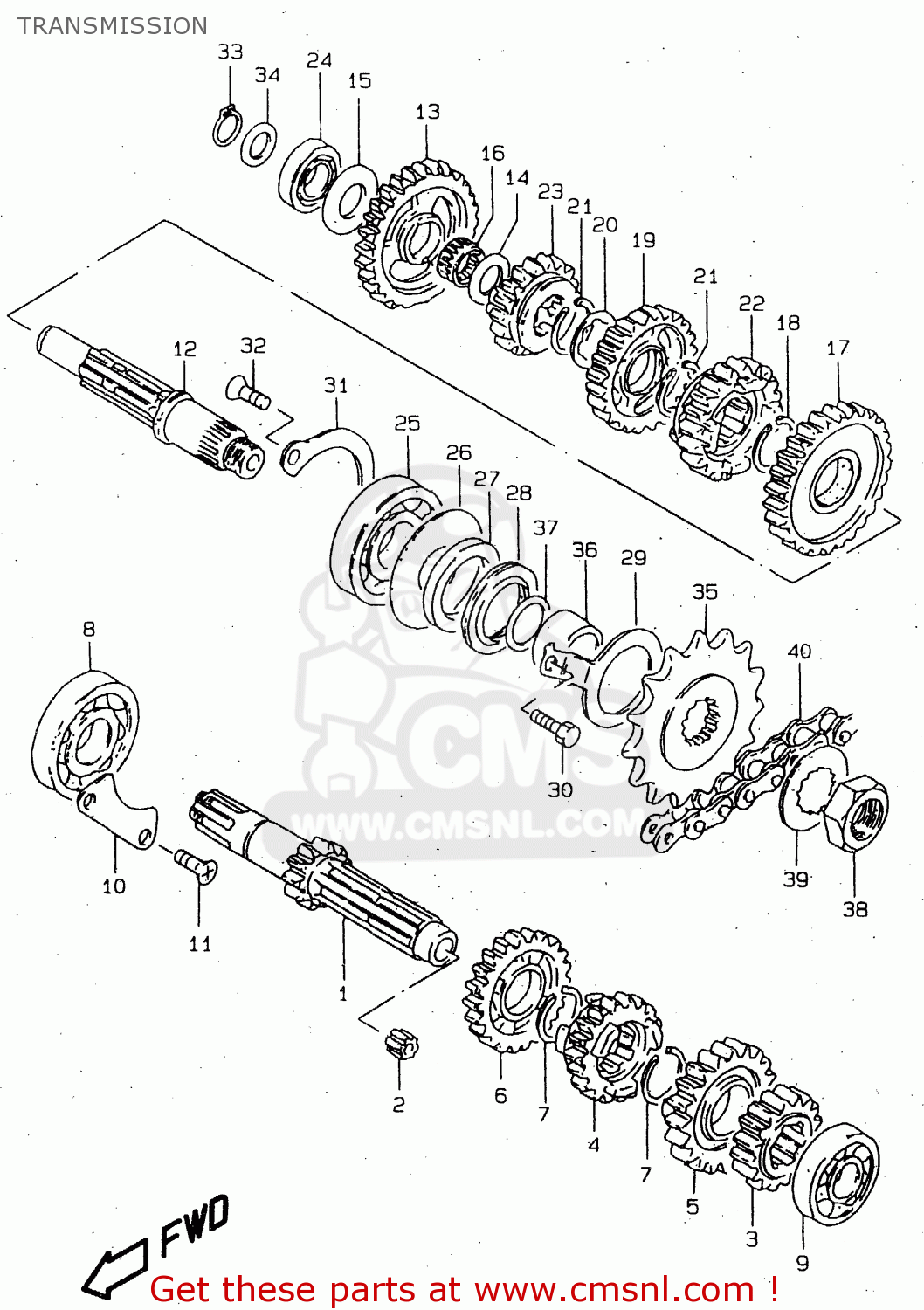

Transmission diagram GN250E 1999 (X) GENERAL (E01)
TRANSMISSION GN250E 1999 (X) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2412038201
ref: 1
MODEL T
SHAFT,COUNTER
€ 105.00
1
2412038202
ref: 1
MODEL W/X
SHAFT,COUNTER (NT:11)
€ 105.00
2
2412538201
ref: 2
BUSH
€ 3.50
3
2422132412
ref: 3
GEAR,2ND DRIVE(NT:16)
€ 89.50
4
2423138201
ref: 4
GEAR,3RD DRIVE(NT:19)
€ 95.50
5
2424132400
ref: 5
MODEL T
GEAR,FOURTH DRIVE
€ 57.00
5
2424132401
ref: 5
MODEL W/X
GEAR,4TH DRIVE(NT:20)
€ 57.00
6
2425132402
ref: 6
<-24251-32401
GEAR,FIFTH DRIVE (NT:22)
€ 82.50
7
0938022006
ref: 7
CIRCLIP
€ 3.00
8
0926222028
ref: 8
BEARING(22X56X16)
€ 59.50
9
0926217018
ref: 9
BEARING
€ 25.00
10
2474138200
ref: 10
RETAINER,CNTR SHAFT BEARING
€ 4.50
11
0211206123
ref: 11
SCREW
€ 1.50
12
2413038300
ref: 12
MODEL T
SHAFT,DRIVE
€ 164.50
12
2413038301
ref: 12
MODEL W/X
SHAFT,DRIVE
€ 164.50
13
2431132401
ref: 13
GEAR,1ST DRIVEN(NT:29)
€ 89.50
14
0821117281
ref: 14
MODEL T
WASHER
€ 3.00
14
0918117195
ref: 14
MODEL W/X
SHIM(17X28X1)
€ 3.00
15
0821117363
ref: 15
WASHER
€ 2.00
16
0926317004
ref: 16
BEARING(17X21X9.8)
€ 7.00
17
2432032411
ref: 17
GEAR,2ND DRIVEN(NT:27)
€ 87.50
18
0938022006
ref: 18
CIRCLIP
€ 3.00
19
2433038200
ref: 19
MODEL T
GEAR,THIRD DRIVEN
€ 74.00
19
2433038201
ref: 19
MODEL W
GEAR,THIRD DRIVEN (NT:24)
€ 74.00
19
2433038202
ref: 19
MODEL X
GEAR,3RD DRIVEN(NT:24)
€ 74.00
20
0916722011
ref: 20
WASHER,LOCK
€ 3.00
21
0938022006
ref: 21
CIRCLIP
€ 3.00
22
2434138200
ref: 22
MODEL T/W
GEAR,FOURTH DRIVEN
€ 92.50
22
2434138201
ref: 22
MODEL X
GEAR,4TH DRIVEN(NT:20)
€ 92.50
23
2435138201
ref: 23
<-24351-38200
GEAR,5TH DRIVEN(NT:18)
€ 84.50
24
0926417001
ref: 24
BEARING(17X36X12)
€ 27.00
25
0926222013
ref: 25
BEARING(22X56X16)
€ 58.00
26
0916035007
ref: 26
WASHER(35X55X1)
€ 2.50
27
0928230003
ref: 27
OIL SEAL (30X43X5)
€ 9.00
28
0928330040
ref: 28
OIL SEAL (30X43X7)
€ 10.50
29
2475138201
ref: 29
RETAINER,DRIVE SHAFT OIL SEAL
€ 8.00
30
0150006123
ref: 30
BOLT
€ 2.00
31
2475232400
ref: 31
RETAINER,DRIVE SHAFT BEARING
€ 3.50
32
0212206123
ref: 32
SCREW
€ 3.00
33
0938017001
ref: 33
MODEL T
CIRCLIP
€ 2.00
33
0833131176
ref: 33
MODEL W/X
CIRCLIP,17MM
€ 2.00
34
0821117241
ref: 34
MODEL T
WASHER
€ 2.00
34
0918117139
ref: 34
MODEL W/X
SHIM(17X24X1)
€ 3.00
35
2751132401
ref: 35
SPROCKET,ENGINE(NT:15)
€ 19.00
36
2753138300
ref: 36
SPACER
€ 32.50
37
0928021008
ref: 37
O RING(D:2.5,ID:21)
€ 2.00
38
0914018008
ref: 38
NUT
€ 4.50
39
0916722012
ref: 39
WASHER,LOCK
€ 1.50
40
2760014A10100
ref: 40
CHAIN(DID520VC5,100LE)
€ 98.50
