FRONT MASTER CYLINDER

GN250E 1999 (X) GENERAL (E01)

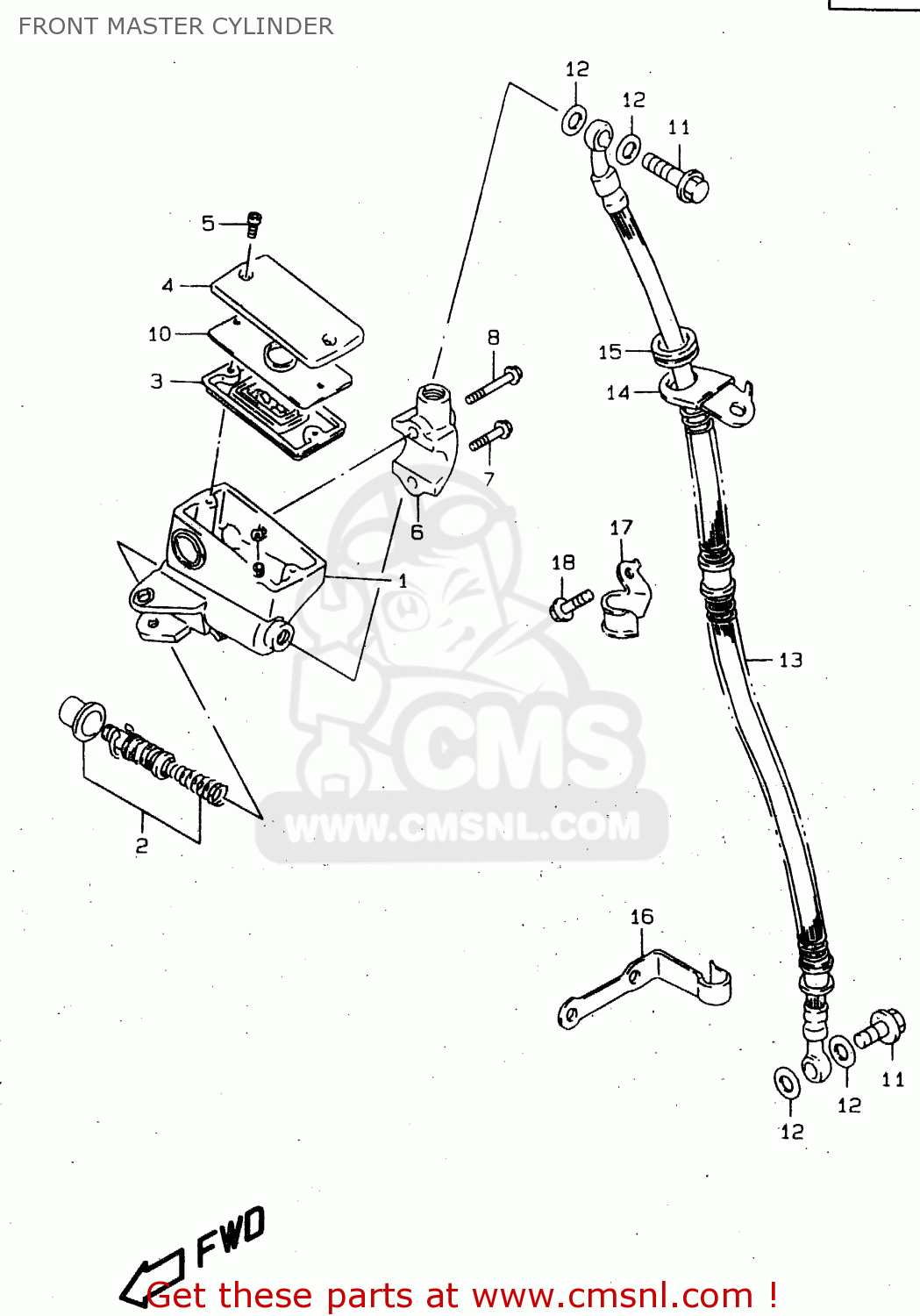

Front master cylinder diagram GN250E 1999 (X) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

5960010D20
ref: 1

CYLINDER ASSY,FR MASTER

€ 197.00

5960045850
ref: 2

PISTON & CUP SET

€ 38.50

5966749460
ref: 3

5966749460

5966941C00
ref: 4

CAP

€ 30.00

6968949300
ref: 5

SCREW

€ 1.50

5967144300
ref: 6

HOLDER

€ 14.50

5967519C00
ref: 7

BOLT(6X25)

€ 3.00

5967519C10
ref: 8

BOLT(6X38)

€ 4.00

5966448B00
ref: 9

PROTECTOR

€ 8.00

5966841C00
ref: 10

PLATE,DIAPHRAGM

€ 8.00

0936010039
ref: 11

BOLT UNION

€ 6.50

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

5948037362
ref: 13

HOSE,FR BRAKE

€ 111.50

5924345010
ref: 14

GUIDE,BRAKE HOSE

€ 8.50

0930814007
ref: 15

GROMMET

€ 4.00

5926838311
ref: 16

CLAMP,BRAKE HOSE

€ 6.00

5924611400
ref: 17

GUIDE,BRAKE HOSE NO.3

€ 4.50

0155006103
ref: 18

BOLT

€ 2.50
