REAR BRAKE

GN250E 1999 (X) GENERAL (E01)

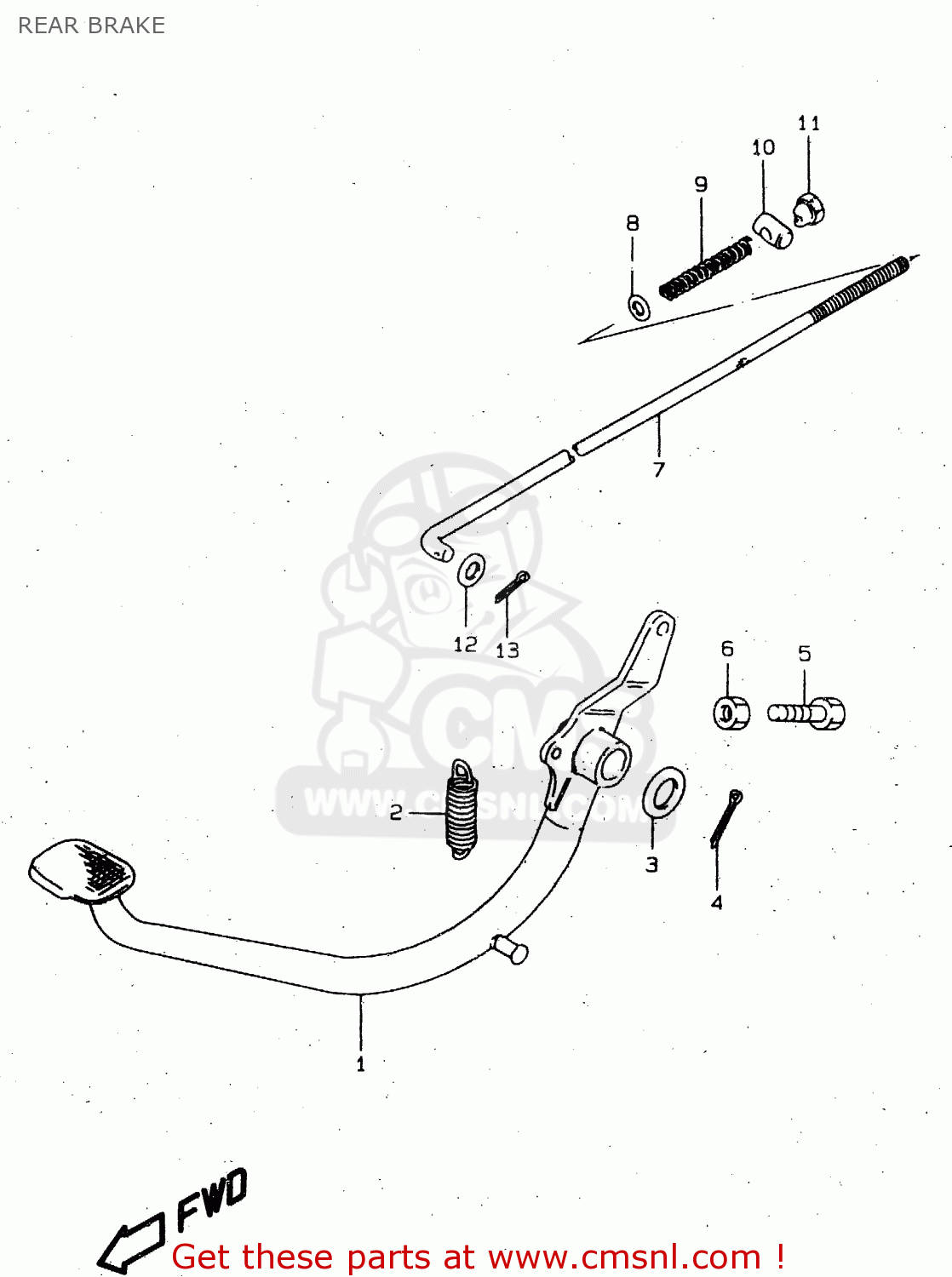

Rear brake diagram GN250E 1999 (X) GENERAL (E01)

REAR BRAKE GN250E 1999 (X) GENERAL (E01)

REAR BRAKE GN250E 1999 (X) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

1

4311038301
ref: 1

PEDAL,BRAKE

€ 104.00

2

0944314013
ref: 2

SPRING

€ 21.50

3

0916015002
ref: 3

WASHER(15.5X26X2.3)

€ 2.00

4

0411130308
ref: 4

COTTER PIN

€ 1.50

5

0910006009
ref: 5

BOLT(6X23)

€ 1.50

6

0831000063
ref: 6

NUT 6MM

€ 2.00

7

4330038300
ref: 7

ROD ASSY,RR BRAKE

€ 21.00

8

0832201063
ref: 8

WASHER

€ 2.00

9

0944009004
ref: 9

SPRING

€ 2.00

10

0920913018
ref: 10

PIN(13X18)

€ 3.50

11

0915006014
ref: 11

NUT

€ 3.50

12

0832201053
ref: 12

WASHER

€ 2.50

13

0411120208
ref: 13

PIN 20X20

€ 1.50
