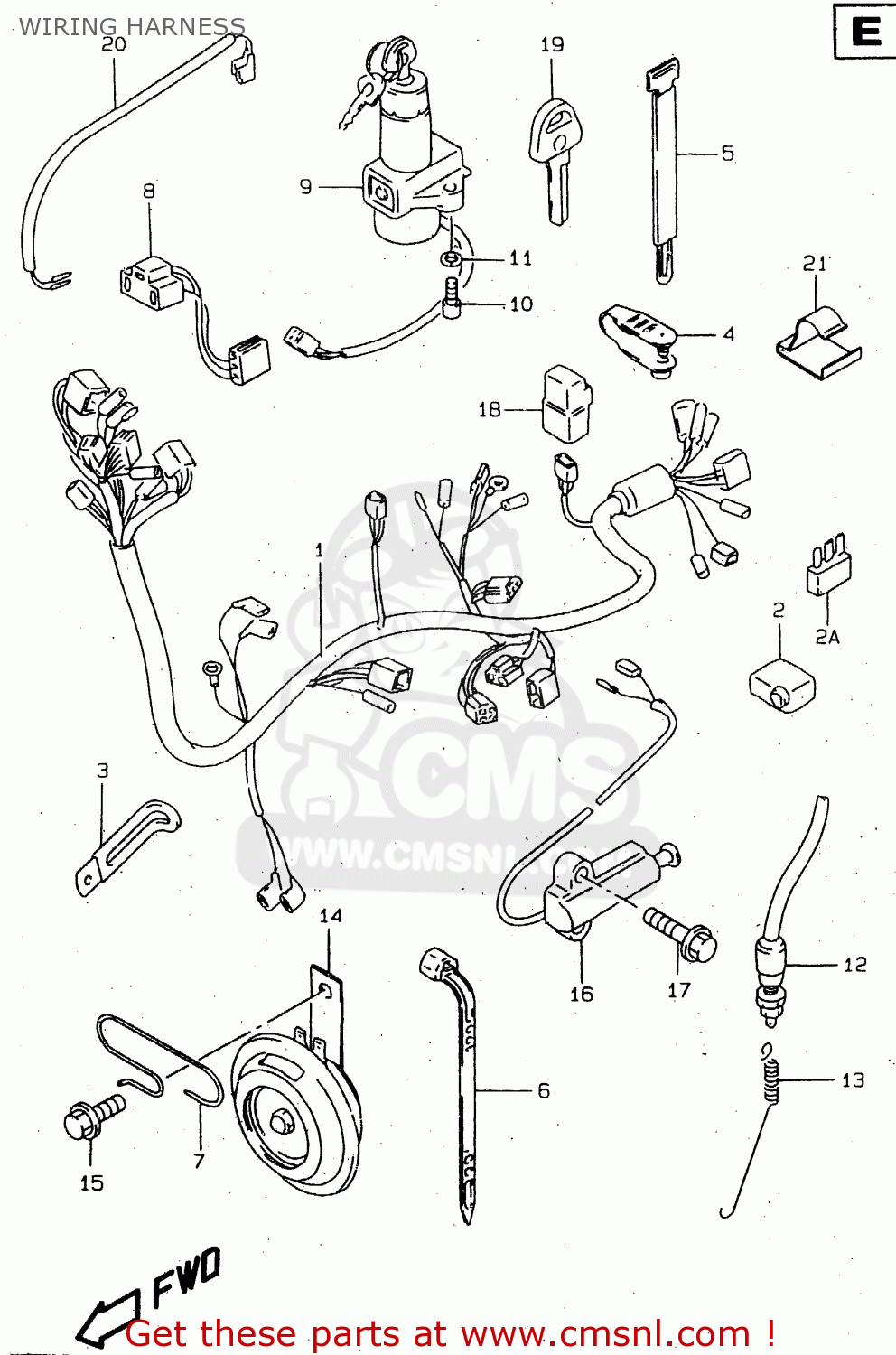

WIRING HARNESS

ref

part #

description

quantity

1

3661038360
ref: 1

HARNESS,WIRING

€ 308.50

2

3362438310
ref: 2

CAP,BATTERY PLUS TERMINAL

€ 5.00

2A

3661138A00
ref: 2A

DIODE(STANLEY DE8804)

€ 13.00

3

0940408206
ref: 3
<-09404-08418

CLAMP(L:65 T:0.8)

€ 3.50

4

0940705403
ref: 4

CLAMP,L:88

€ 1.50

5

0940725401
ref: 5

CLAMP(L:235)

€ 4.00

6

0940714403
ref: 6

CLAMP(L:125)

€ 2.50

6

0940718403
ref: 6
<-09407-18402

CLAMP L:165

€ 2.50

7

3661937300
ref: 7

CLAMP,WIRING HARNESS

€ 0.00

8

3685330500
ref: 8

LEAD WIRE,HEADLAMP

€ 13.00

9

3711049201
ref: 9
E22

SWITCH ASSY,IGNITION

€ 86.00

9

3710049201
ref: 9
E1,E2,E4,E24,E34,P37

SWITCH ASSY,IGNITION

€ 141.00

10

0713006165
ref: 10

BOLT

€ 3.00

11

0832101067
ref: 11

WASHER,LOCK

€ 2.50

12

3774031D00
ref: 12

SWITCH ASSY,STOP LAMP

€ 20.50

13

0944306031
ref: 13

SPRING

€ 21.00

14

3850038361
ref: 14
E2,E24,P37

HORN ASSY

€ 29.00

14

3850038390
ref: 14
E4,E22,E25,E34,E39,E

HORN ASSY

€ 61.50

15

0155008163
ref: 15

BOLT

€ 3.00

16

3784044X50
ref: 16

SWITCH ASSY,SIDE STAND

€ 75.50

17

0155006163
ref: 17

BOLT

€ 2.50

18

3874024X50
ref: 18

RELAY ASSY

€ 37.50

19

3714647010
ref: 19
OPT

KEY,BLANK

€ 15.00

20

3685238360
ref: 20

WIRE,STOP LAMP SWITCH LEAD

€ 11.50
