STAND

GN250E 1999 (X) GENERAL (E01)

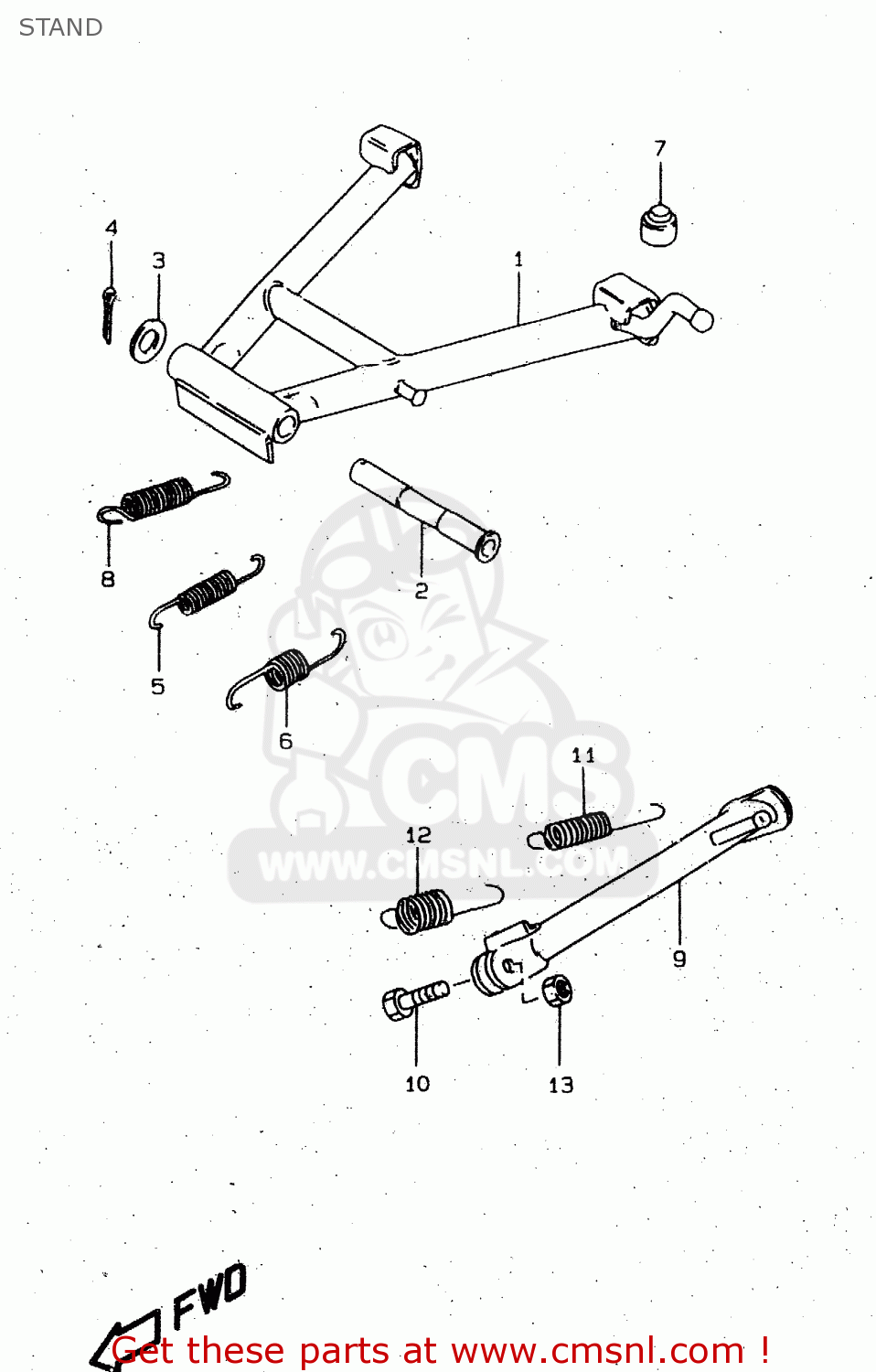

Stand diagram GN250E 1999 (X) GENERAL (E01)

STAND GN250E 1999 (X) GENERAL (E01)

STAND GN250E 1999 (X) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

1

4210038301
ref: 1

STAND,CTR

€ 93.50

2

4221136504
ref: 2

SHAFT,CTR STAND

€ 20.00

3

0916016031
ref: 3

WASHER(16.2X30X2.6)

€ 3.50

4

0411130308
ref: 4

COTTER PIN

€ 1.50

5

0944315013
ref: 5
E22

SPRING

€ 22.50

6

0944322003
ref: 6
E22

SPRING

€ 7.00

7

0932110001
ref: 7

CUSHION

€ 2.50

8

0944318006
ref: 8

SPRING

€ 5.50

9

4231038351
ref: 9

STAND,PROP

€ 141.50

10

0911110047
ref: 10

BOLT(10X30)

€ 4.50

11

0944312025
ref: 11

SPRING

€ 18.50

12

0944319006
ref: 12

SPRING

€ 18.00

13

0914010043
ref: 13
MODEL T

NUT

€ 2.00

13

0915910027
ref: 13
MODEL W

NUT

€ 3.00

13

0831921103
ref: 13
MODEL X

NUT

€ 2.00
