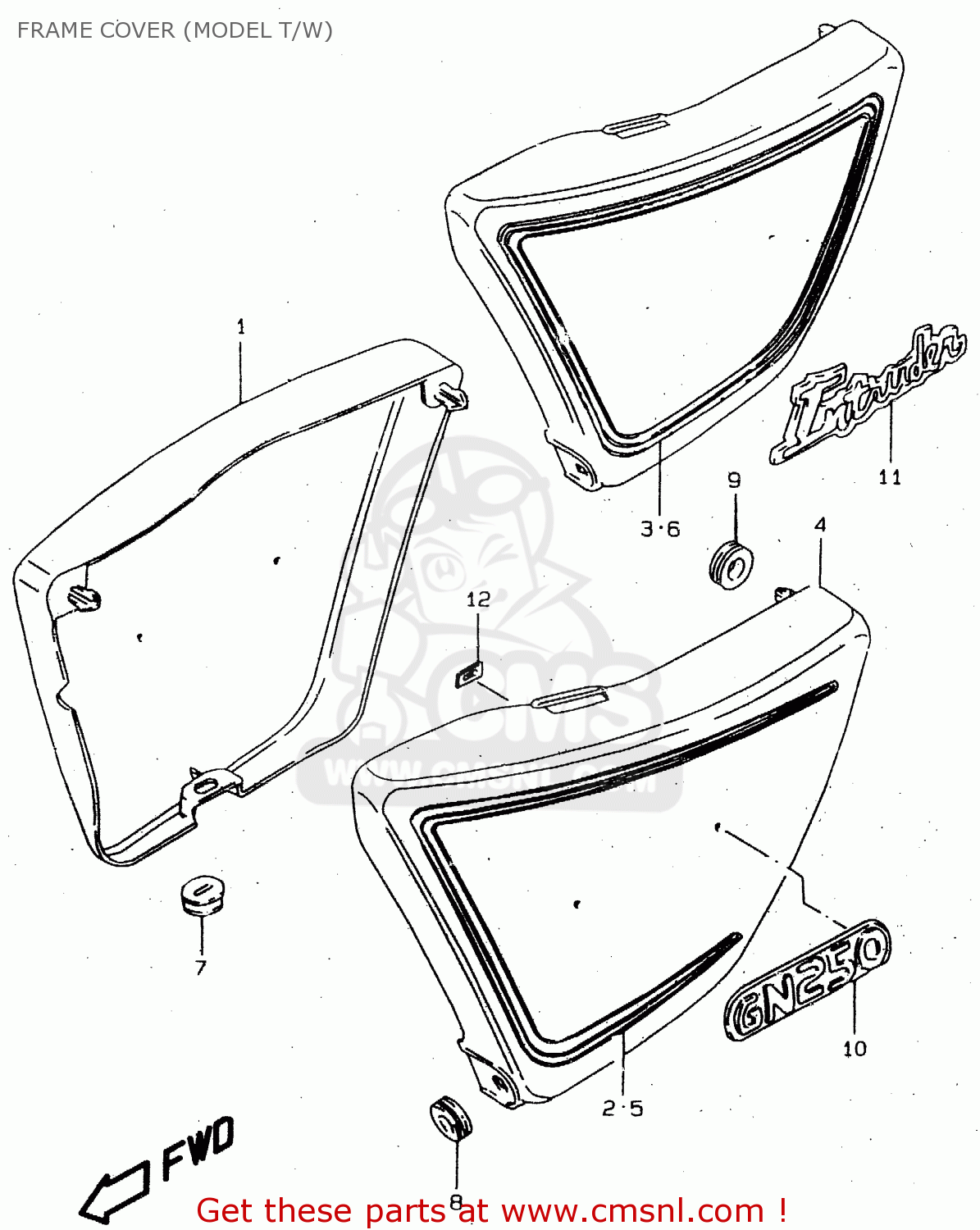

FRAME COVER (MODEL T/W)

ref

part #

description

quantity

1

471113830119A
ref: 1

COVER,FRAME,R(RED)

€ 261.50

1

471113830133J
ref: 1

COVER,FRAME,R(BLACK)

€ 272.50

1

471113830120F
ref: 1
MODEL T P37

COVER, FRAME RH (MAROON)

€ 26.50

2

681303831062F
ref: 2
MODEL T FOR 33J

TAPE SET,FRAME COVER,R

€ 17.00

2

68130383109WE
ref: 2
MODEL T FOR 19A

TAPE SET,FRM COVER STRIPE,R

€ 11.50

3

6813038340H5T
ref: 3
MODEL T P37 FOR 33J

TAPE SET,FRAME COVER,R

€ 29.50

3

6813038340H5U
ref: 3
MODEL T P37 FOR 20F

TAPE SET, RH

€ 0.00

3

6813038340J2G
ref: 3
MODEL W FOR 33J

TAPE SET,FRAME COVER STRIPE,R

€ 29.50

3

6813038340J2H
ref: 3
MODEL W FOR 19A

TAPE SET,FRAME COVER STRIPE,R

€ 34.00

4

472113830119A
ref: 4

COVER,FRAME,LEFT

€ 19.00

4

472113830133J
ref: 4

COVER, FRAME LH (BLACK)

€ 19.00

4

472113830120F
ref: 4
MODEL T P37

COVER, FRAME LH (MAROON)

€ 19.00

5

681403831062F
ref: 5
MODEL T FOR 33J

TAPE SET,FRAME COVER,L

€ 9.50

5

68140383109WE
ref: 5
MODEL T FOR 19A

TAPE SET,FRM COVER STRIPE,L

€ 14.00

6

6814038340H5T
ref: 6
MODEL T P37 FOR 33J

TAPE SET,FRAME COVER,L

€ 29.50

6

6814038340H5U
ref: 6
MODEL T P37 FOR 20F

TAPE SET, LH

€ 0.00

6

6814038340J2G
ref: 6
MODEL W FOR 33J

TAPE SET,FRAME COVER STRIPE,L

€ 21.00

6

6814038340J2H
ref: 6
MODEL W FOR 19A

TAPE SET,FRAME COVER STRIPE,L

€ 20.00

7

0932003004
ref: 7

CUSHION

€ 2.00

8

0932008013
ref: 8

CUSHION

€ 4.00

9

0932008018
ref: 9

CUSHION

€ 4.00

10

6813138310
ref: 10

EMBLEM,GN250

€ 18.00

11

6813138330
ref: 11
MODEL T P37

EMBLEM,FRAME COVER

€ 15.50

12

0914803003
ref: 12

NUT

€ 2.00

all assemblies
