REAR COMBINATION LAMP (E25,E39)
GN250E 1999 (X) GENERAL (E01)

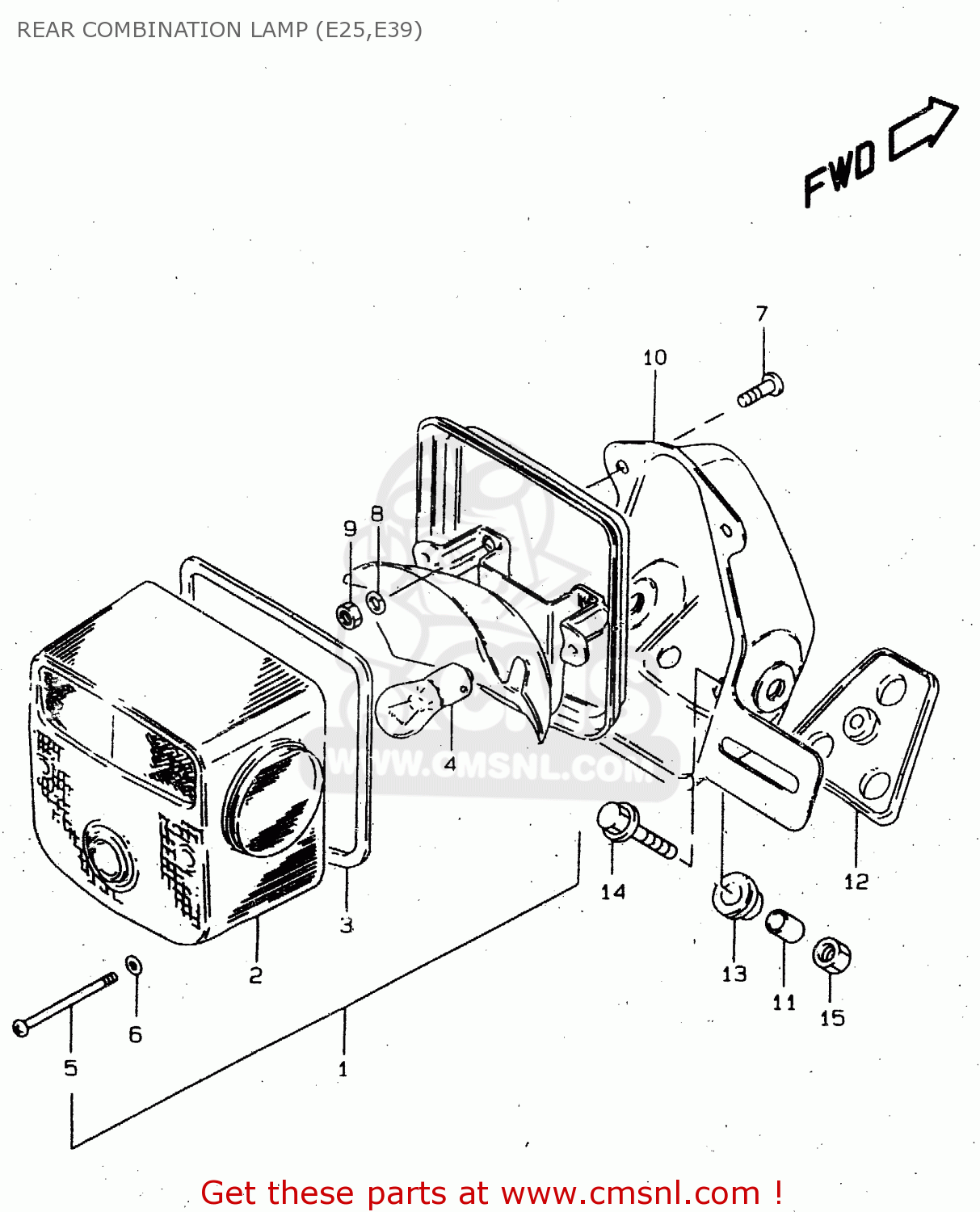

Rear combination lamp (e25,e39) diagram GN250E 1999 (X) GENERAL (E01)
REAR COMBINATION LAMP (E25,E39) GN250E 1999 (X) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3572038361
ref: 1
LAMP UNIT,RR COMBNATION
€ 136.00
2
3571238361
ref: 2
LENS
€ 51.00
3
3571330510
ref: 3
GASKET (NAS)
€ 6.00
4
0947112057
ref: 4
BULB 12V21/5W
€ 6.00
5
0912504002
ref: 5
SCREW (4X55)
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
0211206167
ref: 7
SCREW
€ 2.50
8
0832101067
ref: 8
WASHER,LOCK
€ 2.50
9
0831000067
ref: 9
NUT
€ 2.50
10
3573038380
ref: 10
BRACKET UNIT,TAIL LAMP
€ 51.00
11
3576626470
ref: 11
SPACER
€ 2.00
12
3576526470
ref: 12
CUSHION
€ 10.00
13
3576426470
ref: 13
CUSHION
€ 2.50
14
0911606167
ref: 14
BOLT(6X20)
€ 2.00
15
0831000063
ref: 15
NUT 6MM
€ 2.00
