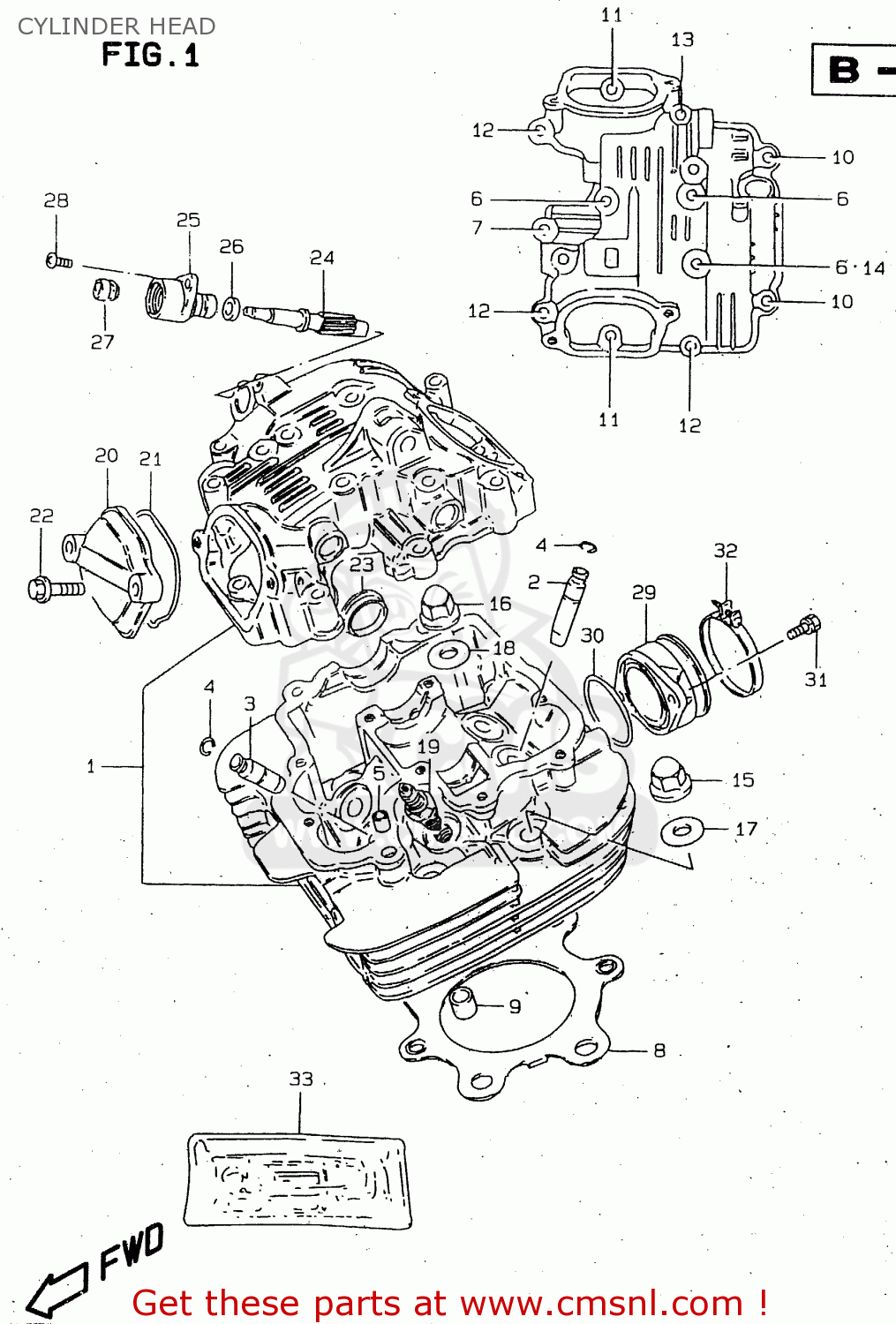

CYLINDER HEAD

ref

part #

description

quantity

1

1110038202
ref: 1

HEAD,CYLINDER

€ 787.00

2

1111538270
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111505270
ref: 3

GUIDE,VALVE

€ 18.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

0155006607
ref: 6

BOLT

€ 2.50

7

0155006307
ref: 7

BOLT

€ 2.00

8

1114138200
ref: 8
MODEL T/W

GASKET,CYLINDER HEAD (NAS)

€ 37.50

8

1114138201
ref: 8
MODEL X

GASKET,CYLINDER HEAD (NAS)

€ 37.50

9

0421113189
ref: 9

PIN

€ 2.50

10

0910306052
ref: 10

BOLT(6X115)

€ 5.00

11

0155006307
ref: 11

BOLT

€ 2.00

12

0155006457
ref: 12

BOLT

€ 2.50

13

0155006607
ref: 13

BOLT

€ 2.50

14

0916806023
ref: 14

GASKET(5.8X13X1.2) (NAS)

€ 2.00

15

0915910026
ref: 15

NUT

€ 6.00

16

0915910069
ref: 16

NUT

€ 5.00

17

0916010060
ref: 17
<-09160-10039

WASHER (10.5X22X2.3)

€ 2.50

18

0916810017
ref: 18

GASKET(10.5X22X2) (NAS)

€ 3.50

19

0948200149
ref: 19
MODEL T

SPARK PLUG DR8ES-L

€ 3.50

19

0948200399
ref: 19
MODEL W/X

PLUG,SPARK(DR8EA)

€ 3.50

19

0948200223
ref: 19

PLUG,SPARK(X24ESR-U)

€ 3.50

19

0948200144
ref: 19
MODEL T E1,E24

SPARK PLUG D8EA

€ 3.50

19

0948200145
ref: 19
MODEL T E1,E24

SPARK PLUG X24ES-U

€ 3.50

20

1117538202
ref: 20

CAP,INSPECTION

€ 23.50

12

0928055003
ref: 12

O RING(D:2.4,ID:23)

€ 4.50

22

0155006257
ref: 22

BOLT

€ 2.50

23

0924130004
ref: 23

PLUG(OD:30)

€ 6.50

24

2643137401
ref: 24

GEAR,TACHOMETER DRIVEN

€ 35.00

25

2644149000
ref: 25

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

26

2645145000A
ref: 26

SEAL,TACHOMETER DRIVEN

€ 4.50

27

0928905002
ref: 27

SEAL,OIL(5X12X8)

€ 11.00

28

0912805101
ref: 28

SCREW(5X12)

€ 1.50

29

1311038200
ref: 29

PIPE,INTAKE

€ 38.50

30

0928040010
ref: 30
<-09280-40003

O RING(D:2.4,ID:39.7)

€ 3.50

31

0211236163
ref: 31

SCREW

€ 2.50

32

0940252208
ref: 32

CLAMP

€ 5.50

33

1140038828
ref: 33

GASKET SET

€ 97.00
