FRONT WHEEL (GN250ET/EW/EX)
GN250E 1999 (X) GENERAL (E01)

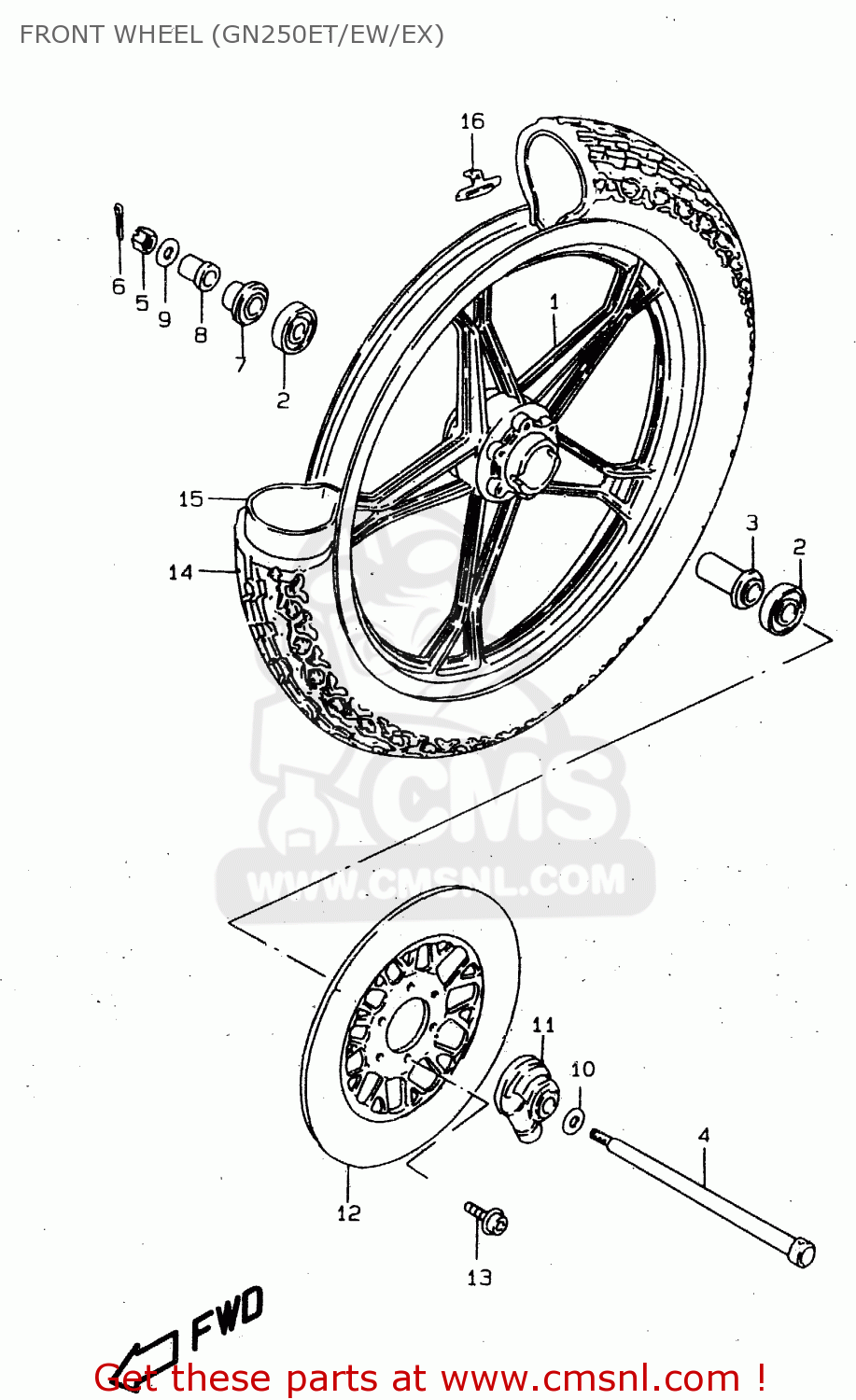

Front wheel (gn250et/ew/ex) diagram GN250E 1999 (X) GENERAL (E01)
FRONT WHEEL (GN250ET/EW/EX) GN250E 1999 (X) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5411111451291
ref: 1
WHEEL,FRONT (1.60X18)
€ 541.50
2
0812363027
ref: 2
BEARING
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
€ 13.00
4
5471149000
ref: 4
AXLE,FR
€ 79.50
5
0914112003
ref: 5
NUT
€ 4.50
6
0411130308
ref: 6
COTTER PIN
€ 1.50
7
5474018402
ref: 7
SPACER,FR AXLE,R
€ 18.50
8
5474149101
ref: 8
SPACER
€ 14.00
9
0832201127
ref: 9
WASHER
€ 2.00
10
0916015002
ref: 10
WASHER(15.5X26X2.3)
€ 2.00
11
5460037301
ref: 11
BOX ASSY,SPEEDOMETER GEAR
€ 90.00
12
5921145200
ref: 12
DISC,FR BRAKE
€ 144.00
13
0910608131
ref: 13
BOLT(8X30)
€ 3.50
14
5510044041
ref: 14
TIRE,FR(3.00-18 47S GS-11)
€ 0.00
15
5520011601
ref: 15
TUBE,INNER
€ 24.50
16
5541100A00
ref: 16
BALANCER,WHEEL (10G)
€ 6.50
16
5541200A01
ref: 16
BALANCER,WHEEL (20G)
€ 7.00
