GEAR SHIFTING
GN250E 1999 (X) GENERAL (E01)

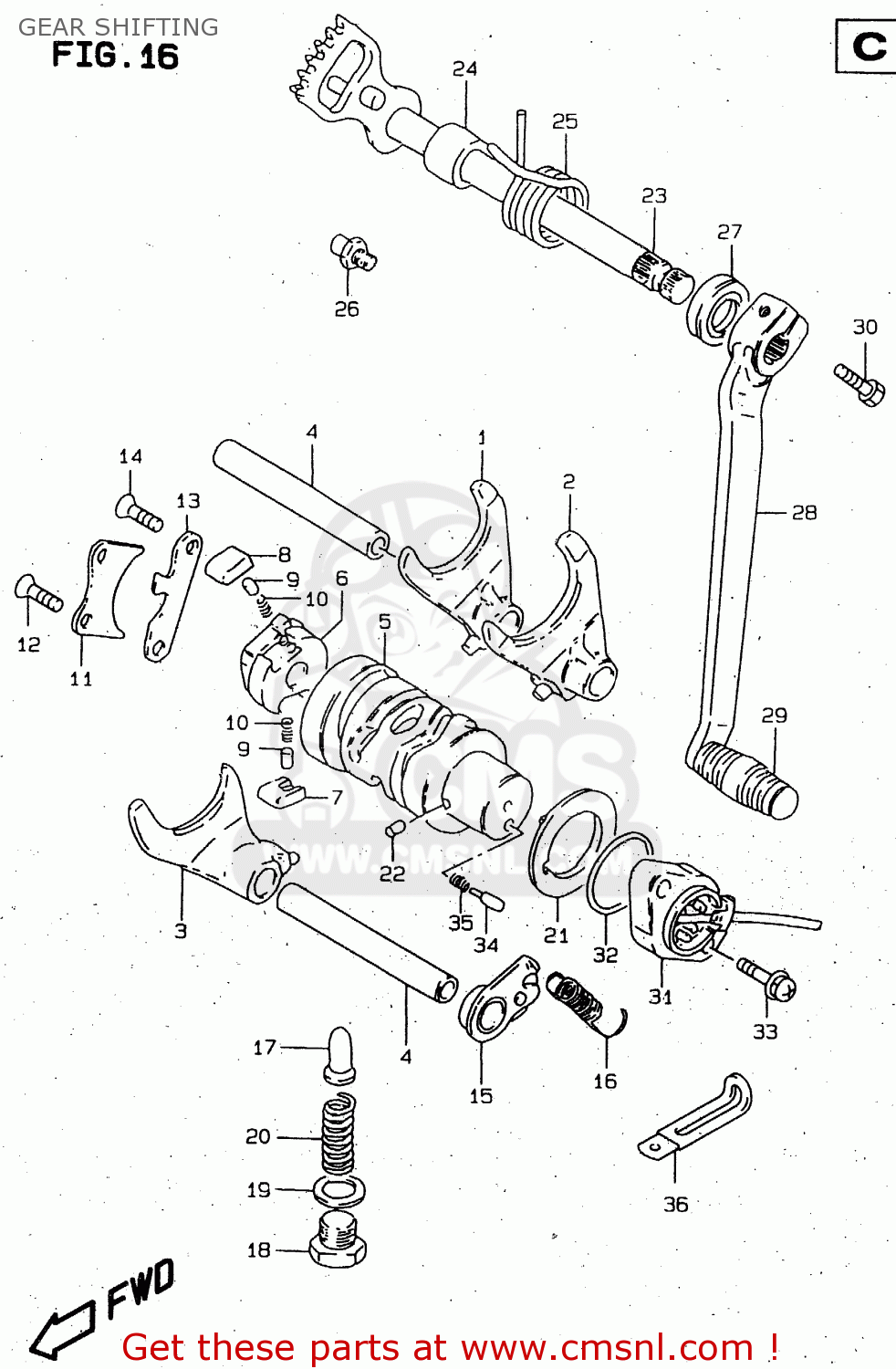

Gear shifting diagram GN250E 1999 (X) GENERAL (E01)
GEAR SHIFTING GN250E 1999 (X) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2521132401
ref: 1
MODEL T
FORK,GEAR SHIFT NO.1
€ 71.50
1
2521132402
ref: 1
MODEL W/X
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522132402
ref: 2
MODEL T
FORK,GEAR SHIFT NO.1
€ 71.50
2
2522132403
ref: 2
MODEL W/X
FORK,GEAR SHIFT NO.2
€ 71.50
3
2523132401
ref: 3
MODEL T
FORK,GEAR SHIFT NO.3
€ 71.50
3
2523132402
ref: 3
MODEL W/X
FORK,GEAR SHIFT NO.3
€ 71.50
4
2541114331
ref: 4
SHAFT,GEAR SHIFT FORK
€ 14.00
5
2531038200
ref: 5
CAM,GEAR SHIFT
€ 103.00
6
2532231310
ref: 6
<-25322-31302
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533138201
ref: 11
LIFTER,GEAR SHIFT POLE
€ 4.50
12
0212206123
ref: 12
SCREW
€ 3.00
13
2534138200
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14
0212206123
ref: 14
SCREW
€ 3.00
15
2535034000
ref: 15
STOPPER,GEAR SHIFT CAM
€ 10.50
16
0944308026
ref: 16
SPRING
€ 14.50
17
2535130010
ref: 17
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
18
0924714026
ref: 18
PLUG(14X12)
€ 3.50
19
0916814002
ref: 19
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
20
0944011026
ref: 20
SPRING
€ 7.50
21
2538145400
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
22
0422104069
ref: 22
PIN
€ 2.00
23
2551038200
ref: 23
SHAFT,GEAR SHIFT
€ 83.50
24
0918012068
ref: 24
SPACER(12X20X15.3)
€ 3.00
25
0944426004
ref: 25
SPRING
€ 4.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
€ 3.00
27
0928512002
ref: 27
OIL SEAL
€ 7.00
28
2560005330
ref: 28
LEVER ASSY,GEAR SHIFT
€ 33.50
29
2565216500
ref: 29
RUBBER,GEAR SHIFT PEDAL
€ 4.00
30
0150006203
ref: 30
BOLT
€ 2.00
31
3772044700
ref: 31
BASE ASSY,GEAR SHIFT TERMINAL
€ 83.50
32
0928026003
ref: 32
O-RING (D:2.4 ID:26.2)
€ 2.50
33
0211275203
ref: 33
SCREW
€ 3.00
34
0920905011
ref: 34
PIN(5X15.5)
€ 2.00
35
0944004010
ref: 35
SPRING
€ 1.50
36
0940406432
ref: 36
CLAMP(L:65)
€ 2.50
