TURN SIGNAL LAMP (E25,E39)
GN250E 1999 (X) GENERAL (E01)

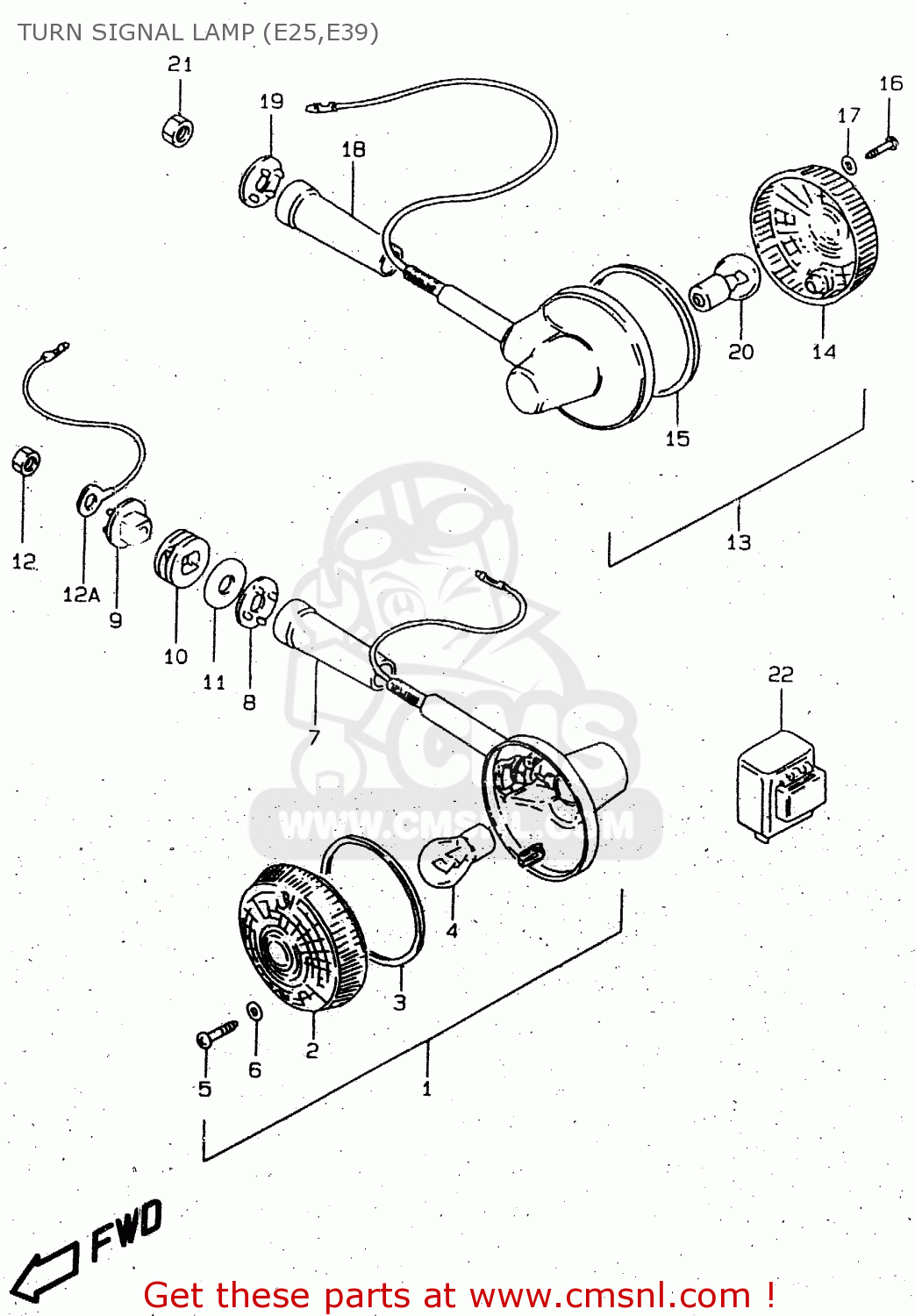

Turn signal lamp (e25,e39) diagram GN250E 1999 (X) GENERAL (E01)
TURN SIGNAL LAMP (E25,E39) GN250E 1999 (X) GENERAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3560347261
ref: 1
LAMP ASSY,TURNSIGNAL
€ 65.50
2
3565239280
ref: 2
LENS
€ 9.00
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0947112045
ref: 4
BULB(12V21W)
€ 5.00
5
0321104208
ref: 5
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3561747230
ref: 7
COVER,STAY
€ 10.00
8
3566847290
ref: 8
CUSHION
€ 3.00
9
3569532401
ref: 9
SPACER
€ 4.50
10
3569032200
ref: 10
CUSHION
€ 38.50
11
0916010006
ref: 11
MODEL T
WASHER (10.5X30X2.3)
€ 2.50
11
0916010501
ref: 11
MODEL W/X
WASHER(10.5X30X2.3)
€ 2.50
12
0831000107
ref: 12
NUT
€ 2.50
12A
3666033000
ref: 12A
LEAD WIRE,EARTH
€ 5.00
13
3560347281999
ref: 13
LAMP ASSY,RR TURNSIGNAL
€ 60.00
14
3565239280
ref: 14
LENS
€ 9.00
15
3561328620
ref: 15
GASKET (NAS)
€ 7.00
16
0321104208
ref: 16
SCREW
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
3561747230
ref: 18
COVER,STAY
€ 10.00
19
3566847290
ref: 19
CUSHION
€ 3.00
20
0947112045
ref: 20
BULB(12V21W)
€ 5.00
21
0831000107
ref: 21
NUT
€ 2.50
22
3861031X50
ref: 22
RELAY ASSY,TURNSIGNAL
€ 54.50
