AIR CLEANER (MODEL T)

GS1000 1981 (X) USA (E03)

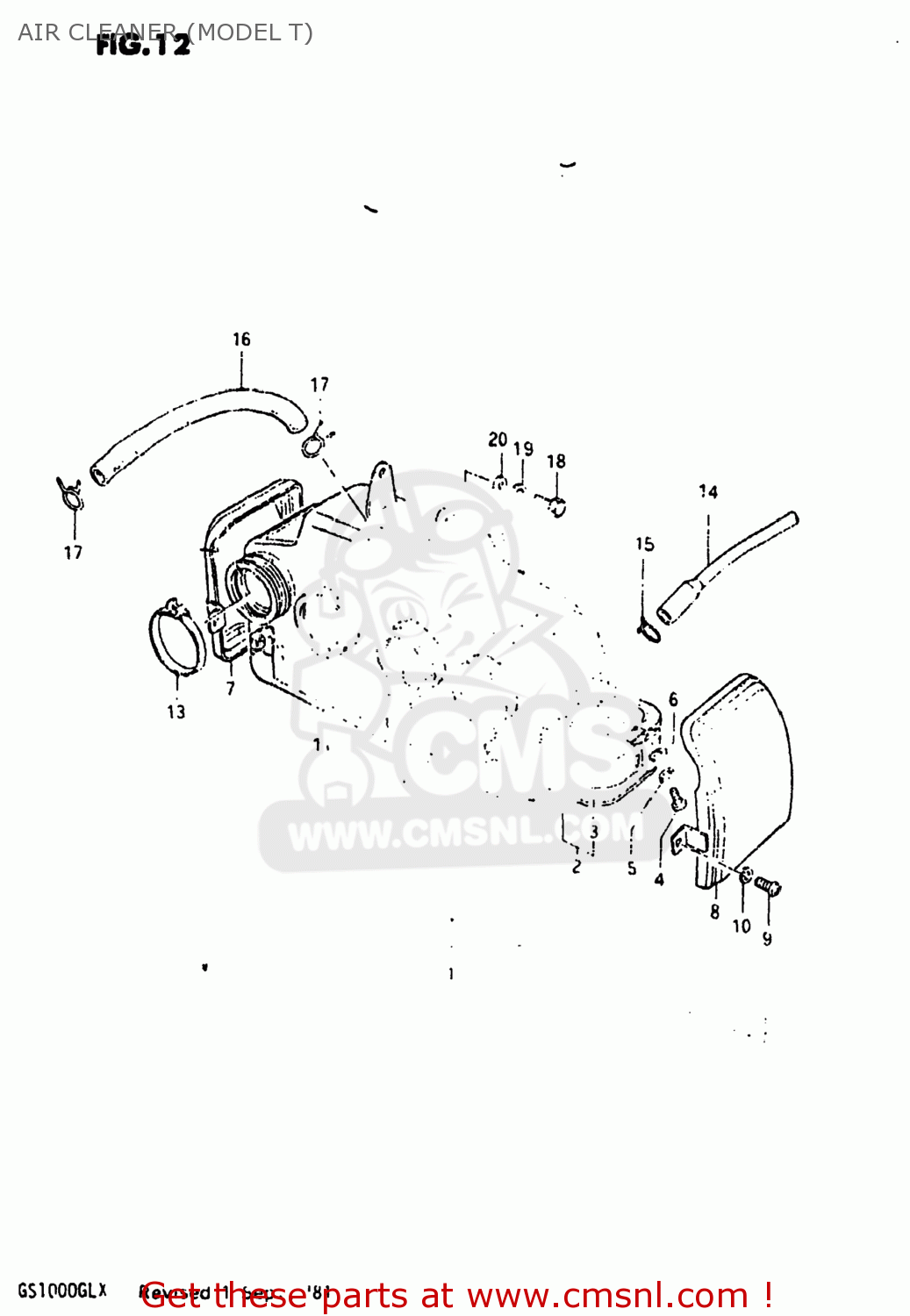

Air cleaner (model t) diagram GS1000 1981 (X) USA (E03)

AIR CLEANER (MODEL T) GS1000 1981 (X) USA (E03)
AIR CLEANER (MODEL T) GS1000 1981 (X) USA (E03)
AIR CLEANER (MODEL T) GS1000 1981 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1370045050
ref: 1
13700-45051
CLEANER ASSEMBLY,AIR
€ 0.00
2
1378045010
ref: 2
FILTER ASSY,AIR CLEANER
1378045010
€ 67.50
3
1378145010
ref: 3
FILTER
1378145010
€ 37.50
4
0211205108
ref: 4
02112-05107
SCREW
0211205108
€ 2.00
5
0832121058
ref: 5
08321-0105A
LOCK WASHER
0832121058
€ 2.00
6
0832221058
ref: 6
08322-01057
WASHER
€ 2.50
7
1374145050
ref: 7
CAP,AIR CLEANER,RIGHT
1374145050
€ 30.00
8
1374245050
ref: 8
COVER, LH
€ 28.00
9
0211205108
ref: 9
02112-05107
SCREW
0211205108
€ 2.00
10
0832121058
ref: 10
08321-0105A
LOCK WASHER
0832121058
€ 2.00
11
1388145050
ref: 11
HOSE,R
1388145050
€ 20.50
12
1388245050
ref: 12
HOSE,L
1388245050
€ 20.50
13
0940262206
ref: 13
09402-62208
CLAMP
€ 6.00
14
1372945010
ref: 14
13729-45011
1372945010
15
1372645010
ref: 15
13726-45011
1372645010
16
0934311001
ref: 16
09352-11153-00B
HOSE
€ 30.00
17
0940115301
ref: 17
CLIP
0940115301
€ 2.50
18
0110706128
ref: 18
01500-06127
BOLT
0110706128
€ 2.00
19
0832121068
ref: 19
08321-01067
LOCK WASHER
0832121068
€ 2.50
20
0832221068
ref: 20
08322-01067
WASHER
0832221068
€ 2.00
