FOOTREST (MODEL X)
GS1000 1981 (X) USA (E03)

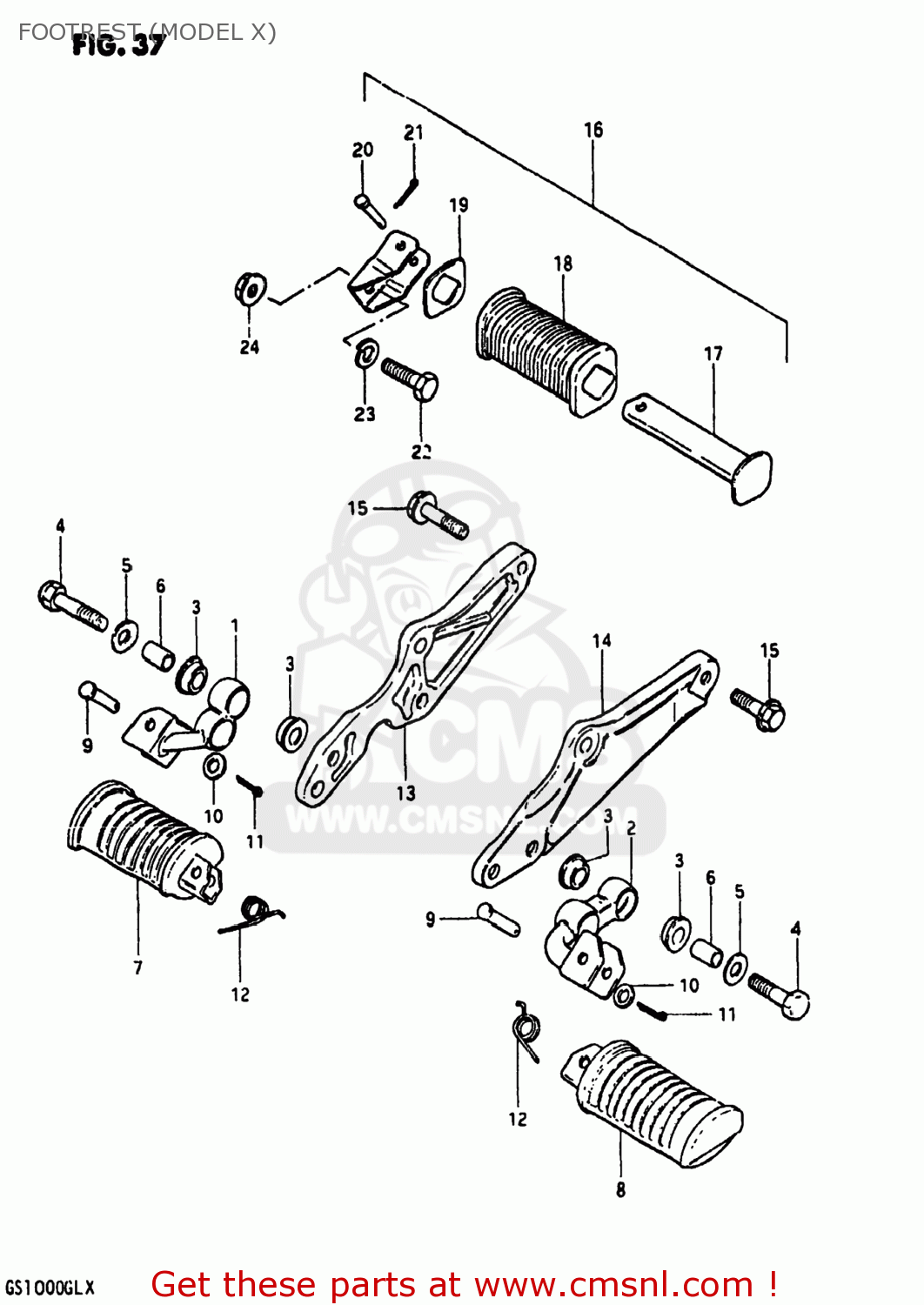

Footrest (model x) diagram GS1000 1981 (X) USA (E03)
FOOTREST (MODEL X) GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351045350
ref: 1
BAR,FRONT FOOTREST
€ 31.00
2
4352045350
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 36.50
3
0930514004
ref: 3
BUSH
€ 6.00
4
0910410009
ref: 4
BOLT(10X50)
€ 19.50
5
0916010035
ref: 5
WASHER(10.5X28X2.3)
€ 2.00
6
0918010066
ref: 6
SPACER (10.2X14X20)
€ 3.50
7
4355049002
ref: 7
43550-37301
RUBBER,FRONT FOOTREST
€ 22.50
8
4356049002
ref: 8
43560-37301
FOOTREST
€ 22.50
9
0920008002
ref: 9
PIN
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
0411120158
ref: 11
04111-2015A
PIN
€ 1.50
12
0944814012
ref: 12
SPRING
€ 3.00
13
4381145350
ref: 13
BRACKET
€ 60.50
14
4382145350
ref: 14
BRACKET
€ 57.50
15
0152710257
ref: 15
01550-1025A
BOLT
€ 3.00
16-1
4360045350
ref: 16-1
FOOTREST ASSEMBLY,REAR,RIGHT
€ 18.50
16-2
4370045350
ref: 16-2
FOOTREST ASSEMBLY,PILLION
€ 16.50
17-1
4361049201
ref: 17-1
BAR,REAR FOOTREST,RIGHT
€ 8.00
17-2
4362049201
ref: 17-2
BAR,REAR FOOTREST,LEFT
€ 23.00
18
4361249201
ref: 18
RUBBER,PILLION FOOTREST
€ 30.50
19
4363149201
ref: 19
43631-45001
WASHER,FOOTREST RUBBER
€ 16.00
20
0920006010
ref: 20
PIN
€ 2.50
21
0411120158
ref: 21
04111-2015A
PIN
€ 1.50
22
0110710358
ref: 22
01500-1035B
BOLT,M10X1.25X
€ 2.50
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
0831616108
ref: 24
08316-10107
NUT
€ 2.00
