CYLINDER
GS1000 1981 (X) USA (E03)

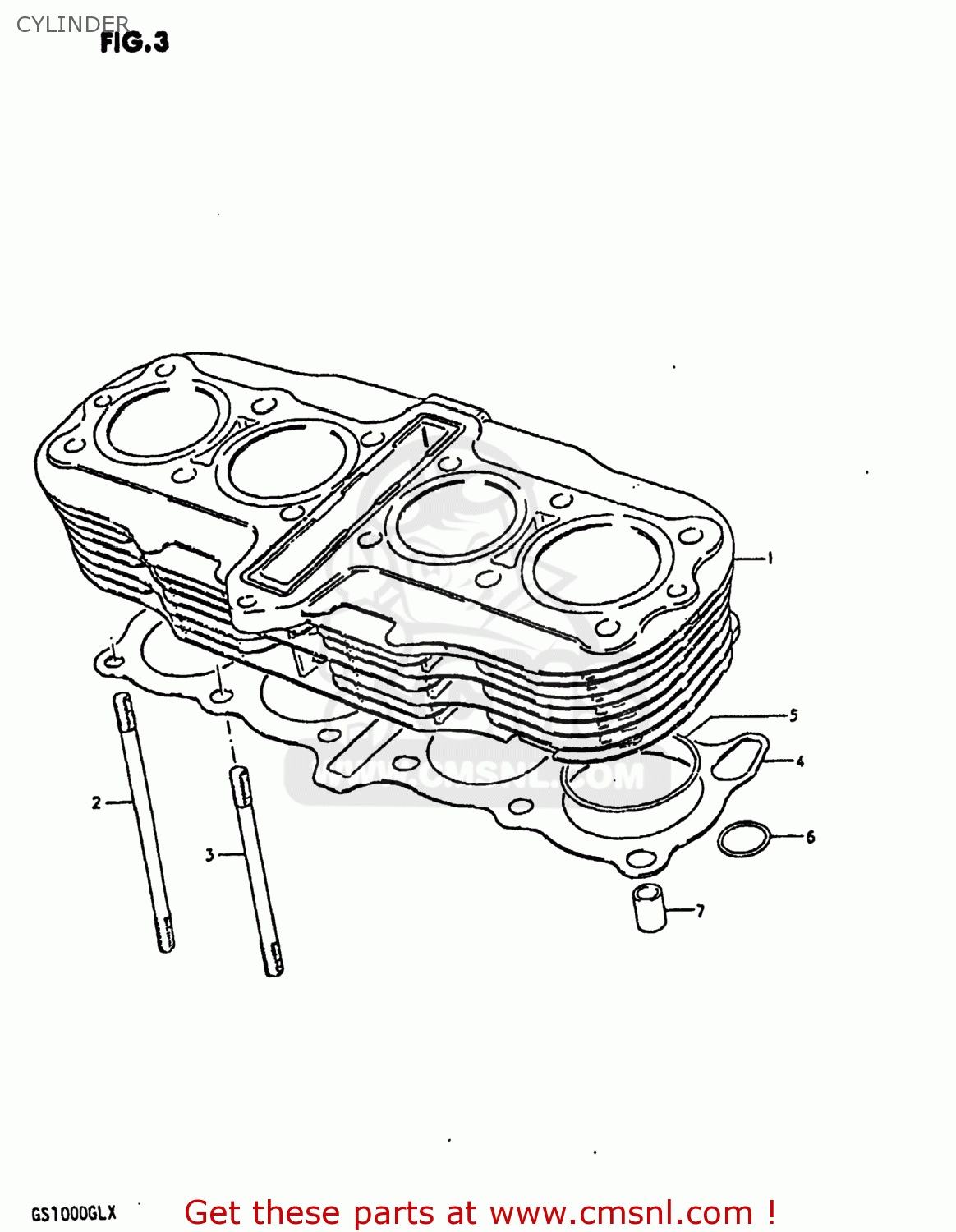

Cylinder diagram GS1000 1981 (X) USA (E03)
CYLINDER GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121049002
ref: 1-1
11210-49003
CYLINDER
€ 891.00
1-2
1121049003
ref: 1-2
CYLINDER
€ 891.00
2
0910810027
ref: 2
BOLT,STUD
€ 12.00
3
0910810028
ref: 3
09108-10112
STUD
€ 9.00
4
1124149010
ref: 4
11241-49401-H17
GASKET,CYLINDER (MCA)
€ 56.50
5
0928074002
ref: 5
O RING(D:2,ID:74)
€ 6.00
6
0928021004
ref: 6
O RING(D:3.05)
€ 4.00
7
0920613001
ref: 7
04211-13189
PIN
€ 2.50
