LEFT HANDLE SWITCH
GS1000 1981 (X) USA (E03)

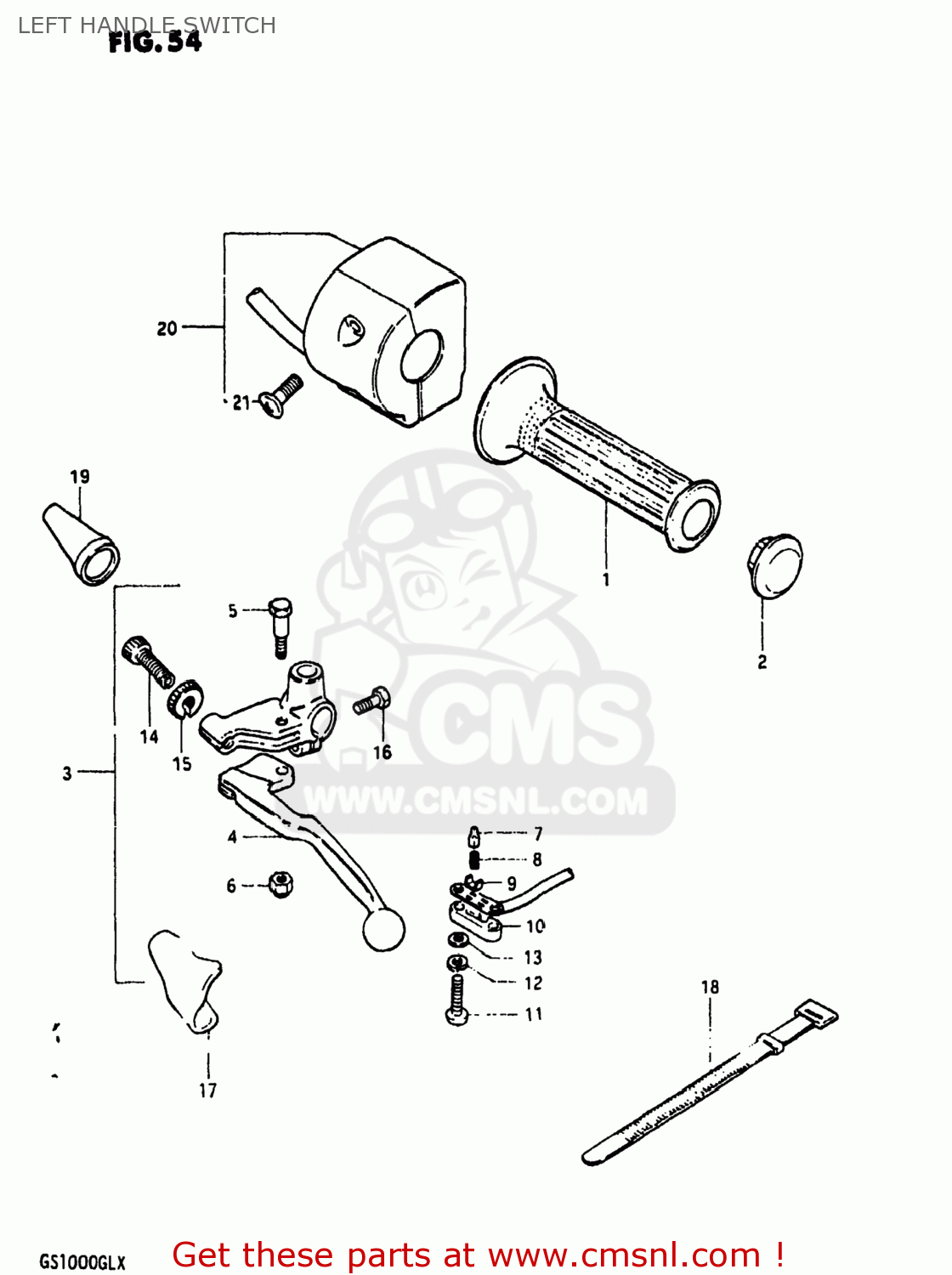

Left handle switch diagram GS1000 1981 (X) USA (E03)
LEFT HANDLE SWITCH GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721144100
ref: 1
57211-49500
GRIP,LEFT
€ 9.00
2
5721649100
ref: 2
CAP,GRIP END
€ 3.50
3
5750049111
ref: 3
57500-49301
LEVER ASSEMBLY
€ 53.50
4
5762049111
ref: 4
LEVER,CLUTCH
€ 34.00
5
5743111011
ref: 5
57431-11013
BOLT,LEVER
€ 6.00
6
0831921068
ref: 6
08319-2106A
NUT 6MM
€ 2.00
7
5746118600
ref: 7
57465-18601
HOLDER
€ 4.50
8
5746218600
ref: 8
57465-18601
SPRING
€ 4.50
9
5746318600
ref: 9
57465-18601
PLATE
€ 4.50
10
5748133010
ref: 10
COVER,FR BK TERMINAL BASE
€ 19.50
11
0912503105
ref: 11
09125-03105-XC0
SCREW
€ 2.50
12
0832121038
ref: 12
09162-03001
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
08322-01037
WASHER
€ 2.00
14
5744111010
ref: 14
ADJUSTER,CABLE
€ 8.00
15
5744211010
ref: 15
NUT,CABLE ADJUSTER
€ 4.00
16
5745149100
ref: 16
BOLT,CLUTCH LEVER HOLDER
€ 3.00
17
5766131000
ref: 17
COVER,CLUTCH LEVER
€ 5.50
18
0940712402
ref: 18
CLAMP(L:120)
€ 3.00
19
5827331000
ref: 19
BOOT,CLUTCH CABLE
€ 2.50
20
3740049230
ref: 20
37400-45373
SWITCH ASSEMBLY,HANDLE,LEFT
€ 154.00
21
0211205165
ref: 21
02112-05164
SCREW
€ 2.00
