STEERING STEM (MODEL X)
GS1000 1981 (X) USA (E03)

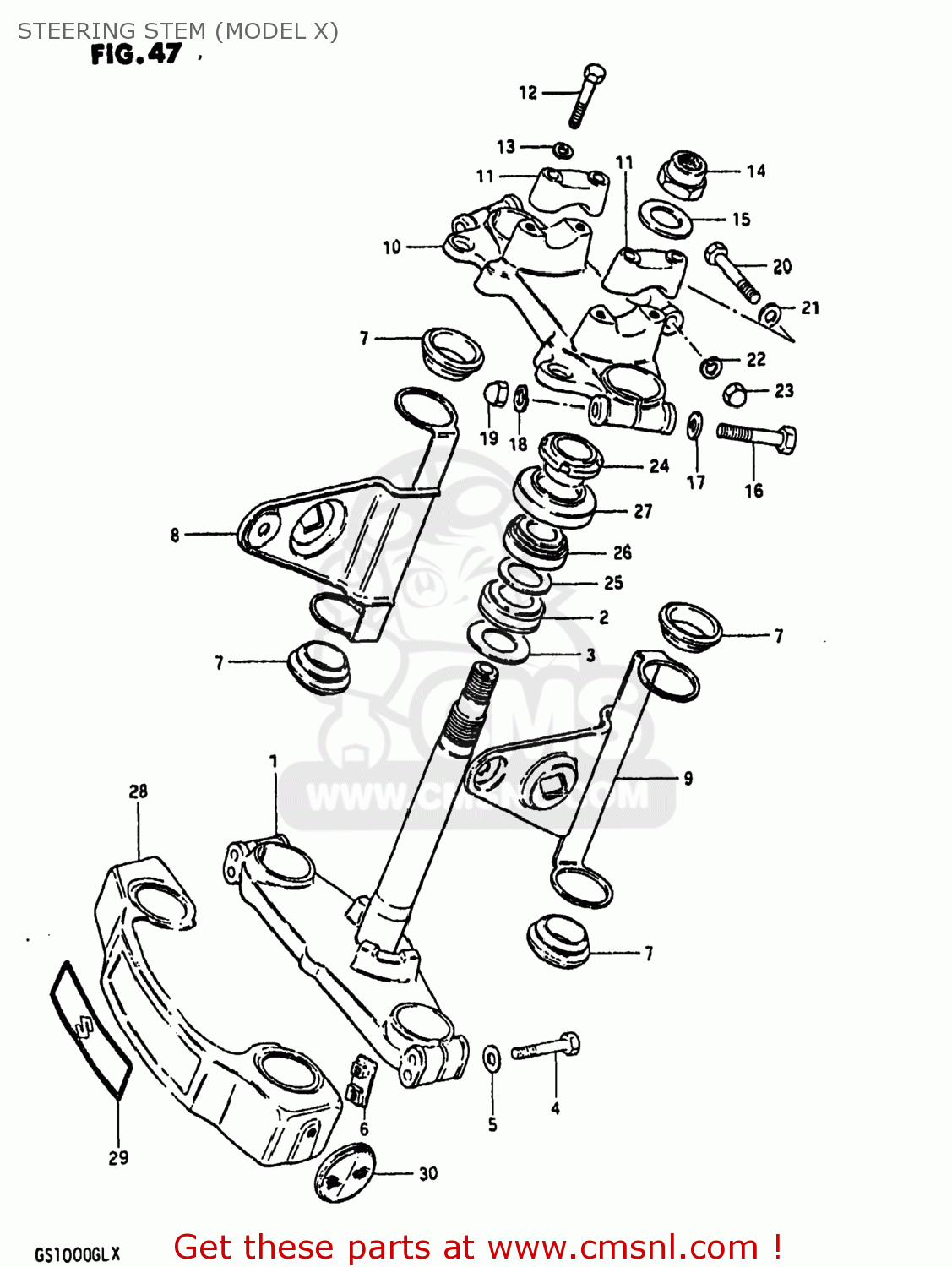

Steering stem (model x) diagram GS1000 1981 (X) USA (E03)
STEERING STEM (MODEL X) GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141049270291
ref: 1
51410-49280
STEM,STEERING
€ 136.50
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821130402
ref: 3
09181-30184
WASHER,THRUST
€ 4.00
4
0110708558
ref: 4
01500-08557
BOLT 8X55
€ 3.00
5
0832221088
ref: 5
08322-01087
WASHER
€ 2.00
6
5145849000
ref: 6
NUT,FR FORK INNER TUBE
€ 5.00
7
5155349000
ref: 7
51553-34300
CUSHION,HEADLAMP BRACKET
€ 4.50
8
5153049270
ref: 8
BRACKET,HEADLAMP,RIGHT
€ 29.50
9
5154049270
ref: 9
BRACKET,HEADLAMP,LEFT
€ 29.50
10
5131149270291
ref: 10
HEAD,STEERING STEM
€ 108.50
11
5621129320291
ref: 11
HOLDER,HANDLE(BLACK)
€ 12.00
12
0120408357
ref: 12
BOLT
€ 3.50
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
5135345000
ref: 14
NUT,FR FORK UPR BRACKET
€ 10.50
15
5135631700
ref: 15
WASHER
€ 9.50
16
0110710558
ref: 16
01500-1055A
BOLT 10X55
€ 3.50
17
0832221108
ref: 17
08322-01107
WASHER
€ 2.50
18
0832131108
ref: 18
08321-01107
LOCK WASHER
€ 2.00
19
0831311108
ref: 19
08313-10107
NUT, LOWER LH
€ 2.50
20
0110708508
ref: 20
01500-08507
BOLT 8X50
€ 3.00
21
0832221088
ref: 21
08322-01087
WASHER
€ 2.00
22
0832131088
ref: 22
08321-01087
WASHER,LOCK,8.
€ 2.00
23
0831311088
ref: 23
08313-10087
NUT
€ 2.50
24
5163134200
ref: 24
NUT,STEERING STEM
€ 23.00
25
0916018002
ref: 25
WASHER(18.5X24X1)
€ 2.00
26
0926525008
ref: 26
09265-25019
TAPER,ROLLER BEARING
€ 48.50
27
5164340500
ref: 27
51643-40502
DUST SEAL,STEERING,UPPER
€ 8.00
28
5187145300
ref: 28
51871-45301
COVER,FRONT FORK
€ 37.50
29
6821145300
ref: 29
EMBLEM,FR FORK COVER
€ 16.50
30
3595049080
ref: 30
REFLEX REFLECTOR,RR
€ 17.50
