STEERING STEM (MODEL T)
GS1000 1981 (X) USA (E03)

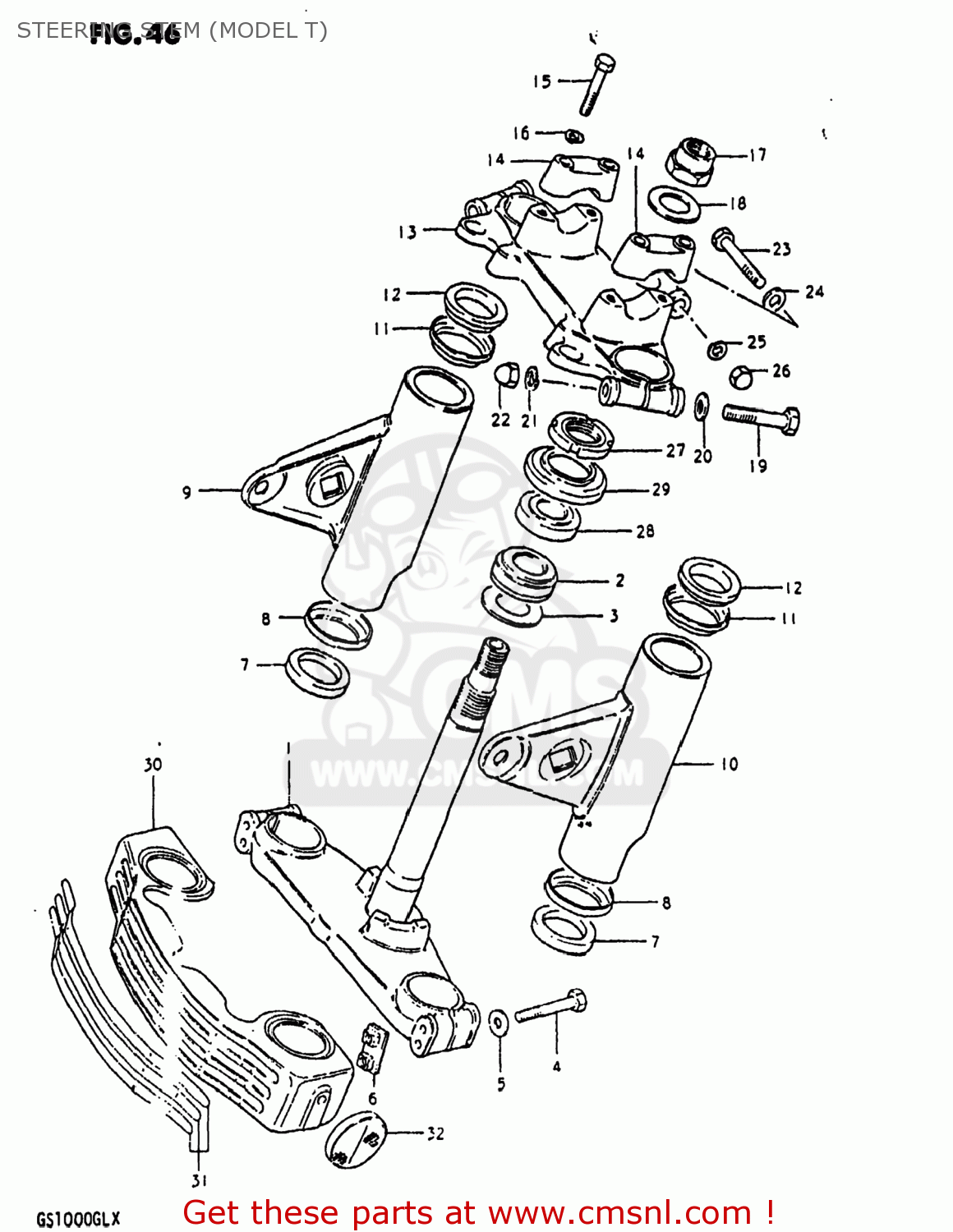

Steering stem (model t) diagram GS1000 1981 (X) USA (E03)
STEERING STEM (MODEL T) GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5141049130291
ref: 1
STEM,STEERING
€ 161.00
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821130402
ref: 3
09181-30184
WASHER,THRUST
€ 4.00
4
0110708558
ref: 4
01500-08557
BOLT 8X55
€ 3.00
5
0832221088
ref: 5
08322-01087
WASHER
€ 2.00
6
5145849000
ref: 6
NUT,FR FORK INNER TUBE
€ 5.00
7
5155349101
ref: 7
CUSHION,HEADLAMP BRACKET
€ 3.00
8
5155149101
ref: 8
SEAT,HEAD LAMP BRACKET
€ 6.00
9
5153049101
ref: 9
BRACKET,HEADLAMP,RIGHT
€ 83.50
10
5154049101
ref: 10
51540-49120
BRACKET,HEADLAMP,LEFT
€ 38.50
11
5155549100
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 5.50
12
5155649100
ref: 12
CUSHION,HEADLAMP BRACKET
€ 3.00
13
5131149100291
ref: 13
HEAD,STEERING STEM
€ 141.50
14
5621129320291
ref: 14
HOLDER,HANDLE(BLACK)
€ 12.00
15
0120408357
ref: 15
BOLT
€ 3.50
16
0832121088
ref: 16
08321-01087
LOCK WASHER
€ 2.00
17
5135345000
ref: 17
NUT,FR FORK UPR BRACKET
€ 10.50
18
5135631700
ref: 18
WASHER
€ 9.50
19
0110710558
ref: 19
01500-1055A
BOLT 10X55
€ 3.50
20
0832221108
ref: 20
08322-01107
WASHER
€ 2.50
21
0832131108
ref: 21
08321-01107
LOCK WASHER
€ 2.00
22
0831311105
ref: 22
08313-1010A
NUT 10MM
€ 2.00
23
0110708508
ref: 23
01500-08507
BOLT 8X50
€ 3.00
24
0832221088
ref: 24
08322-01087
WASHER
€ 2.00
25
0832131088
ref: 25
08321-01087
WASHER,LOCK,8.
€ 2.00
26
0831311085
ref: 26
08313-10083
NUT,M8X1.25X12
€ 2.00
27
5163128000
ref: 27
NUT,STEERING STEM(25X44X10)
€ 12.50
28
0926525008
ref: 28
09265-25019
TAPER,ROLLER BEARING
€ 48.50
29
5164349001
ref: 29
51643-49002
DUST SEAL,STEERING,UPPER
€ 7.50
30
5187149101
ref: 30
51871-49102
COVER,FRONT FORK
€ 23.00
31
6820049810
ref: 31
TAPE SET,FRONT FORK COVER
€ 7.00
32
3595049080
ref: 32
REFLEX REFLECTOR,RR
€ 17.50
