FRONT CARIPERS
GS1000 1981 (X) USA (E03)

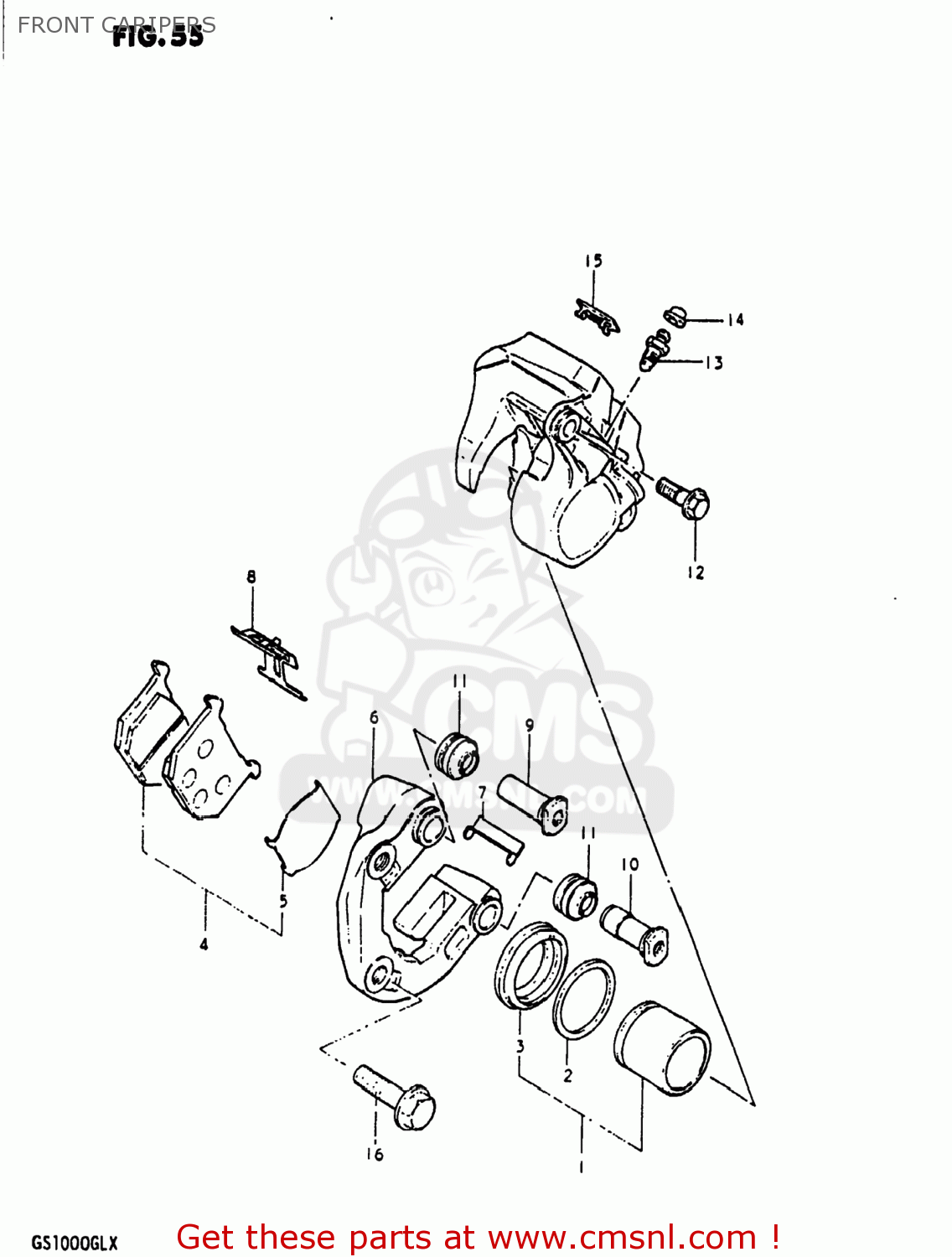

Front caripers diagram GS1000 1981 (X) USA (E03)
FRONT CARIPERS GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0-1
5910044100
ref: 0-1
59100-44104
CARIPER ASSEMBLY,RIGHT
€ 149.50
0-2
5930044100
ref: 0-2
59300-441V0
CALIPER ASSEMBLY,FRONT,LEFT
€ 162.50
1
5930145820
ref: 1
59301-45822
PISTON SET
€ 117.00
2
5910718410
ref: 2
69107-05CF0
SEAL,PISTON
€ 17.00
3
5930845200
ref: 3
BOOT,PISTON
€ 13.00
4
5930145810
ref: 4
59302-45850-XNA
PAD SET (MCA)
€ 72.50
5
5937145200
ref: 5
SHIM,PAD
€ 12.50
6-1
5910044840
ref: 6-1
59100-44841
HOLDER SET, CALIPERS RH
€ 95.50
6-2
5930044830
ref: 6-2
59300-44831
CARRIER,CALIPER,LEFT
€ 49.00
7
5931645200
ref: 7
59316-45201
GUIDE,PAD
€ 19.00
8
5931545200
ref: 8
SPRING,PAD
€ 29.00
9
5930545200
ref: 9
AXLE NO.1
€ 15.00
10
5930645200
ref: 10
AXLE NO.2
€ 13.50
11
5931245200
ref: 11
BOOT,AXLE
€ 10.50
12
5931445200
ref: 12
59314-45201
BOLT,CALIPER HOUSING
€ 12.00
13
5912118410
ref: 13
BLEEDER
€ 8.00
14
5912218410
ref: 14
55156-66310
CAP,BREATHER
€ 6.00
15
5932445200
ref: 15
59324-45201
COVER,INDICATOR
€ 5.00
16
0151710408
ref: 16
01550-10407
BOLT
€ 3.50
