CRANKCASE COVER
GS1000 1981 (X) USA (E03)

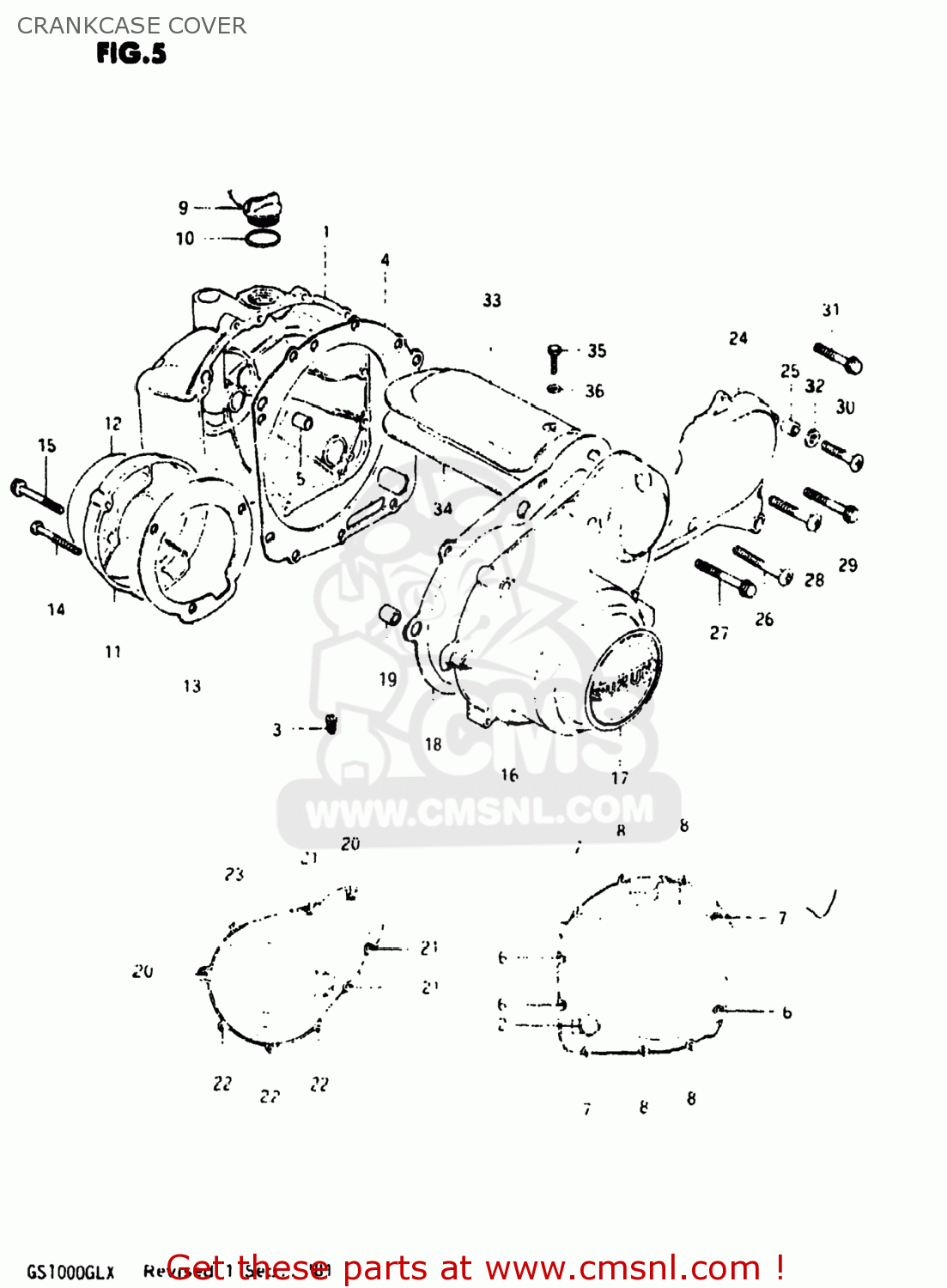

Crankcase cover diagram GS1000 1981 (X) USA (E03)
CRANKCASE COVER GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1134049100
ref: 1-1
11340-49101
COVER,CLUTCH
€ 179.50
1-2
1134049101
ref: 1-2
COVER,CLUTCH
€ 179.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
0949322009
ref: 3
JET
€ 0.00
4
1148249100
ref: 4
11482-49100-H17
GASKET,MAGNETO COVER (N (MCA)
€ 20.50
5
0920209004
ref: 5
PIN
€ 2.50
6-1
0211206358
ref: 6-1
02112-06357
SCREW (6X35)
€ 2.50
6-2
0154706358
ref: 6-2
01547-06357
BOLT (6X35)
€ 2.50
7-1
0211206308
ref: 7-1
02112-06307
SCREW 6X30
€ 2.50
7-2
0154706308
ref: 7-2
01547-06307
BOLT (6X30)
€ 2.50
8-1
0211206258
ref: 8-1
02112-06257
SCREW
€ 2.00
8-2
0154706258
ref: 8-2
01547-06257
BOLT
€ 2.50
9
0925930001
ref: 9
09200-30810
CAP
€ 8.50
10
0928032005
ref: 10
O RING(D:2.2,ID:32)
€ 2.00
11-1
1138149001
ref: 11-1
11381-49002
COVER,CONTACT BREAKER
€ 57.00
11-2
1138149002
ref: 11-2
COVER,CONTACT BREAKER
€ 57.00
12
6823545200
ref: 12
EMBLEM,CONTACT BREAKER COVER
€ 24.00
13
1149145000
ref: 13
GASKET,CONTACT BREAKER COVER (NAS)
€ 5.50
14
0211205308
ref: 14
02112-0530A
SCREW
€ 1.50
15
0154405308
ref: 15
01547-05307
BOLT (5*30)
€ 2.00
16-1
1135149001
ref: 16-1
11351-49002
COVER
€ 202.50
16-2
1135149002
ref: 16-2
COVER,MAGNETO
€ 202.50
17
6823345200
ref: 17
EMBLEM,MAGNETO COVER
€ 20.50
18
1148345000
ref: 18
11483-45000-H17
GASKET,MAGNETO COVER (MCA)
€ 12.50
19
0920613001
ref: 19
04211-13189
PIN
€ 2.50
20-1
0211206458
ref: 20-1
02112-06457
SCREW (6X45)
€ 2.00
20-2
0154706458
ref: 20-2
01547-06457
BOLT
€ 2.50
21-1
0211206408
ref: 21-1
02112-06407
SCREW
€ 2.00
21-2
0154706408
ref: 21-2
01547-06407
BOLT (6X40)
€ 2.50
22-1
0211206358
ref: 22-1
02112-06357
SCREW (6X35)
€ 2.50
22-2
0154706358
ref: 22-2
01547-06357
BOLT (6X35)
€ 2.50
23-1
0211206308
ref: 23-1
02112-06307
SCREW 6X30
€ 2.50
23-2
0154706308
ref: 23-2
01547-06307
BOLT (6X30)
€ 2.50
24-1
1136049100
ref: 24-1
11360-49101
COVER,SPROCKET
€ 99.00
24-2
1136049101
ref: 24-2
COVER,SECONDARY DRIVE
€ 99.00
25
0421109129
ref: 25
PIN
€ 2.00
26
0211206308
ref: 26
02112-06307
SCREW 6X30
€ 2.50
27
0154706308
ref: 27
01547-06307
BOLT (6X30)
€ 2.50
28
0211206258
ref: 28
02112-06257
SCREW
€ 2.00
29
0154706258
ref: 29
01547-06257
BOLT
€ 2.50
30
0211206208
ref: 30
02112-06207
SCREW
€ 2.00
31
0154706208
ref: 31
01547-06207
BOLT (6X20)
€ 2.50
32
0832221068
ref: 32
08322-01067
WASHER
€ 2.00
33
1138249002
ref: 33
COVER,STARTER MOTOR
€ 43.00
34
1149345001
ref: 34
11493-45002
GASKET,STARTER MOTOR COVER (MCA)
€ 10.50
35
0110405108
ref: 35
01500-0510B
BOLT
€ 1.50
36
0832221058
ref: 36
08322-01057
WASHER
€ 2.50
