FOOTREST (MODEL T)
GS1000 1981 (X) USA (E03)

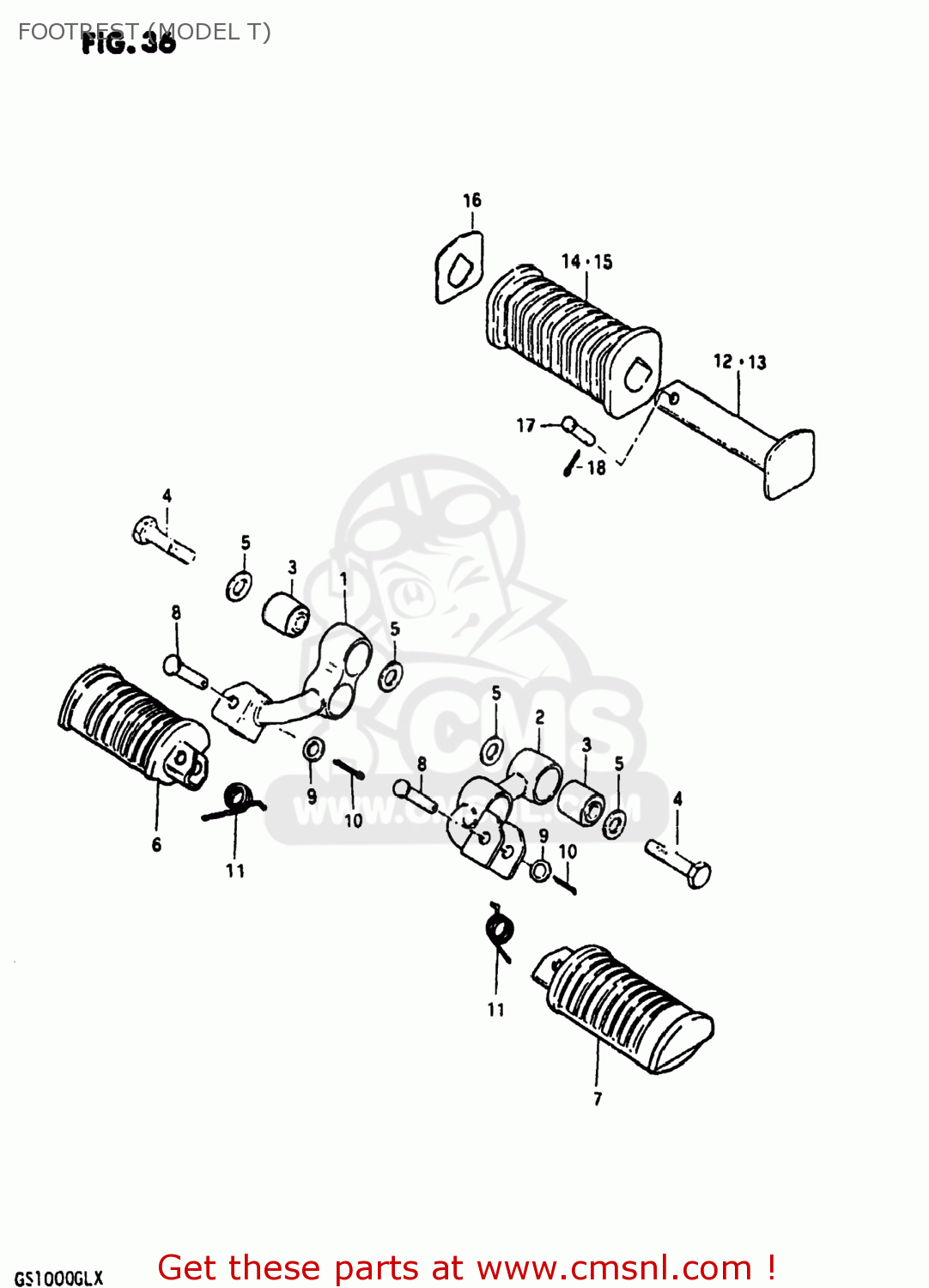

Footrest (model t) diagram GS1000 1981 (X) USA (E03)
FOOTREST (MODEL T) GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351045110019
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 28.00
2
4352045110019
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 26.50
3
0931910008
ref: 3
BUSH
€ 8.00
4
0910410007
ref: 4
09104-10029
BOLT
€ 3.50
5
0916010013
ref: 5
09160-10123
WASHER (10.1X21X2.3)
€ 2.00
6
4355049002
ref: 6
43550-37301
RUBBER,FRONT FOOTREST
€ 22.50
7
4356049002
ref: 7
43560-37301
FOOTREST
€ 22.50
8
0920008002
ref: 8
PIN
€ 2.00
9
0832211088
ref: 9
08322-01087
WASHER
€ 2.00
10
0411120158
ref: 10
04111-2015A
PIN
€ 1.50
11
0944814013
ref: 11
09448-14012
SPRING
€ 3.00
12
4361045000
ref: 12
43610-45001
BAR,REAR FOOTREST
€ 21.50
13
4362045000
ref: 13
43620-45001
BAR,REAR FOOTREST
€ 13.50
14
4361245000
ref: 14
43612-45001
RUBBER,PILLION FOOTREST
€ 15.00
15
4362245000
ref: 15
43612-45001
RUBBER, LH
€ 15.00
16
4363145000
ref: 16
43631-45001
WASHER,REAR FOOTREST RUBBER
€ 16.00
17
0920006010
ref: 17
PIN
€ 2.50
18
0411120158
ref: 18
04111-2015A
PIN
€ 1.50
