CRANKSHAFT
GS1000 1981 (X) USA (E03)

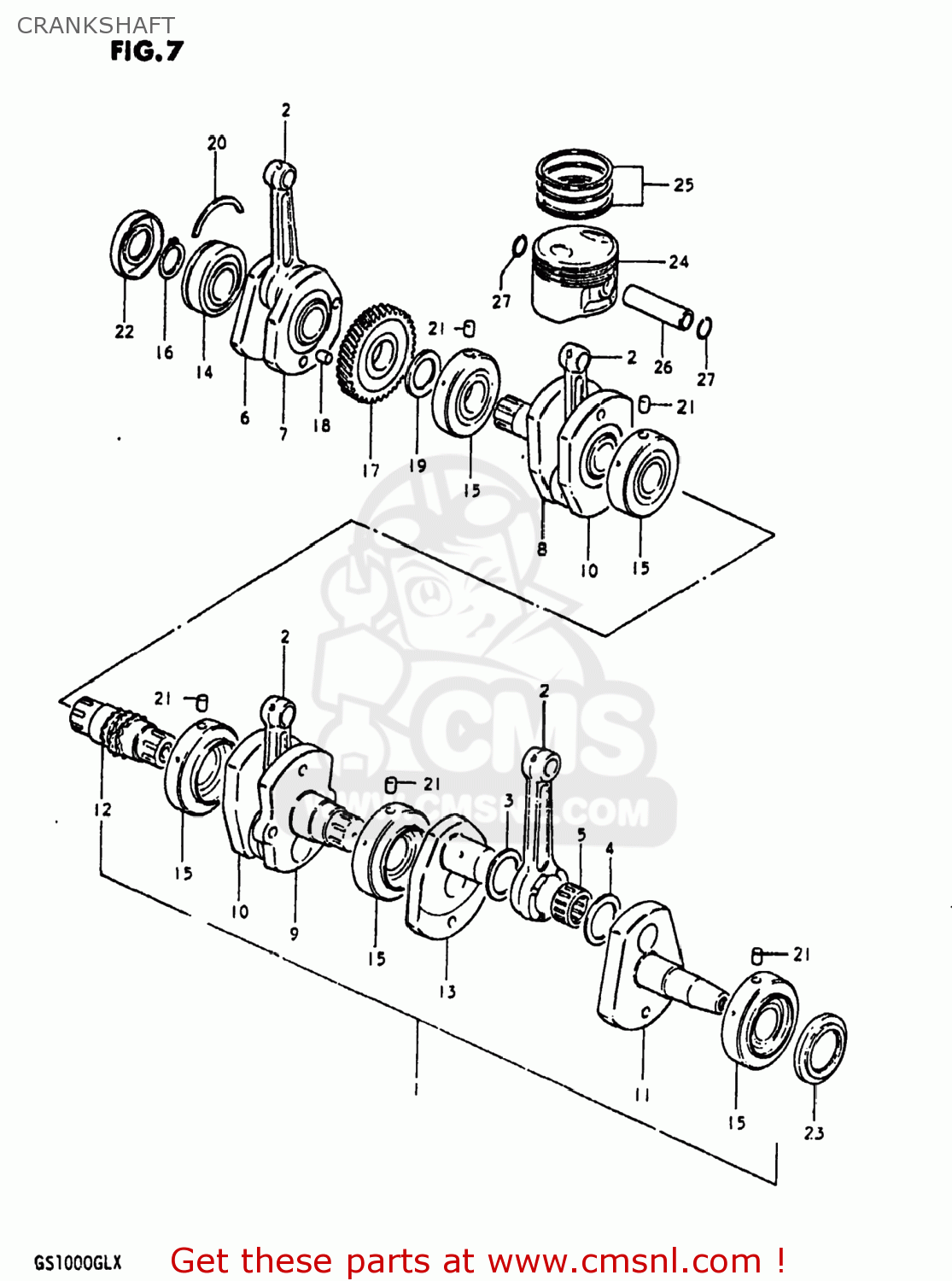

Crankshaft diagram GS1000 1981 (X) USA (E03)
CRANKSHAFT GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1220049010
ref: 1
12200-49011
CRANKSHAFT ASSEMBLY
€ 469.00
2
1216149000
ref: 2
ROD,CONNECTING
€ 125.50
3
0916029008
ref: 3
WASHER (29X48X2)
€ 6.00
4
0916029009
ref: 4
WASHER (29X48X1)
€ 5.50
5
0926329002
ref: 5
BEARING(29X39X20)
€ 28.50
6
1222049000
ref: 6
CRANKSHAFT
€ 0.00
7
1223149010
ref: 7
CRANKSHAFT
€ 0.00
8
1224149010
ref: 8
CRANKSHAFT
€ 0.00
9
1227149010
ref: 9
12241-49002
CRANKSHAFT
€ 0.00
10
1225049000
ref: 10
WEB,CRANK,MIDDLE
€ 127.50
11
1226149001
ref: 11
CRANKSHAFT,LEFT
€ 135.00
12
1228149002
ref: 12
SHAFT,TIMING CHAIN DRIVE
€ 92.50
13
1223049000
ref: 13
WEB,CRANK
€ 153.00
14
0926230033
ref: 14
BEARING(30X72X19)
€ 47.00
15
0926432005
ref: 15
09264-32009
BEARING
€ 138.00
16
0833111308
ref: 16
08331-3130A
CIRCLIP,30MM
€ 3.00
17
2111049010
ref: 17
GEAR,PRIMARY DRIVE
€ 0.00
18
0422108129
ref: 18
PIN
€ 2.00
19
0916032008
ref: 19
WASHER
€ 0.00
20
0939072004
ref: 20
C RING
€ 3.00
21
0422107129
ref: 21
PIN
€ 1.50
22
0928330021
ref: 22
SEAL,OIL(30X72X11)
€ 22.00
23
0928948002
ref: 23
SEAL,OIL(47.3X60X6.5)
€ 12.00
24-1
1211149001
ref: 24-1
PISTON
€ 103.00
24-2
1211149001050
ref: 24-2
12103-49810-050
PISTON 0.50
€ 136.50
24-3
1211149001100
ref: 24-3
PISTON(OS:1.0)
€ 142.50
25-1
1214049001
ref: 25-1
RING SET,PISTON
€ 73.50
25-2
1214049001050
ref: 25-2
RING SET,PISTON (OS:0.5)
€ 53.50
25-3
1214049001100
ref: 25-3
12140-44110
RING SET,PISTON (OS:1.0)
€ 61.50
26
1215115002
ref: 26
12151-13A00-0A0
PIN,PISTON (18MM)
€ 14.50
27
0938118002
ref: 27
CIRCLIP
€ 1.50
