HEADLAMP

GS1000 1981 (X) USA (E03)

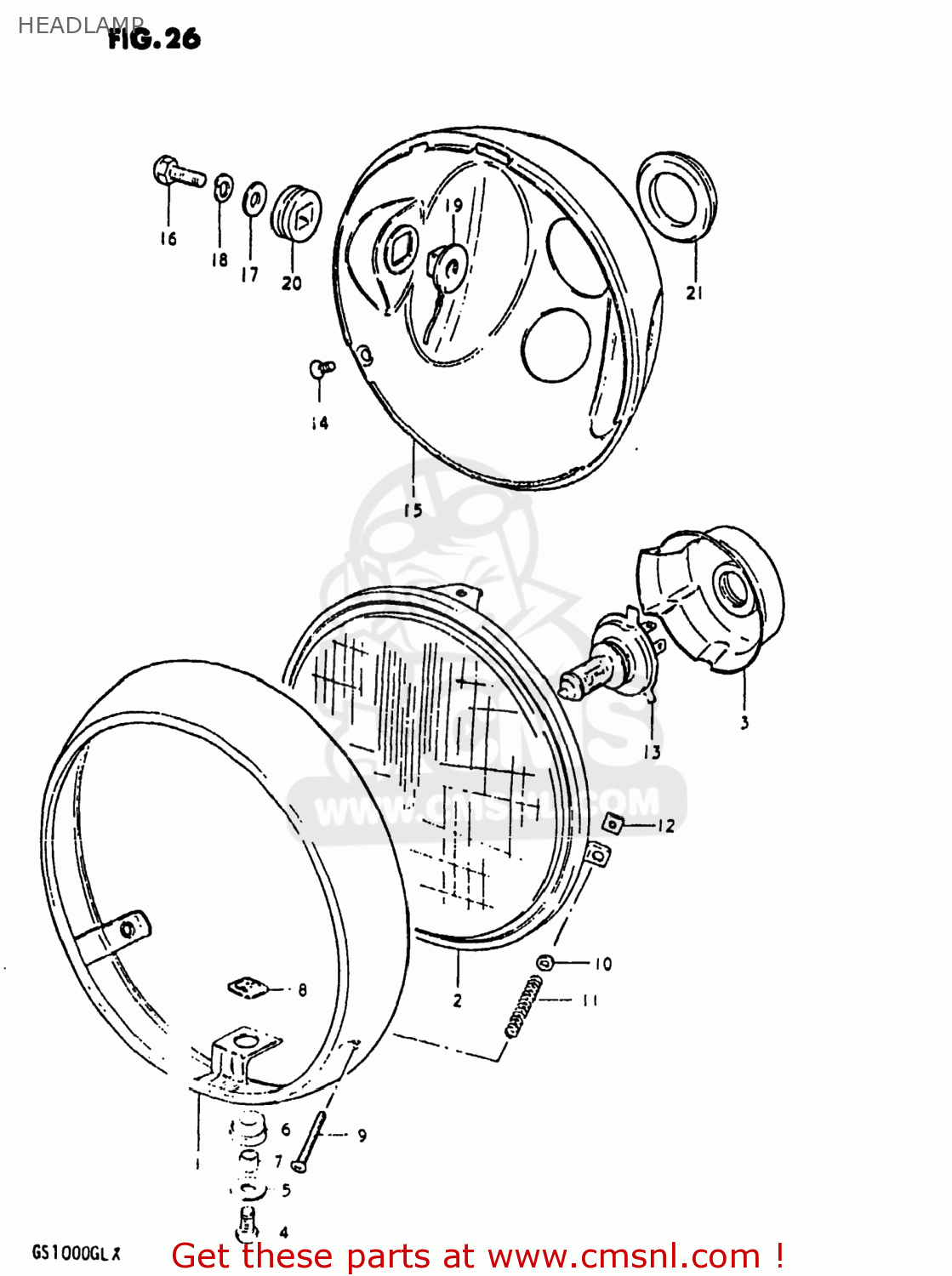

Headlamp diagram GS1000 1981 (X) USA (E03)

HEADLAMP GS1000 1981 (X) USA (E03)

HEADLAMP GS1000 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

0

3510045231999
ref: 0

HEADLAMP ASSEMBLY

€ 249.00

1

3511145231
ref: 1

RIM

€ 50.00

2

3512145230
ref: 2

LAMP UNIT

€ 119.50

3

3517345200
ref: 3

COVER,SOCKET

€ 14.00

4

0211205168
ref: 4
02112-05167

SCREW

€ 2.50

5

3513845230
ref: 5
09160-05045

WASHER

€ 2.00

6

3513945230
ref: 6

CUSHION

€ 1.50

7

3513345230
ref: 7

SPACER

€ 2.00

8

3515548510
ref: 8

NUT

€ 2.00

9

3515145230
ref: 9

SCREW

€ 3.50

10

3515748510
ref: 10
35157-27630

WASHER

€ 2.50

11

3515445230
ref: 11
35154-48510

SPRING,HEADLAMP ADJUST

€ 3.00

12

3515248510
ref: 12
35135-45600

NUT,HEADLAMP ADJUSTER

€ 3.00

13

0947112060
ref: 13

BULB(12V60/55W,H4)

€ 8.00

14

0213205108
ref: 14
02122-05107

SCREW

€ 1.00
