FRAME (MODEL T)
GS1000 1981 (X) USA (E03)

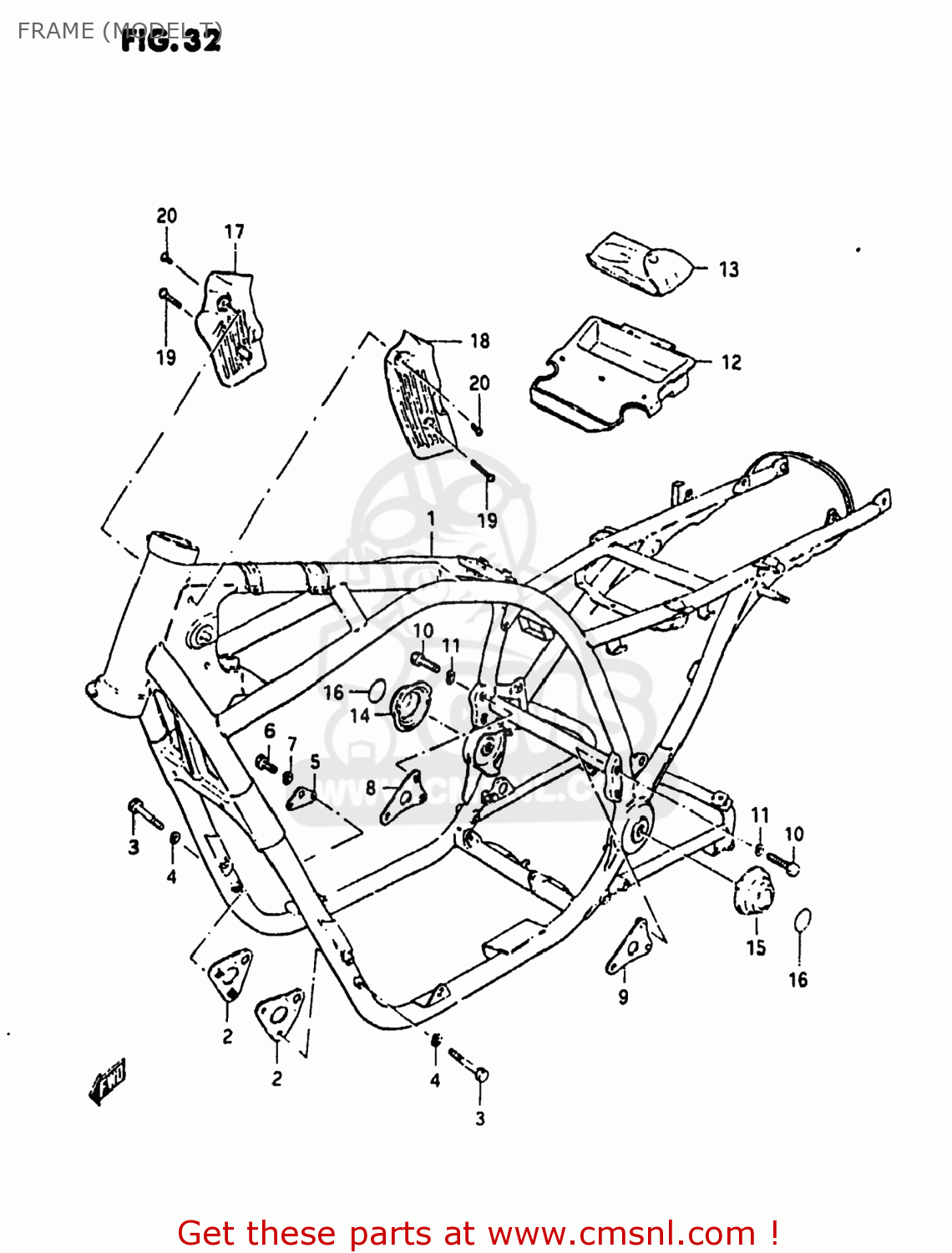

Frame (model t) diagram GS1000 1981 (X) USA (E03)
FRAME (MODEL T) GS1000 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110045300019
ref: 1
FRAME
€ 670.50
2
4191045100019
ref: 2
41910-45101-019
PLATE,ENGINE MOUNTING
€ 8.50
3
0110708658
ref: 3
01500-0865B
BOLT
€ 3.00
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
4199345000019
ref: 5
PLATE,ENGINE MOUNTING
€ 5.50
6
0110708168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8
4197045100019
ref: 8
PLATE,ENGINE MOUNTING
€ 0.00
9
4198045100019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708408
ref: 10
01500-0840A
BOLT 8X40
€ 3.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
4155145102
ref: 12
HOLDER,TOOL
€ 25.00
13
0980000199
ref: 13
09800-21025
TOOL SET
€ 43.00
14
4719145100
ref: 14
COVER,REAR SWING ARM PIVOT
€ 11.50
15
4729145100
ref: 15
47291-45101
COVER,REAR SWING ARM PIVOT
€ 13.50
16
6814345101
ref: 16
TAPE,REAR SWING ARM PIVOT
€ 3.50
17
5187645200
ref: 17
COVER,FRAME HEAD,RIGHT
€ 5.50
18
5188645200
ref: 18
COVER,FRAME HEAD,LEFT
€ 6.50
19
0214205505
ref: 19
02142-05503
SCREW, LOWER
€ 2.00
20
0214205105
ref: 20
02142-0510B
SCREW
€ 2.50
