CAM SHAFT - VALVE

GS1000G 1981 (X) GENERAL EXPORT (E01)

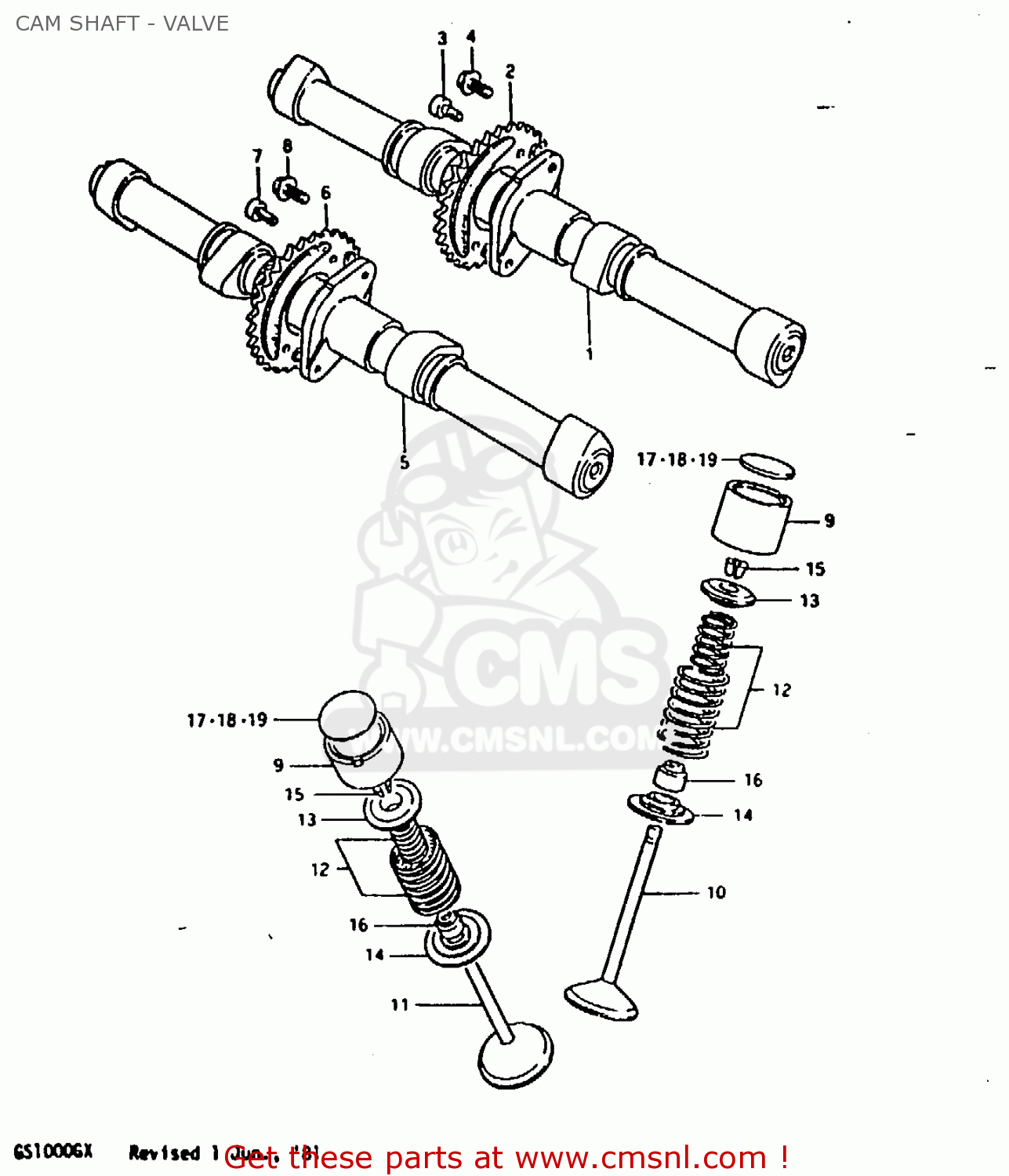

Cam shaft - valve diagram GS1000G 1981 (X) GENERAL EXPORT (E01)

CAM SHAFT - VALVE GS1000G 1981 (X) GENERAL EXPORT (E01)
CAM SHAFT - VALVE GS1000G 1981 (X) GENERAL EXPORT (E01)
CAM SHAFT - VALVE GS1000G 1981 (X) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
1271149000
ref: 1-1
6 SCREW
CAMSHAFT
€ 236.00
1-2
1271149001
ref: 1-2
7 SCREW
CAMSHAFT,INTAKE
1271149001
€ 236.00
2-1
1274149001
ref: 2-1
SPROCKET,INTAKE CAMSHAFT
1274149001
€ 47.50
2-2
1274149002
ref: 2-2
SPROCKET,INTAKE CAMSHAFT
€ 47.00
3
0910606024
ref: 3
6 SCREW
BOLT 6X11
0910606024
€ 2.50
4
0910307001
ref: 4
7 SCREW
BOLT(7X11)
0910307001
€ 2.00
5-1
1272149000
ref: 5-1
6 SCREW
CAMSHAFT,EXHAUST
1272149000
€ 287.00
5-2
1272149001
ref: 5-2
7 SCREW
CAMSHAFT,EXHAUST
1272149001
€ 287.00
6-1
1275149001
ref: 6-1
SPROCKET,EXHAUST CAMSHAFT
1275149001
€ 33.00
6-2
1275149002
ref: 6-2
SPROCKET,EXHAUST CAMSHAFT
1275149002
€ 31.50
7
0910606024
ref: 7
6 SCREW
BOLT 6X11
0910606024
€ 2.50
8
0910307001
ref: 8
7 SCREW
BOLT(7X11)
0910307001
€ 2.00
9
1289145000
ref: 9
TAPPET
1289145000
€ 45.00
10
1291149020
ref: 10
VALVE,INTAKE
1291149020
€ 31.00
11
1291249020
ref: 11
VALVE,EXHAUST
1291249020
€ 60.00
12
1290045810
ref: 12
SPRING SET,VALVE
1290045810
€ 17.00
13
1293145000
ref: 13
RETAINER,VALVE SPRING
1293145000
€ 6.00
14
1293345001
ref: 14
SEAT,VALVE SPRING
1293345001
€ 5.50
15
1293245010
ref: 15
COTTER VALVE
1293245010
€ 2.50
16
0928907002
ref: 16
SEAL,OIL(7X14.4X9)
0928907002
€ 3.00
17-1
1289245000
ref: 17-1
SHIM,TAPPET
1289245000
€ 17.00
17-2
1289245001
ref: 17-2
SHIM,TAPPET
€ 16.50
17-3
1289245002
ref: 17-3
SHIM,TAPPET
€ 17.00
17-4
1289245003
ref: 17-4
SHIM,TAPPET
€ 16.00
17-5
1289245004
ref: 17-5
SHIM,TAPPET
€ 16.50
17-6
1289245005
ref: 17-6
SHIM,TAPPET
€ 17.00
17-7
1289245006
ref: 17-7
SHIM,TAPPET
€ 17.00
17-8
1289245007
ref: 17-8
SHIM,TAPPET
€ 16.00
17-9
1289245008
ref: 17-9
SHIM,TAPPET
€ 16.50
18-1
1289245009
ref: 18-1
SHIM,TAPPET
€ 16.00
18-2
1289245010
ref: 18-2
SHIM,TAPPET
1289245010
€ 17.00
18-3
1289245011
ref: 18-3
SHIM,TAPPET
1289245011
€ 17.00
18-4
1289245012
ref: 18-4
SHIM,TAPPET
1289245012
€ 17.00
18-5
1289245013
ref: 18-5
SHIM,TAPPET
1289245013
€ 16.50
18-6
1289245014
ref: 18-6
SHIM,TAPPET
€ 17.00
18-7
1289245015
ref: 18-7
SHIM,TAPPET
€ 17.00
18-8
1289245016
ref: 18-8
SHIM,TAPPET
€ 17.00
18-9
1289245017
ref: 18-9
SHIM,TAPPET
€ 17.00
19-1
1289245018
ref: 19-1
SHIM,TAPPET
1289245018
€ 16.50
19-2
1289245019
ref: 19-2
SHIM,TAPPET
€ 17.00
20
1280045810
ref: 20
NOT SHOWN
SHIM SET,TAPPET
€ 1,227.00
21
9900069480
ref: 21
NOT SHOWN
CASE
€ 152.50
