TURN SIGNAL LAMP (MODEL T : E39)

GS1000G 1981 (X) GENERAL EXPORT (E01)

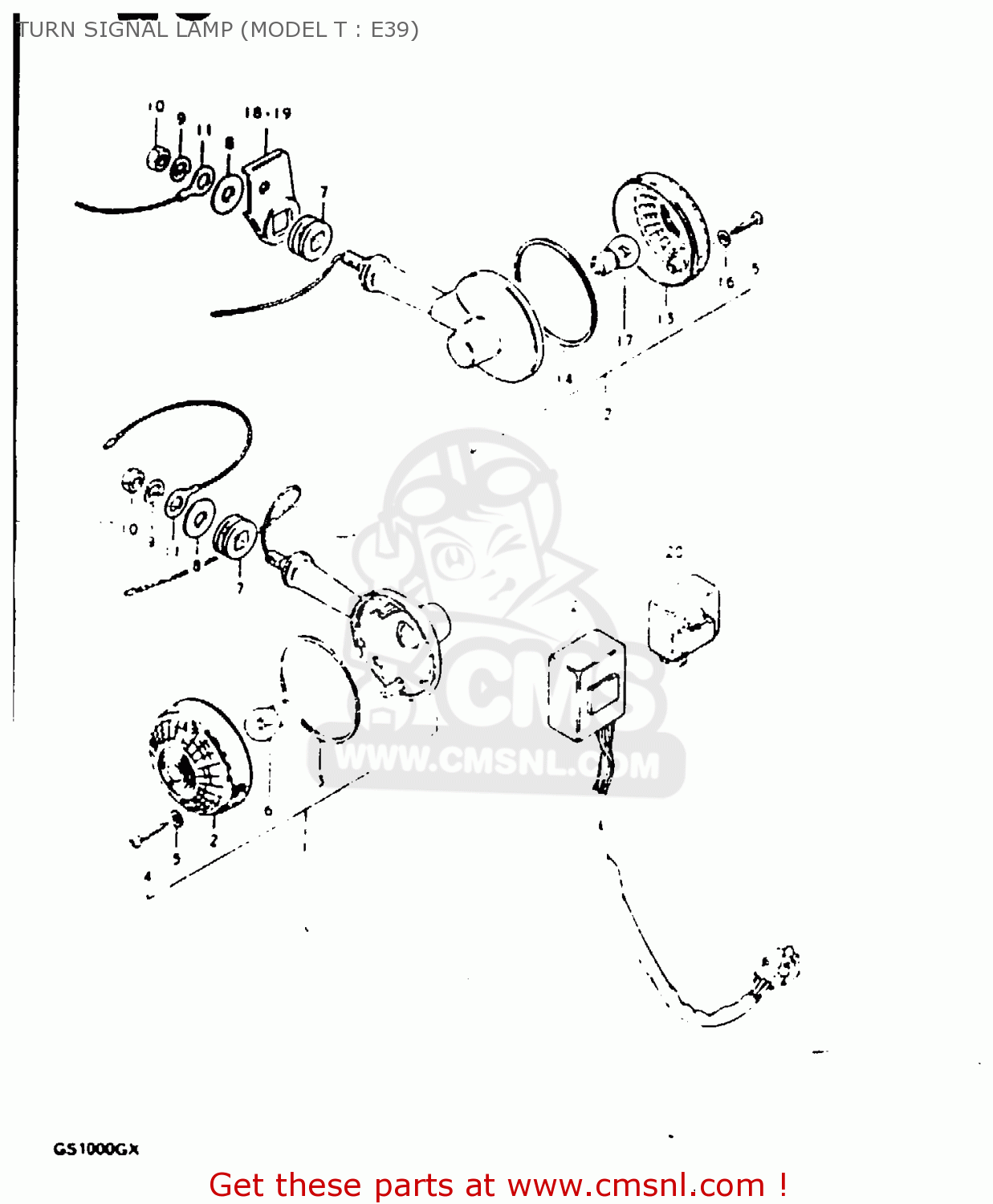

Turn signal lamp (model t : e39) diagram GS1000G 1981 (X) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (MODEL T : E39) GS1000G 1981 (X) GENERAL EXPORT (E01)

TURN SIGNAL LAMP (MODEL T : E39) GS1000G 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3560345611999
ref: 1

LAMP, REAR TURN SIGNAL

€ 0.00

2

3561245611
ref: 2

LENS

€ 11.50

3

3561345010
ref: 3

GASKET (NAS)

€ 7.50

4

0211204308
ref: 4

SCREW (4X30)

€ 1.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112045
ref: 6
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

7

3569032200
ref: 7

CUSHION

€ 38.50

8

0916010006
ref: 8

WASHER (10.5X30X2.3)

€ 2.50

9

0832121108
ref: 9

LOCK WASHER

€ 2.00

10

0831012108
ref: 10

NUT

€ 2.50

11

3666033000
ref: 11

LEAD WIRE,EARTH

€ 5.00

12

3560345611999
ref: 12

LAMP, REAR TURN SIGNAL

€ 0.00

13

3561245611
ref: 13

LENS

€ 11.50

14

3561345010
ref: 14

GASKET (NAS)

€ 7.50

15

0211204308
ref: 15

SCREW (4X30)

€ 1.50

16

3562743010
ref: 16

GASKET (NAS)

€ 2.00

17

0947112045
ref: 17
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

18

4158045000019
ref: 18

BRACKET,RR TURNSIGNAL LAMP,R

€ 12.00

19

4159045000019
ref: 19

BRACKET,RR TURNSIGNAL LAMP,L

€ 16.50

20

3861049231
ref: 20

RELAY ASSY,TURNSIGNAL

€ 71.00

21

3883049200
ref: 21

UNIT,TURN SIGNAL CONTROL

€ 269.50
