FOOTREST
GS1000G 1981 (X) GENERAL EXPORT (E01)

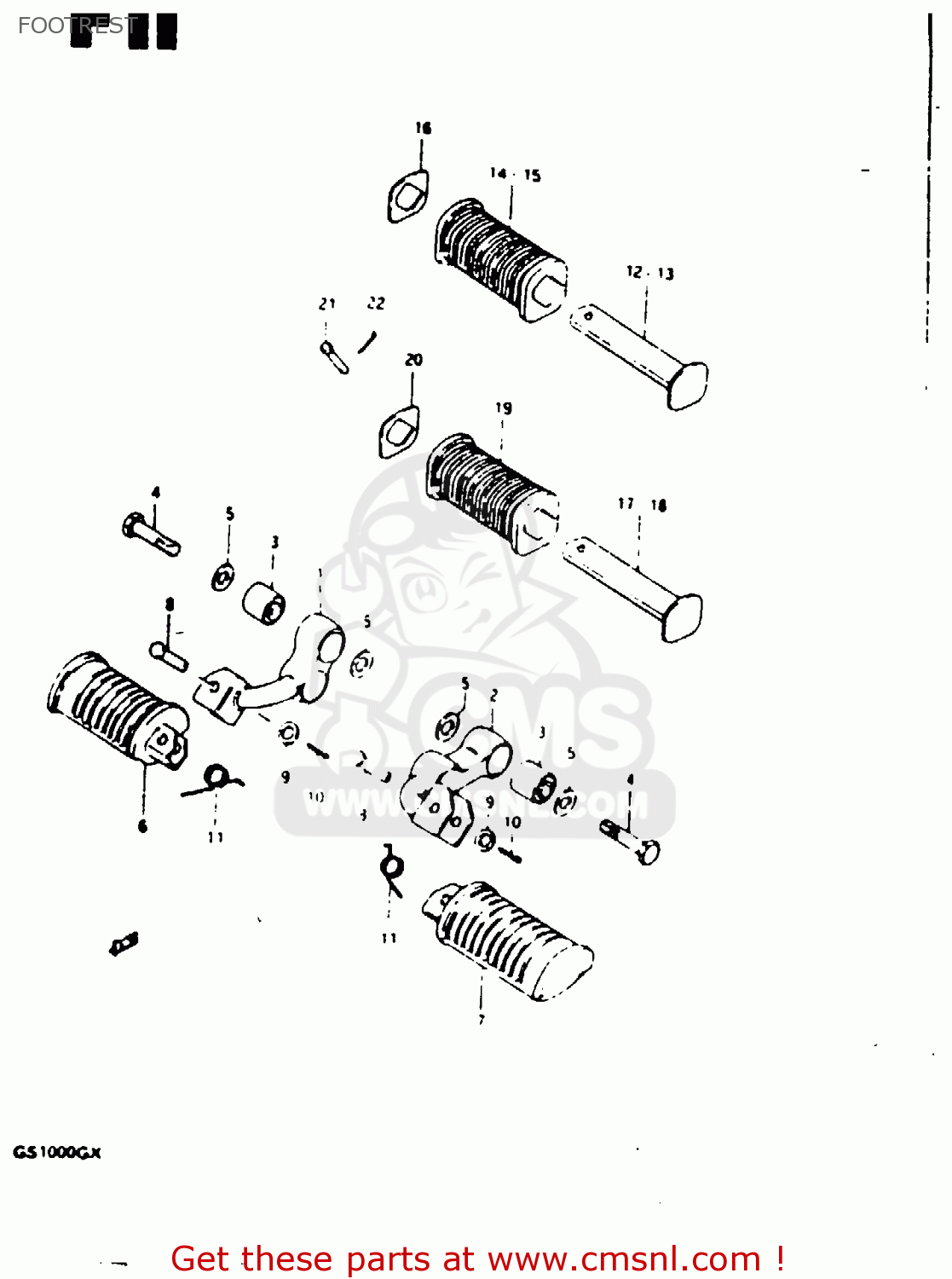

Footrest diagram GS1000G 1981 (X) GENERAL EXPORT (E01)
FOOTREST GS1000G 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
4351045110019
ref: 1
BLACK
BAR,FRONT FOOTREST,RIGHT
€ 28.00
2
4352045110019
ref: 2
BLACK
BAR,FRONT FOOTREST,LEFT
€ 26.50
3
0931910008
ref: 3
BUSH
€ 8.00
4
0910410007
ref: 4
BOLT
€ 3.50
5
0916010013
ref: 5
WASHER (10.1X21X2.3)
€ 2.00
6
4355049002
ref: 6
RUBBER,FRONT FOOTREST
€ 22.50
7
4356049002
ref: 7
FOOTREST
€ 22.50
8
0920008002
ref: 8
PIN
€ 2.00
9
0832211088
ref: 9
WASHER
€ 2.00
10
0411120158
ref: 10
PIN
€ 1.50
11
0944814013
ref: 11
SPRING
€ 3.00
12
4361045000
ref: 12
BAR,REAR FOOTREST
€ 21.50
13
4362045000
ref: 13
BAR,REAR FOOTREST
€ 13.50
14
4361245000
ref: 14
~F.NO.104345
RUBBER,PILLION FOOTREST
€ 15.00
15
4362245000
ref: 15
RUBBER, LH
€ 15.00
16
4363145000
ref: 16
WASHER,REAR FOOTREST RUBBER
€ 16.00
17
4361045001
ref: 17
BAR,REAR FOOTREST,RIGHT
€ 21.50
18
4362045001
ref: 18
F.NO.104346~
BAR,REAR FOOTREST,LEFT
€ 13.50
19
4361245001
ref: 19
RUBBER,PILLION FOOTREST
€ 15.00
20
4363145001
ref: 20
WASHER,PILLION FOOTREST RUBBER
€ 16.00
21
0920006010
ref: 21
PIN
€ 2.50
22
0411120158
ref: 22
PIN
€ 1.50
