FRAME COVER (MODEL T, MODEL X : E22, E25)

GS1000G 1981 (X) GENERAL EXPORT (E01)

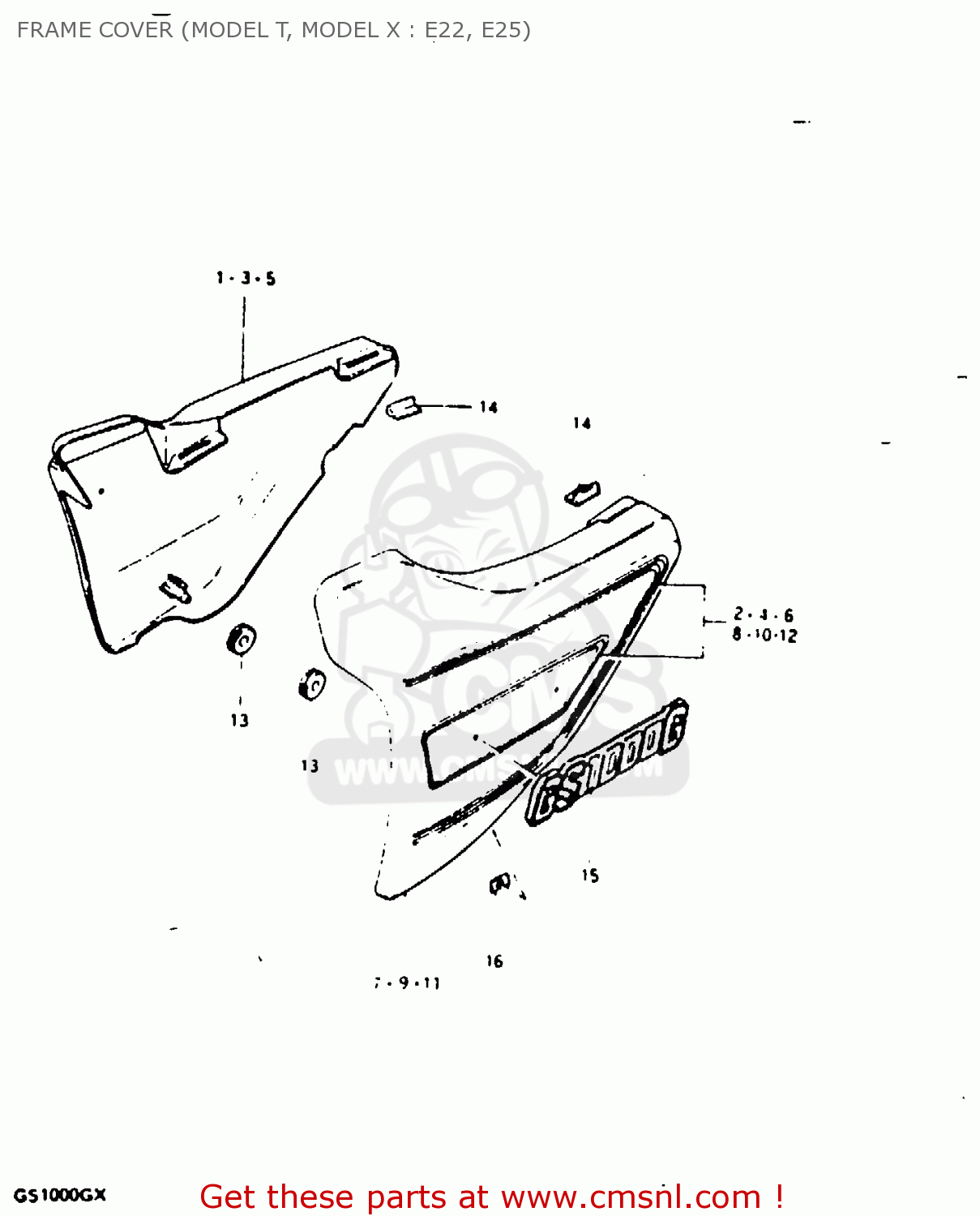

Frame cover (model t, model x : e22, e25) diagram GS1000G 1981 (X) GENERAL EXPORT (E01)

FRAME COVER (MODEL T, MODEL X : E22, E25) GS1000G 1981 (X) GENERAL EXPORT (E01)

FRAME COVER (MODEL T, MODEL X : E22, E25) GS1000G 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

471104514008E
ref: 1

COVER, FRAME RH (BLACK)

€ 89.50

2

681304514071Y
ref: 2

TAPE SET, RH

€ 18.00

3

471104514010E
ref: 3

COVER, FRAME RH (SILVER)

€ 89.50

4

681304514071Y
ref: 4

TAPE SET, RH

€ 18.00

5

471104514005H
ref: 5

COVER, FRAME RH (BLUE)

€ 89.50

6

681304514067N
ref: 6

TAPE SET, RH

€ 0.00

7

472104514008E
ref: 7

COVER, FRAME LH (BLACK)

€ 81.00

8

681404514071Y
ref: 8

TAPE SET, LH

€ 16.00

9

472104514010E
ref: 9

COVER, FRAME LH (SILVER)

€ 81.00

10

681404514071Y
ref: 10

TAPE SET, LH

€ 16.00

11

472104514005H
ref: 11

COVER, FRAME LH (BLUE)

€ 81.00

12

681404514067N
ref: 12

TAPE SET, LH

€ 0.00

13

0932008018
ref: 13

CUSHION

€ 4.00

14

4711745000
ref: 14

CUSHION,FRAME COVER

€ 1.50

15

6813145130
ref: 15

EMBLEM,FRAME COVER

€ 30.00

16

0914803002
ref: 16

NUT

€ 3.00
