CLUTCH
GS1000G 1981 (X) GENERAL EXPORT (E01)

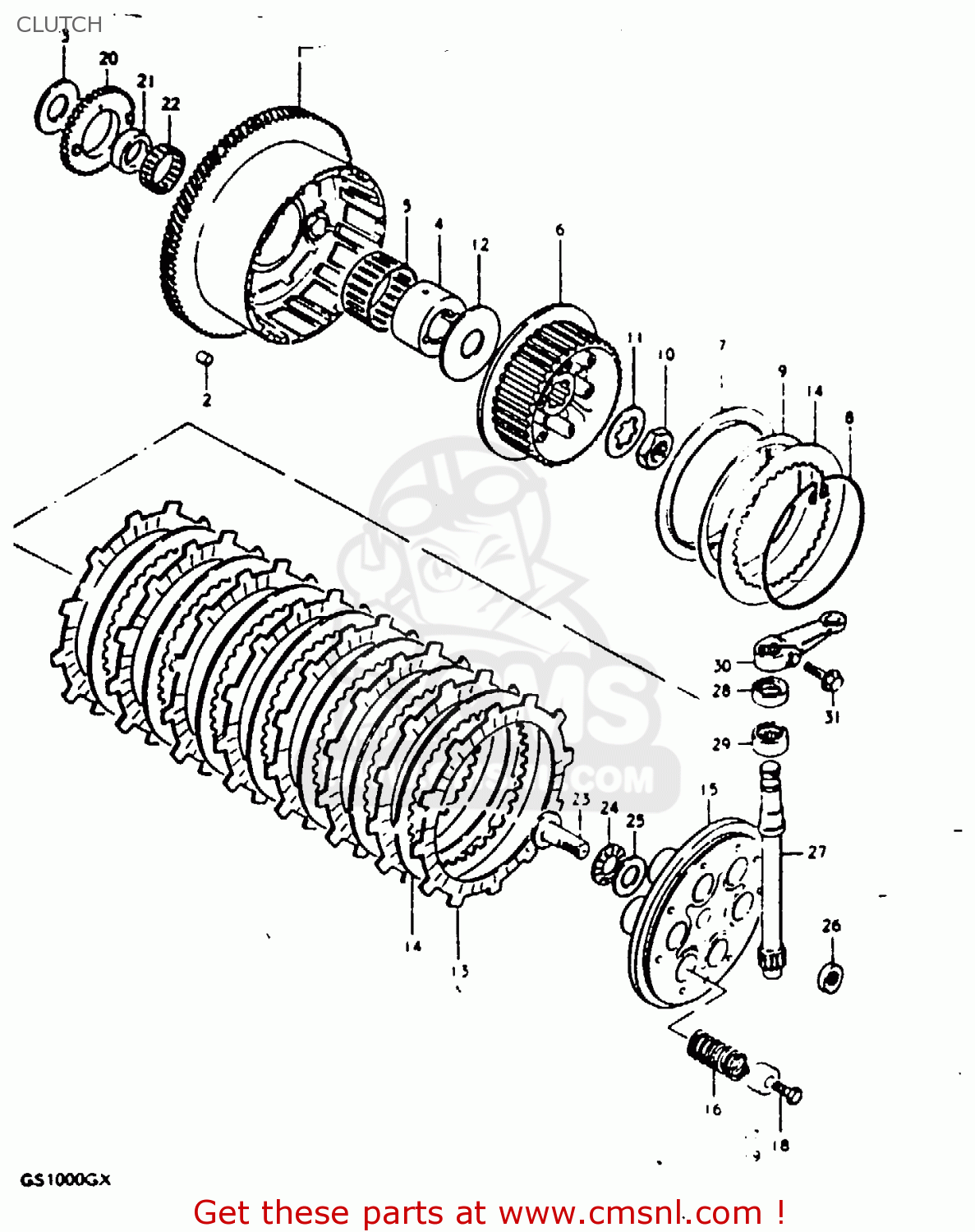

Clutch diagram GS1000G 1981 (X) GENERAL EXPORT (E01)
CLUTCH GS1000G 1981 (X) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120049201
ref: 1-1
MODEL T
GEAR ASSEMBLY,PRIMARY DRIVE
€ 381.50
1-2
2120049202
ref: 1-2
MODEL X
GEAR ASSEMBLY,PRIMARY DRIVE
€ 381.50
2
2121549000
ref: 2
CUSHION,PRIMARY DRIVEN GEAR
€ 3.00
3
0916025023
ref: 3
WASHER
€ 9.50
4
2125145001
ref: 4
SPACER,PRIMARY DRIVEN
€ 65.50
5
0926351001
ref: 5
BEARING
€ 37.00
6-1
2141149202
ref: 6-1
MODEL T
HUB,CLUTCH SLEEVE
€ 151.50
6-2
2141149203
ref: 6-2
MODEL X
HUB,CLUTCH SLEEVE
€ 151.50
7
2147149100
ref: 7
SEAT,WAVE WASHER
€ 8.00
8
2148145100
ref: 8
RING,STOPPER
€ 5.00
9
0916400003
ref: 9
WASHER
€ 9.00
10
0914024004
ref: 10
NUT
€ 4.50
11
0916725007
ref: 11
WASHER,LOCK
€ 7.50
12
0916025022
ref: 12
WASHER(25X66X3.5)
€ 13.50
13
2144149200
ref: 13
PLATE,CLUTCH DRIVE (MCA)
€ 16.00
14
2145149200
ref: 14
PLATE,CLUTCH DRIVEN (NAS)
€ 6.00
15
2146249010
ref: 15
PLATE,CLUTCH PRESSURE
€ 36.00
16-1
0944019003
ref: 16-1
MODEL T
SPRING
€ 5.50
16-2
0944019013
ref: 16-2
MODEL X
SPRING
€ 5.50
17
0918006088
ref: 17
SPACER
€ 5.50
18
0110706308
ref: 18
BOLT
€ 2.50
19
0916006020
ref: 19
WASHER
€ 2.00
20
1632149990
ref: 20
GEAR,OIL PUMP DRIVE
€ 78.50
21
1632545001
ref: 21
SPACER,OIL PUMP DRIVE GEAR
€ 13.50
22
0926336002
ref: 22
BEARING(36X40X10)
€ 24.50
23
2316549010
ref: 23
RACK,CLUTCH RELEASE
€ 18.50
24
0926315003
ref: 24
BEARING(15X28X2)
€ 7.00
25
0916015015
ref: 25
WASHER
€ 4.00
26
0928810003
ref: 26
OIL SEAL
€ 0.00
27
2326149001
ref: 27
PINION,CLUTCH RELEASE
€ 28.00
28
0928512002
ref: 28
OIL SEAL
€ 7.00
29
0926315012
ref: 29
BEARING(15X22X12)
€ 11.50
30
2327149100
ref: 30
ARM,CLUTCH RELEASE
€ 26.00
31
0151706208
ref: 31
BOLT,REAR
€ 2.50
